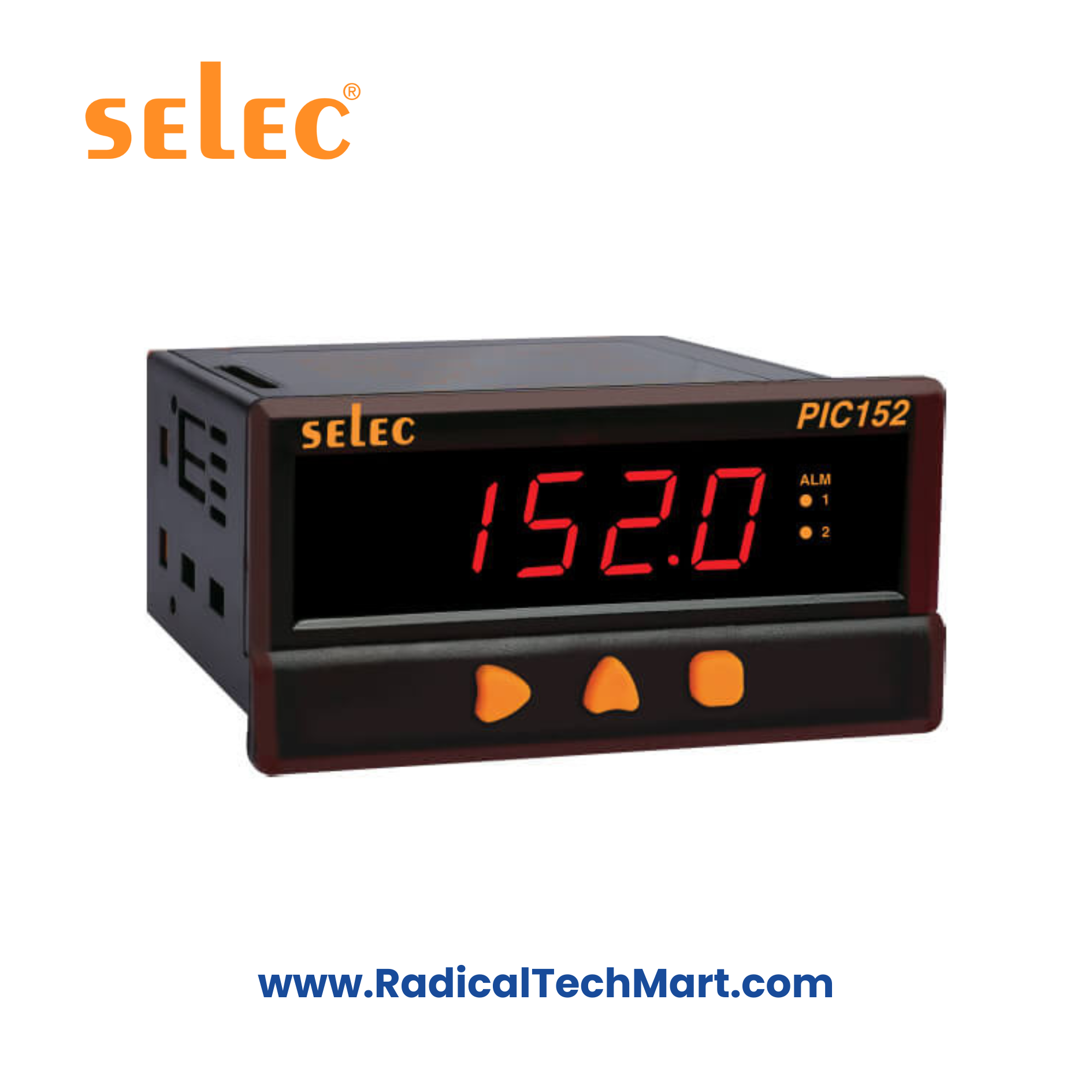

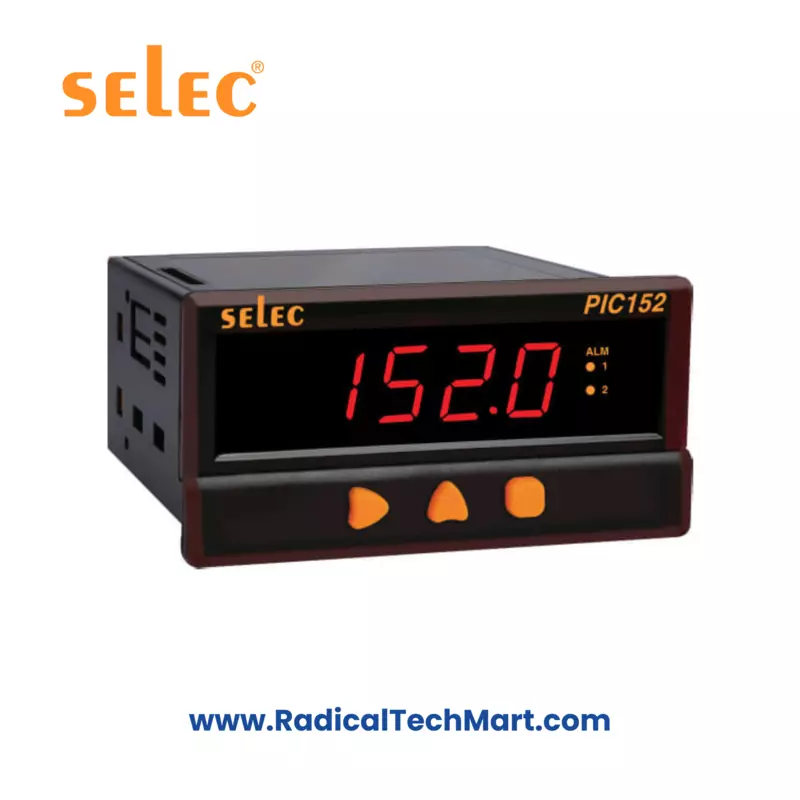

The Selec PIC152A-VI is a universal 4-digit process indicator designed for precise monitoring of temperature, pressure, level, flow, and other process signals. It supports TC/RTD inputs, DC analog inputs, two alarms, retransmission output, 24V sensor supply, and RS485 Modbus (optional). With a 48×96 mm panel size and bright LED display, it is ideal for industrial control panels.

PIC152A-VI_Datasheet

⭐ KEY FEATURES (from Page 1)

• 4-digit, 7-segment LED display (12.7 mm height)

• Alarm ON indicators (2 Nos.)

• Universal input:
  TC (J, K, T, R, S), RTD (PT100), Analog (mV/V/mA)

• Two alarm outputs (SPDT Relays)

• Retransmission output: 0/4–20 mA, 0–5/10 V

• 24V DC sensor supply (30 mA)

• °C / °F selectable

• Programmable alarm modes (High/Low/Band/Fail)

• Hysteresis 0.1–99.9°

• Automatic or latched relay behaviour

• Optional RS485 Modbus RTU


TECHNICAL SPECIFICATIONS

Display Specifications

Parameter	Value
Display	4-digit, 7-segment LED
Display Height	12.7 mm
LED Indications	Alarm ON (2 numbers)

Input Specifications

Parameter	Value
Supported Inputs	TC (J, K, T, R, S), RTD PT100, DC Analog (−5–56 mV, 0–10 V, 0/4–20 mA)
Resolution	1/0.1° for TC/RTD; 1/0.1/0.01/0.001 for analog
Accuracy
– TC: ±1°C or 0.25% FS
– R/S: ±2°C or 0.5% FS
– RTD: ±1°C or 0.1% FS
– Analog: ±0.5% FS ±1 digit
Temperature Units	°C / °F

Output Specifications

Output Type	Rating
Relay Outputs	SPDT Relays: 10A NO; 5A NO/NC @ 250VAC / 28VDC
Retransmission	0/4–20 mA, 0–5 V, 0–10 V
Sensor Supply	24V DC, 30 mA

Alarm Function Specifications

Parameter	Value
Number of Alarms	2
Alarm Modes	High, Low, Band, Fail output, Fault diagnosis
Hysteresis	0.1–99.9°
Relay Action	Automatic or Latched
Annunciator	Programmable

Electrical & Environmental

Parameter	Value
Supply Options	90–270 VAC/DC; Optional 24V DC
Power Consumption	6 VA max
Operating Temp	0–50°C
Storage Temp	−20 to +75°C
Humidity	85% RH non-condensing

Mechanical Specifications

Parameter	Value
Panel Size	48 × 96 mm
Dimensions	A=98, B=50, C=76, D=45, E=3, F=46, G=92 mm
Weight	220 g

Terminal Connections

• Full wiring diagrams are provided for 230V supply and 24V supply.

• Terminals include:
  – Input terminals (TC/RTD/Analog)
  – Two alarm relays
  – Retransmission terminals
  – 24V sensor supply
  – RS485 terminals (A+, B–)


Compliance

Complies with IEC 61326-1 EMI/EMC requirements:

• ESD Immunity: IEC 61000-4-2

• Surge Immunity: IEC 61000-4-5

• Radiated Susceptibility: IEC 61000-4-3

• Conducted Susceptibility: IEC 61000-4-6

• Voltage dips/interruptions

• CISPR-11 emissions


Applications

• Temperature indication (TC/RTD)

• Pressure transmitter indication

• Flow/level transmitters (4–20 mA)

• Industrial machinery

• Control panels

• HVAC monitoring

• Food/pharma process monitoring

What’s in the Box?

• Selec PIC152A-VI Process Indicator

• Mounting clamps

• User manual

• Warranty leaflet

FAQs

Q1. Does PIC152A-VI support retransmission output?
Yes—0/4–20 mA or 0–5/10 V.

Q2. Does it have alarm outputs?
Yes—two SPDT relays.

Q3. Can it work on a 24V supply?
Yes—model PIC152A-VI-C-24V.

Q4. Is RS485 Modbus available?
Yes—optional in model PIC152A-VI-C-24V.

Q5. Are TC, RTD, & analog signals all supported?
Yes—fully universal input support.

Q6. What is the panel cutout size?
92 × 46 mm.
