Selec RPS60 DIN Rail Mount 60W Power Supply

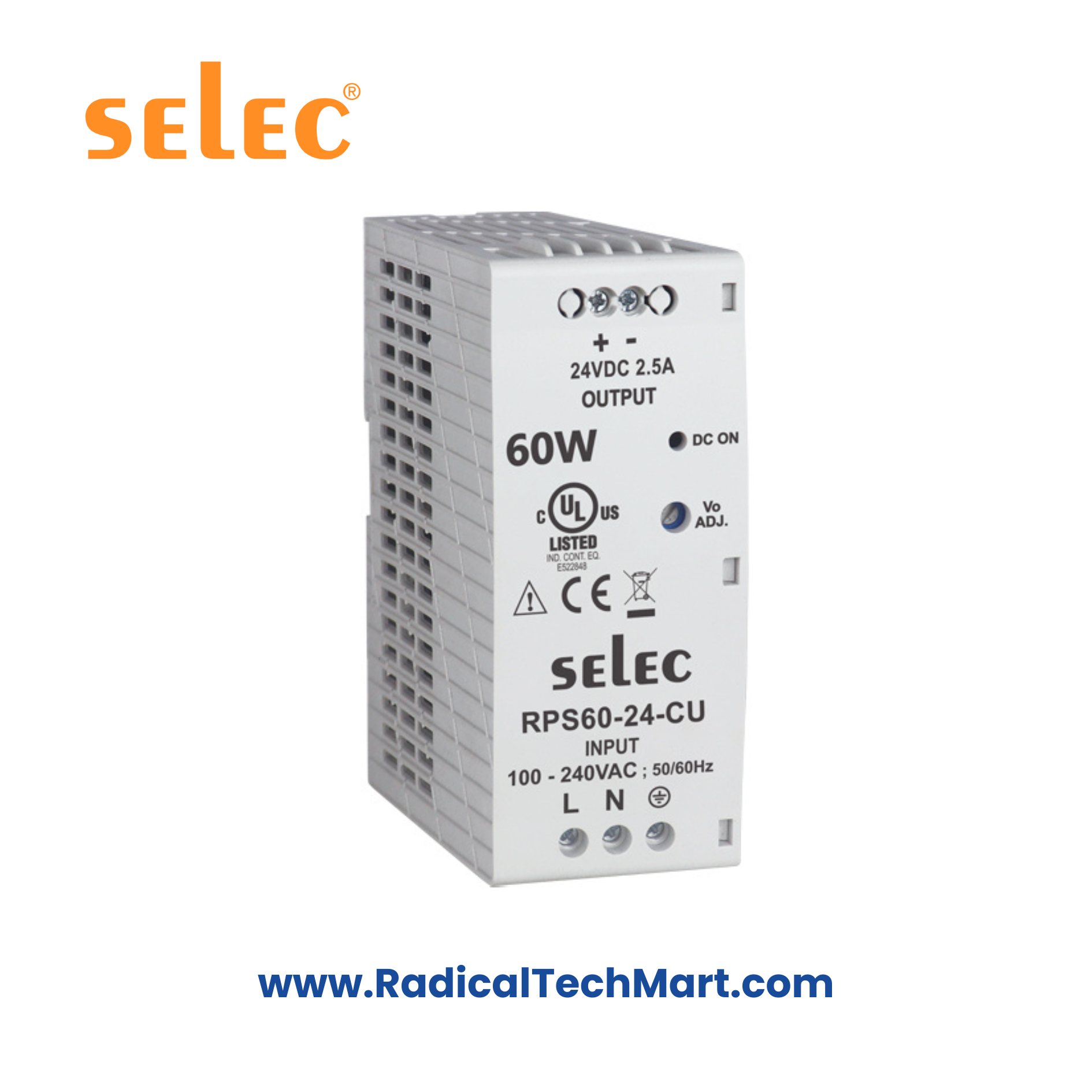

Selec RPS60-24-CU Industrial Power Supply – 24V DC, 2.5A, 60W, DIN-Rail SMPS
60W industrial SMPS delivering 24V DC at 2.5A, with 90–264VAC input range, up to 87% efficiency, full electronic protections, UL508 approval, and compact DIN-rail mounting for automation panels.
Customize
Share :
The Selec RPS60-24-CU is a rugged 60W DIN-rail switching power supply engineered for industrial automation, PLCs, motion control, sensors, and instrumentation loads. It offers a regulated 24V DC output at 2.5A, universal AC/DC input, high efficiency, and multiple protection features, including overload, overvoltage, short-circuit, and over-temperature protection.
KEY FEATURES
24V DC 2.5A output (60W)
Universal 90–264 VAC / 127–370 VDC input range
Efficiency up to 87%
Overload (>110%), short-circuit, overvoltage & over-temperature protection
Natural convection cooling
UL508 approved (E522848)
Low ripple & noise (<1% Vout)
Output adjustment 24–28V
−25°C to +70°C operating range (with derating above 50°C)
EMC compliant to CISPR32, IEC61000-4 series
TECHNICAL SPECIFICATIONS
Output Specifications
| Parameter | Value |
|---|---|
| Nominal DC Voltage | 24V DC |
| Rated Current | 2.5A |
| Current Range | 0–2.5A |
| Rated Power | 60W |
| Ripple & Noise | <1% of Vote |
| Voltage Adjustment Range | 24–28V |
| Voltage Tolerance | ±1% |
| Line Regulation | ±1% |
| Load Regulation | ±1% |
| Turn-On Time | <1 sec @ 230 VAC / <3 sec @ 115 VAC |
| Hold-Up Time | ≥60 ms at 230 VAC / ≥15 ms at 115 VAC |
| Rise Time | <100 ms |
Input Specifications
| Parameter | Value |
|---|---|
| Voltage Range | 90–264 VAC / 127–370 VDC |
| Frequency | 50 / 60 Hz |
| Efficiency | Up to 87% |
| AC Current | 1.2A at 115VAC; 0.8A at 230VAC |
| Inrush Current | <48A at 264 VAC, 25°C |
| Leakage Current | <1 mA at 264 VAC |
Protection Features
| Protection | Description |
|---|---|
| Overload | >110% rated output, hiccup mode, auto-recovery |
| Overvoltage | 28.5–33.5 VDC shut-down, latched (AC recycle required) |
| Short-Circuit | Hiccup mode, auto-recovery |
| Over-Temperature | Shutdown at ~120°C, restart after <90°C with AC recycle |
Environmental Conditions
| Parameter | Value |
|---|---|
| Operating Temperature | −25°C to +70°C (derate linearly above 50°C to 50% at 70°C) |
| Storage Temperature | −40°C to +85°C |
| Humidity | 5–95% RH (non-condensing) |
| Altitude | 2000 m |
| Cooling | Natural convection |
| Vibration | 10–500 Hz, 2G, 60 min each axis |
Safety & EMC Compliance
| Category | Standard | Level |
|---|---|---|
| Conducted Emission | CISPR32 | Class A |
| Radiated Emission | CISPR32 | Class A |
| ESD | IEC61000-4-2 | Level 4 |
| EFT/Burst | IEC61000-4-4 | Level 3 |
| Surge | IEC61000-4-5 | Level 3 |
| Conducted Susceptibility | IEC61000-4-6 | Level 3 |
| Voltage Dips & Interruptions | IEC61000-4-11 | Criteria A/B |
| Safety | UL508 (E522848), IEC 62368-1 design |
Mechanical Details
| Parameter | Value |
|---|---|
| Dimensions | 43 × 109.8 × 102.7 mm (W×H×D) |
| Weight | 285 g |
| DIN Rail | 35 mm standard |
| Connectors | GOOSVN GS007S-7.5 (input) / GS007S-5.08 (output) |
| Connector Torque | 0.5 Nm |
Terminal Connections
L, N – AC Input
+V, –V – 24V DC Output
PE – Protective Earth
Derating Curve
Full 60W output available from −25°C to +50°C
Derates linearly to 50% at +70°C
APPLICATIONS
PLCs, DCS & automation controllers
Industrial sensors, actuators & relays
Motion control & stepper/servo I/O supply
Building automation, access control
Control panels & MCC cabinets
SCADA & instrumentation power supply
WHAT’S IN THE BOX
Selec RPS60-24-CU SMPS
DIN-rail mounting clip
User instructions
FAQS
Q1. What is the output rating?
24V DC, 2.5A (60W).
Q2. Does it support AC and DC input?
Yes—90–264 VAC / 127–370 VDC.
Q3. What protections are included?
Overload, overvoltage, short circuit, and over-temperature.
Q4. Is it UL listed?
Yes—UL508 approved (E522848).
Q5. What is the operating temperature range?
−25°C to +70°C with derating above +50°C.
