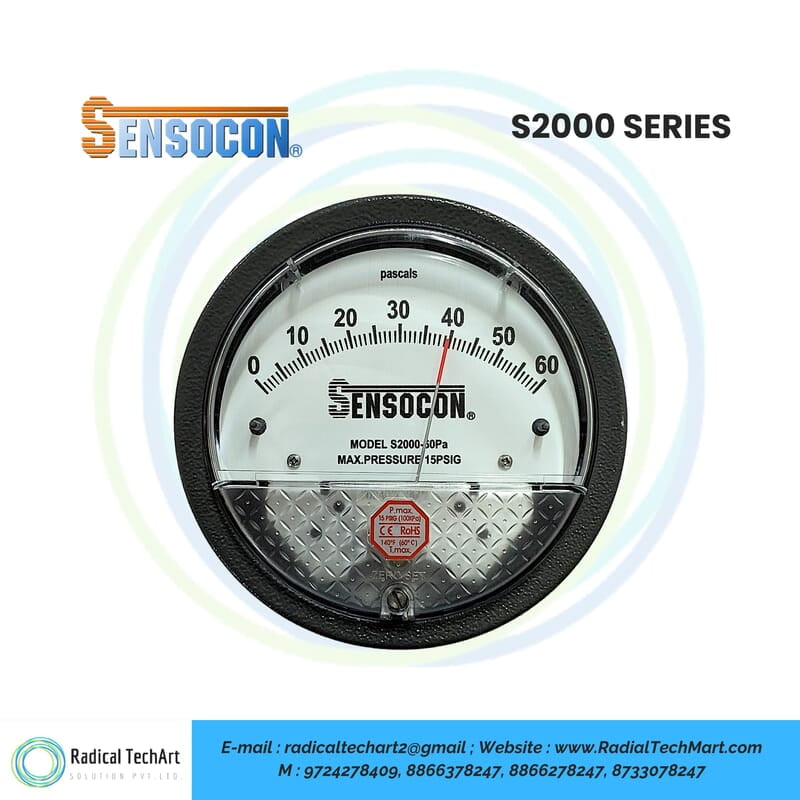

Sensocon S2000 Series Magnehelic Differential Pressure gauge
The Series S2000 differential pressure gauges are low cost, diaphragm operated, mechanical differential pressure gauges that may be used in all applications where the Dwyer® Magnehelic® brand gages may be used. The Sensocon® Series S2000 differential pressure gauge can be used in applications for measuring positive, negative, or differential pressure with an accuracy of 2%. Standard applications include monitoring filter status, duct static pressure, room pressure, fan or blower pressure, paint booths, dust collectors, and cabinet purging along with many others.
Mounts in Industry Standard Holes
Accuracy 2%
Die Cast Aluminum Housing
Specifications
Pressure Limits: -20" Hg to 15 PSI (-0.677 bar to 1.034 bar)
Media compatibility: Air and compatible gases
Accuracy: +/- 2% full scale (+/- 3% on -0 and +/- 4% on -00) throughout range at 70°F (21°C)
Temperature Ranges: 20° to 140°F (-7° to 60°C)
Housing Material: Die cast aluminum case and bezel, with acrylic cover
Process Connection: 1/8" female NPT duplicate high and low pressure taps - one pair side and one pair back.
Weight: 1 lb 2 oz (510 g)
Accessories: Two 1/8" NPT barbed fittings, two 1/8" NPT plugs, and three mounting tabs and screws
Warranty: 2 years
Approvals: RoHS, CE
