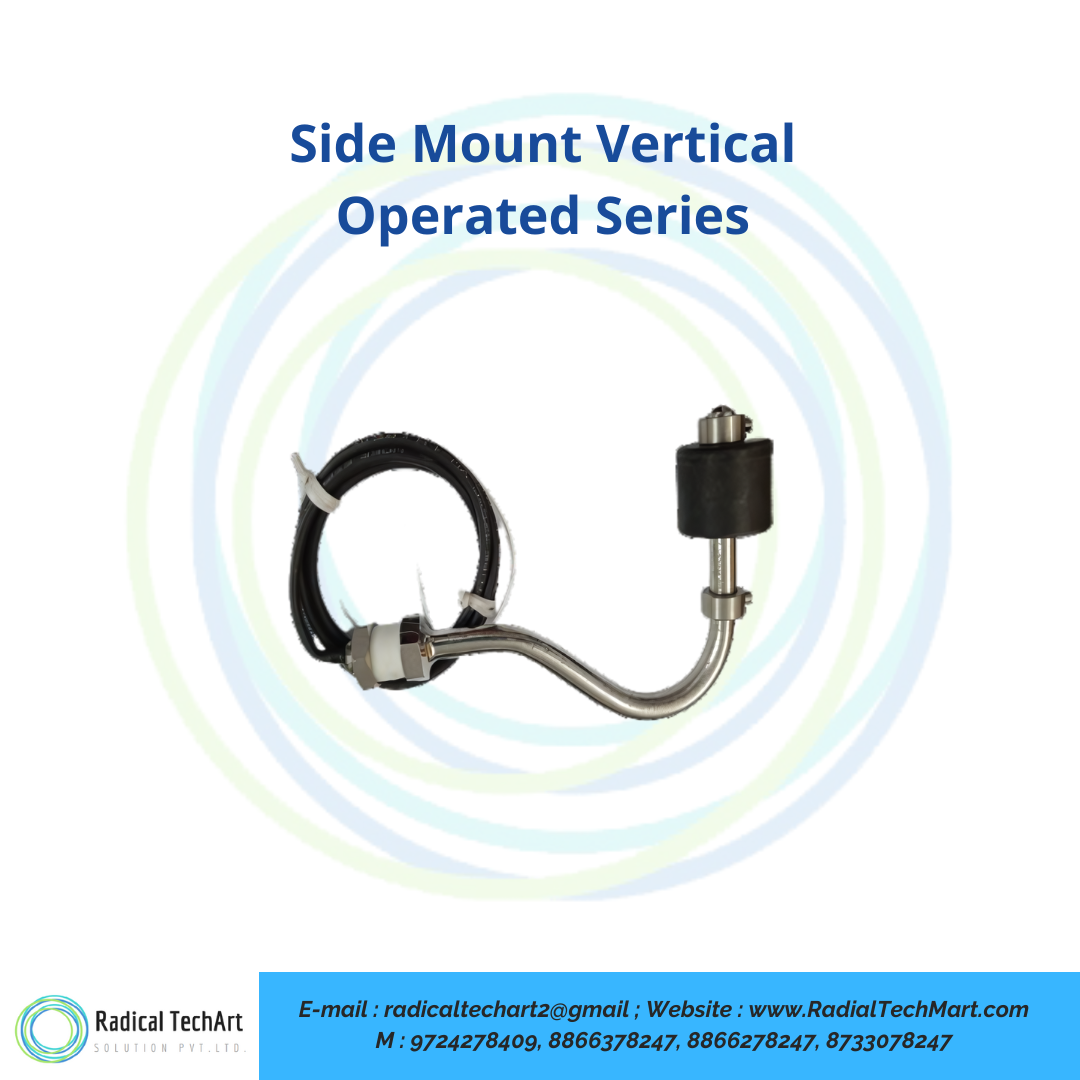

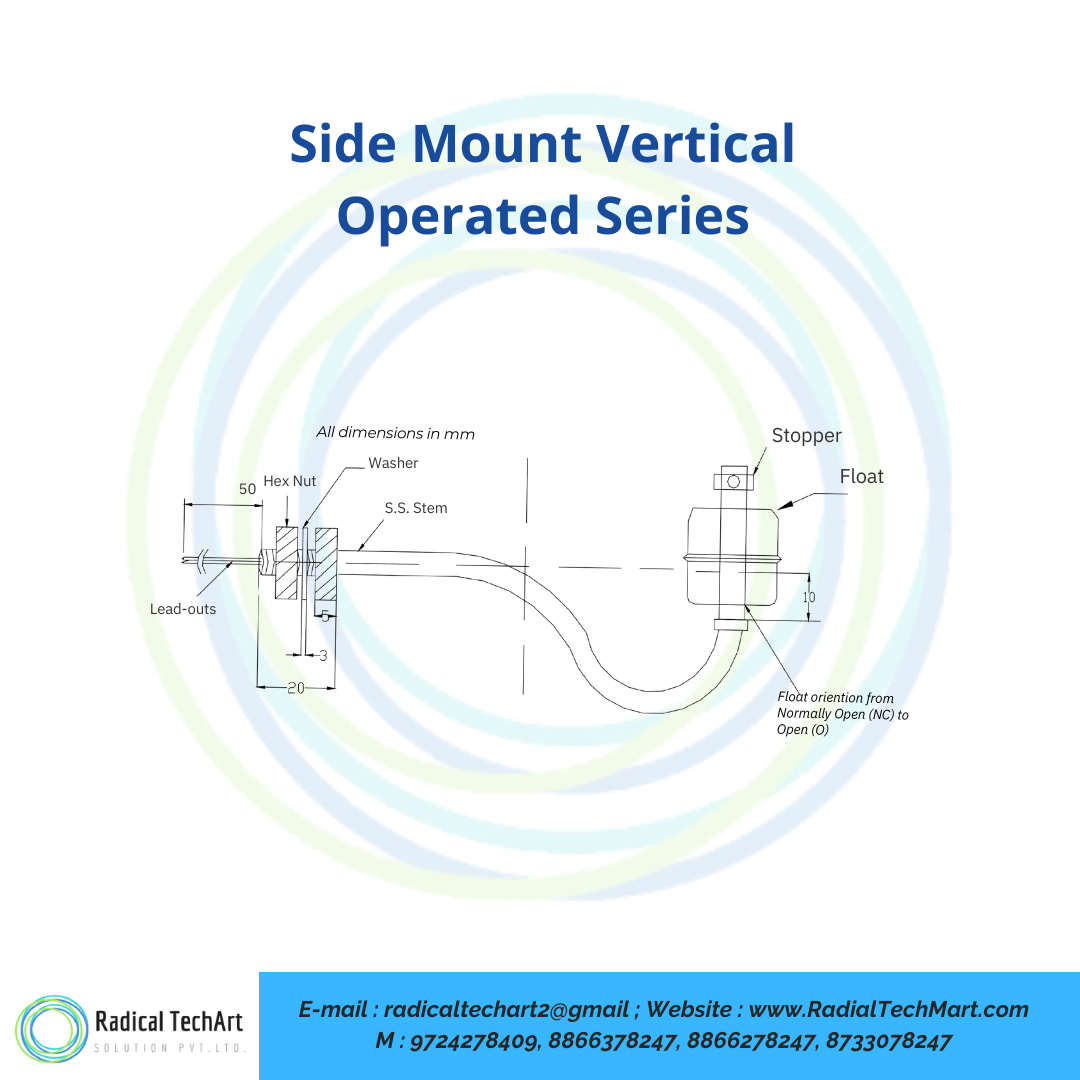

Side Mount Vertical Operated Series (S-shape)
₹0.00
Product Details
Compact, internal, side mount device. The horizontal mounting & vertical switch action combines the advantages of better accuracy for vertical float switch and compactness for horizontal float switch. The devices are available in full SS construction, with stem & float In SS ,or hybrid version of SS Stem and plastic floats . Plastic floats can be made available in Nylon or Polypropylene as per application demands.
Typical application includes, Boiler float switch for low level coil protection, where switching band is premium.
Standard mounting is M10 and can be customized to M16 as per application. Versions can be directly interfaced with contactor loads. Switches can also be customized for multiple switching options as per user & application demand. Switching level obtained is close to tank hole.
Applications:
-Level sensing in industrial chiller units
- Auto-Claves R D
- Water treatment plants and many more
- Industrial process units
