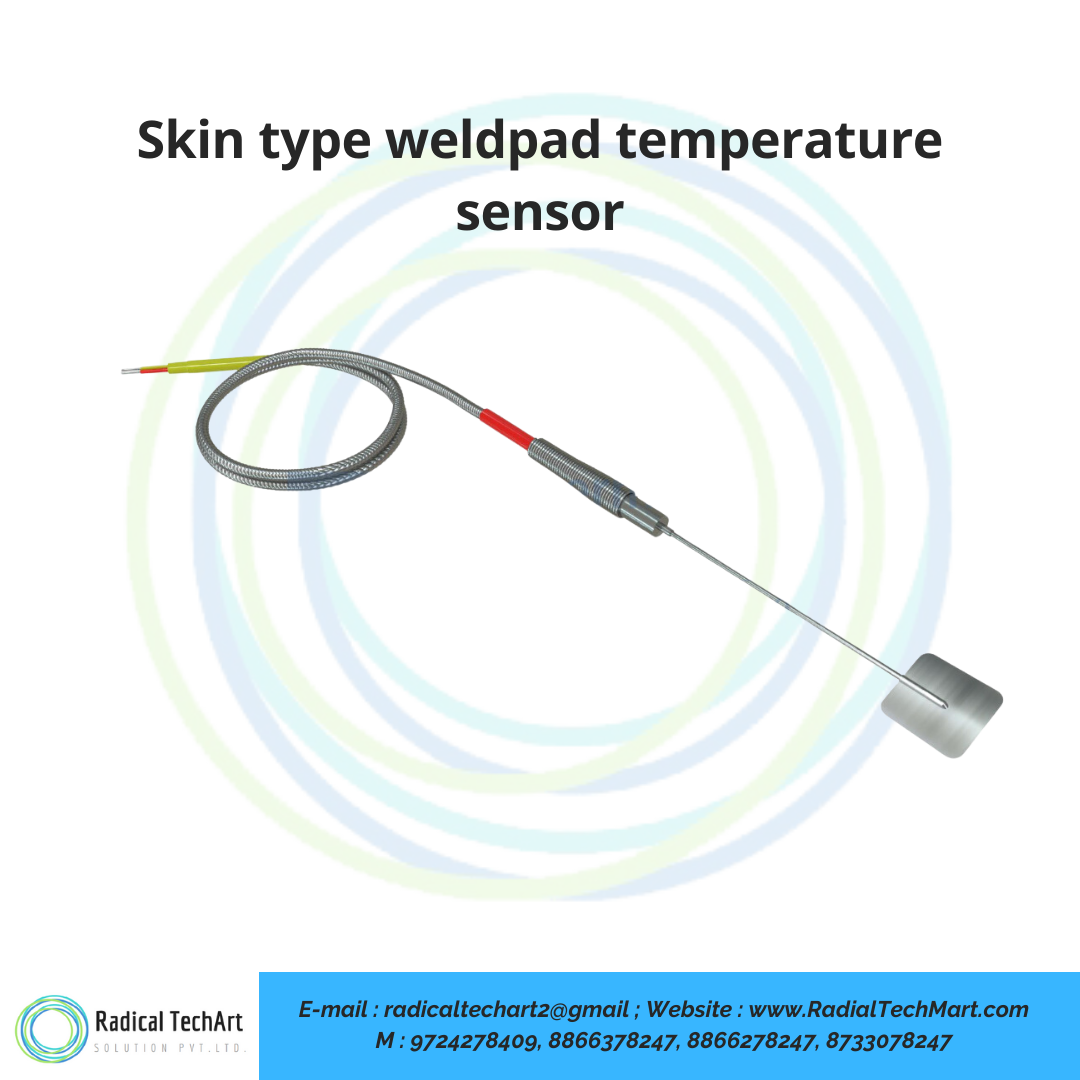

Skin Type Weldpad Thermocouple for Pipe and Tube Surface Temperature

A. Product Overview

Skin type weldpad temperature sensor is a thermocouple probe used for accurate surface temperature measurement. It is designed to measure the temperature of metal surfaces without inserting the sensor inside the process.

The sensor is commonly used where surface temperature is important for quality control, safety monitoring and process performance. It can be used on pipes, tubes, tanks, vessels, heaters, furnaces, machine bodies and other metal surfaces.

The weldpad acts as a mounting base for the sensor. It is welded directly to the surface where temperature needs to be measured. After that, the skin type thermocouple is fixed on the weldpad using a screw, clamp or suitable mounting arrangement. This ensures better thermal contact between the sensor and the surface.

This sensor is available in K Type, J Type, E Type and T Type options. It can be supplied with SS304 or SS316 weldpad material, sheath diameters such as 1 mm, 1.5 mm, 2 mm, 3 mm, 4.5 mm and 6 mm, wire length from 0.5 meter to 10 meter and grounded or ungrounded junction options.

B. Working Principle

Skin type weldpad temperature sensor works on the thermocouple principle. It contains two dissimilar metal wires joined together at the measuring junction. When this measuring junction is exposed to heat, it produces a small voltage signal.

This voltage changes according to the surface temperature. The signal is sent to a temperature controller, indicator, PLC, data logger or monitoring system, where it is converted into a temperature reading.

In this sensor, the weldpad is welded to the required surface. The thermocouple is then attached to the weldpad so that heat from the surface is transferred to the thermocouple junction. Because the sensor is in direct contact with the surface through the weldpad, it responds quickly to temperature changes.

A grounded junction gives faster response because the sensing junction has direct contact with the sheath. An ungrounded junction provides better electrical isolation and is useful where electrical noise or signal interference may be present.

C. Why It Is Used

Skin type weldpad temperature sensors are used when surface temperature measurement is required without drilling into the process or using a thermowell. They provide a practical and reliable method for monitoring surface temperature in industrial environments.

It is used because it helps in:

Measuring surface temperature of pipes, tubes and tanks
Monitoring furnace tube and heater surface temperature
Checking machine body and equipment surface temperature
Improving process safety and quality control
Getting fast response in surface temperature applications
Providing strong mounting through welded pad installation
Improving thermal contact between sensor and surface
Reducing installation difficulty compared to inserted probes
Supporting temperature monitoring in high temperature areas
Providing reliable measurement in manufacturing and process industries

This sensor is preferred where surface temperature is critical and the sensor needs a secure mechanical mounting.

D. Suitable Buyers

Skin type weldpad temperature sensors are suitable for:

Manufacturing industries
Automotive industries
Aerospace industries
Chemical plants
Petrochemical plants
Oil and gas industries
Furnace and heater manufacturers
Boiler and heat exchanger users
Power plants
Process equipment manufacturers
Machine builders and OEMs
Industrial maintenance teams
Temperature controller panel builders
Quality control departments
Automation and instrumentation contractors

This product is especially useful for buyers who need surface temperature measurement on pipes, tanks, vessels, furnaces, heaters, machines and metal parts.

FAQ

1. What is a skin type weldpad temperature sensor?

A skin type weldpad temperature sensor is a thermocouple sensor used to measure surface temperature. It is mounted on a welded metal pad to provide direct contact with the surface.

2. Where is a skin type thermocouple used?

It is used on pipes, tubes, tanks, vessels, heaters, furnaces, boilers, machine bodies and metal surfaces where surface temperature measurement is required.

3. What is the function of the weldpad?

The weldpad provides a secure mounting point for the thermocouple. It also improves thermal contact between the sensor and the surface, which helps improve temperature measurement accuracy.

4. How does this sensor work?

The thermocouple junction senses heat from the surface through the weldpad. It generates a small voltage signal based on temperature, and this signal is converted into a temperature reading by a controller or indicator.

5. Which thermocouple types are available?

Common options include K Type, J Type, E Type and T Type thermocouples.

6. What is the temperature range?

The typical temperature range is from -50°C to 600°C, depending on sensor construction, sheath diameter, cable insulation and application conditions.

7. Which weldpad materials are available?

Common weldpad materials include SS304 and SS316. SS316 is preferred where better corrosion resistance is required.

8. What sheath diameters are available?

Common sheath diameter options include 1 mm, 1.5 mm, 2 mm, 3 mm, 4.5 mm and 6 mm.

9. Can the wire length be customized?

Yes, the wire length can be supplied from 0.5 meter to 10 meter or as per application requirement.

10. What is the difference between grounded and ungrounded junction?

Grounded junction provides faster response because the junction is connected to the sheath. Ungrounded junction provides better electrical isolation and is useful in applications where signal interference may occur.

11. Is this sensor suitable for high temperature applications?

Yes, it is suitable for many high temperature surface measurement applications, depending on thermocouple type, sheath material and cable insulation.

12. Why choose a weldpad type sensor instead of a normal probe?

A weldpad type sensor is better when surface temperature measurement is required and the sensor cannot be inserted into the process. It provides secure mounting, better surface contact and faster response for surface temperature monitoring.
