Product Summary:

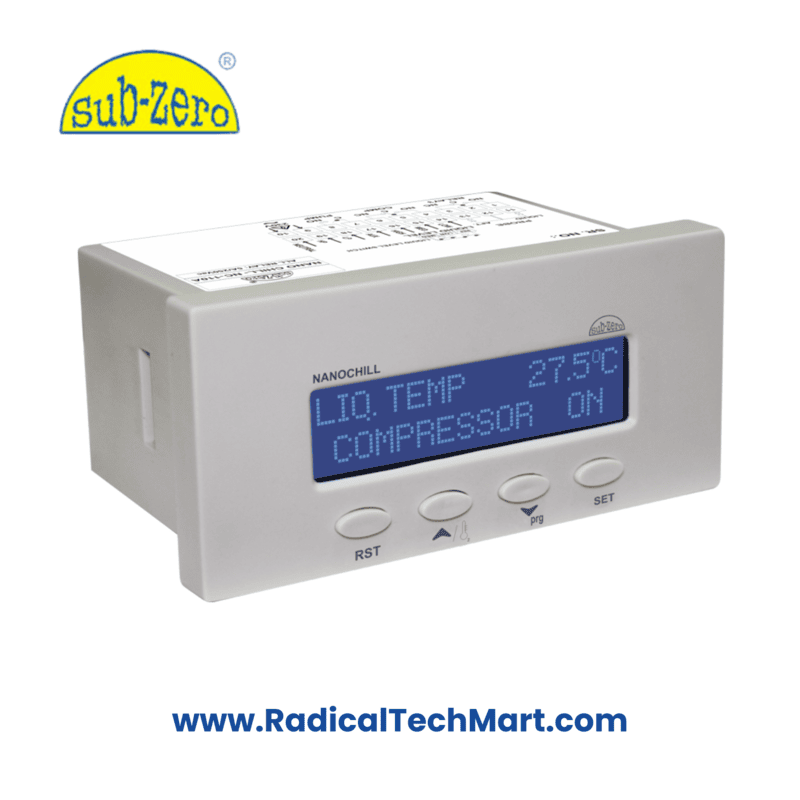

The NC-110A is a digital temperature controller designed for high-precision temperature measurement and control using an NTC probe. Featuring a 16x2 LCD display and flush panel mounting, it is ideal for industrial and commercial HVAC, refrigeration, and automation systems.
Key Features:
Temperature Range: -30°C to +50°C
Operating Temperature: 5°C to 50°C (non-condensing)
Accuracy: ±1°C; Probe Tolerance: ±0.3°C at 25°C
Display: 16x2 LCD for clear visibility
Resolution: 0.5°C
Data Storage: Non-Volatile EEPROM Memory
Input: NTC Probe, SZ-N75
Power Supply: 230Vac ±20%, 50Hz
Mounting: Flush panel mounting
Terminal: Plugable screw terminal blocks
Applications:
Cold Storage Rooms
HVAC Systems
Pharmaceutical Chambers
Industrial Refrigeration
Food Processing Units
Product Benefits:
Easy installation with plug-in terminals
Accurate and stable temperature monitoring
Non-volatile memory retains settings after power failure
Compact design with flush panel fit
LCD screen for better readability in various environments
Product Summary:
The NC-110A is a digital temperature controller designed for high-precision temperature measurement and control using an NTC probe. Featuring a 16x2 LCD display and flush panel mounting, it is ideal for industrial and commercial HVAC, refrigeration, and automation systems.
Key Features:
Temperature Range: -30°C to +50°C
Operating Temperature: 5°C to 50°C (non-condensing)
Accuracy: ±1°C; Probe Tolerance: ±0.3°C at 25°C
Display: 16x2 LCD for clear visibility
Resolution: 0.5°C
Data Storage: Non-Volatile EEPROM Memory
Input: NTC Probe, SZ-N75
Power Supply: 230Vac ±20%, 50Hz
Mounting: Flush panel mounting
Terminal: Plugable screw terminal blocks
Applications:
Cold Storage Rooms
HVAC Systems
Pharmaceutical Chambers
Industrial Refrigeration
Food Processing Units
Product Benefits:
Easy installation with plug-in terminals
Accurate and stable temperature monitoring
Non-volatile memory retains settings after power failure
Compact design with flush panel fit
LCD screen for better readability in various environments
Video Link:
FAQ:
Q1: What type of sensor is compatible with the NC-110A?
A: The NC-110A is compatible with NTC probes, specifically the SZ-N75.
Q2: Does it retain data after a power cut?
A: Yes, it uses EEPROM non-volatile memory to retain all data and settings.
Q3: Is this controller suitable for cold room applications?
A: Absolutely. With its wide operating and probe temperature range, it's ideal for cold storage and refrigeration setups.
Q1: What type of sensor is compatible with the NC-110A?
A: The NC-110A is compatible with NTC probes, specifically the SZ-N75.
Q2: Does it retain data after a power cut?
A: Yes, it uses EEPROM non-volatile memory to retain all data and settings.
Q3: Is this controller suitable for cold room applications?
A: Absolutely. With its wide operating and probe temperature range, it's ideal for cold storage and refrigeration setups.
