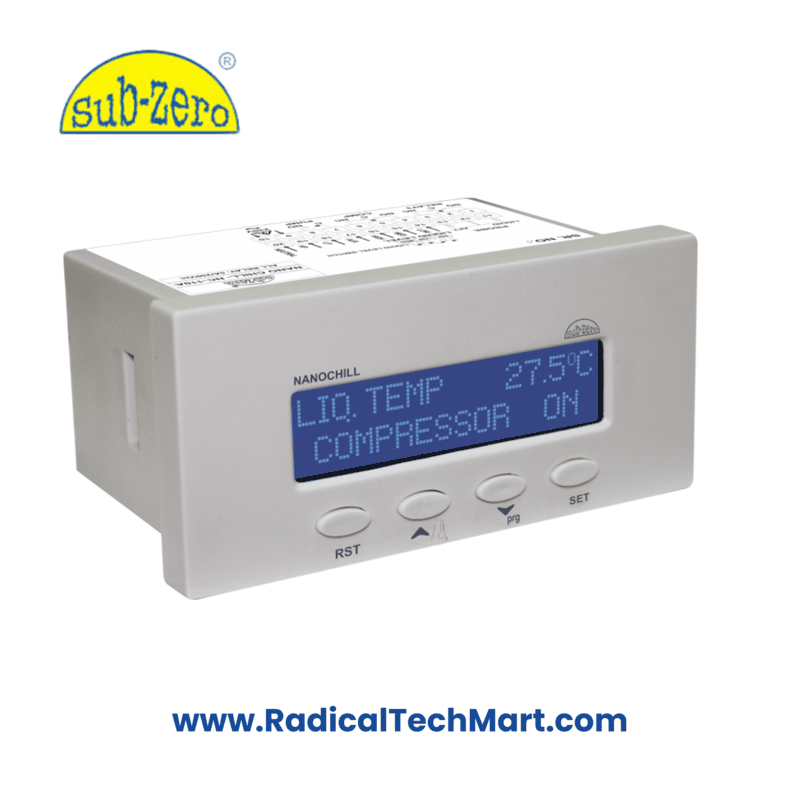

Subzero NC-120A Digital Temperature Controller

Product Summary:
The NC-120A is a microcontroller-based digital temperature controller designed for precision temperature monitoring and control in industrial environments. It features an NTC probe, 16x2 LCD display, and EEPROM data storage.

Key Features:

• Large 16x2 LCD display for clear readability

• Non-volatile EEPROM memory for data retention

• IP54 front panel protection

• Compact ABS plastic housing

• 230VAC power input

• Plugable screw terminal connections

• Temperature range: -30.0°C to +50.0°C

• Resolution: 0.1°C / 0.1 Amp

• Accuracy: ±1°C

• Input: NTC Probe SZ-N75

• All relays rated at 5A/250VAC

Applications:

• Industrial equipment temperature control

• Commercial refrigeration systems

• Process automation systems

• HVAC and air handling units

Product Benefits:

• Easy panel flush mounting with plugable terminals

• Stable performance with EEPROM memory backup

• Durable front design with IP54 protection

• Accurate measurement with ±0.3°C probe tolerance

• Ideal for continuous monitoring in demanding environments

FAQs:

What type of sensor is compatible with the NC-120A?
The NC-120A is compatible with the NTC Probe SZ-N75 for accurate temperature detection.

Does the controller retain settings after a power failure?
Yes, the NC-120A uses non-volatile EEPROM memory, which retains data during power outages.

What is the mounting method for this controller?
It supports flush panel mounting with a panel cutout of 92 x 45 mm.
