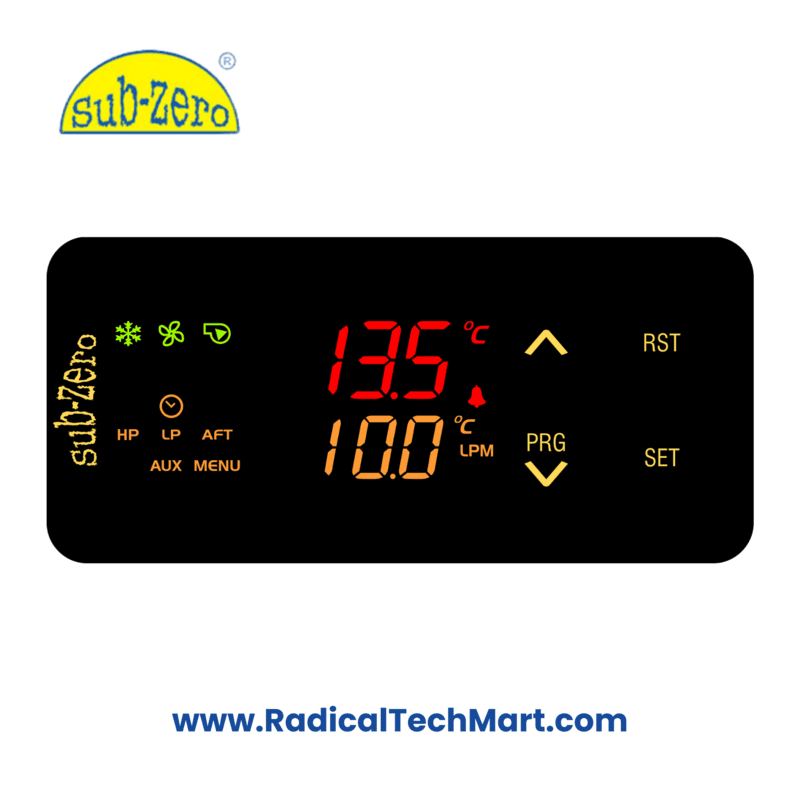

Subzero PIC-165/175/190 Picochill Digital Chiller Controller

Product Summary:
PIC-165/175/190 Picochill is a compact, panel-mounted digital chiller controller designed for advanced flow and temperature monitoring in industrial chilling systems. Its user-friendly interface and robust design ensure reliable performance in harsh environments.

Key Features:

• ABS housing with IP65 front protection

• 4-digit temperature display with 13 LED indicators

• Dual relay output for compressor and alarm

• Wide temperature range: -40.0°C to 80.0°C

• Compatible with NTC probe SZ-T75

• Flow sensor input up to 60 LPM

• Digital inputs for multiple operational statuses

• EEPROM for non-volatile data storage

• Screw terminal and Minifit connectors

• Compact design with flush panel mounting

Applications:

• Industrial chillers and refrigeration units

• HVAC and water cooling systems

• Process cooling for plastic molding machines

• Pharmaceutical and lab equipment temperature control

Product Benefits:

• Compact and rugged for space-saving installations

• High accuracy and resolution for critical monitoring

• Easy integration with flow sensors and NTC probes

• Dual relay support enhances system protection

• Long-term reliability with EEPROM memory storage

FAQs:

Q1: What type of sensor is compatible with the PIC-165/175/190 controller?
A1: It supports NTC temperature sensors, specifically model SZ-T75.

Q2: What is the measuring range and accuracy of the temperature input?
A2: It measures from -40.0°C to 80.0°C with an accuracy of ±1°C.

Q3: Can this controller monitor both temperature and flow?
A3: Yes, it supports flow sensor input (up to 60 LPM) and temperature measurement.
