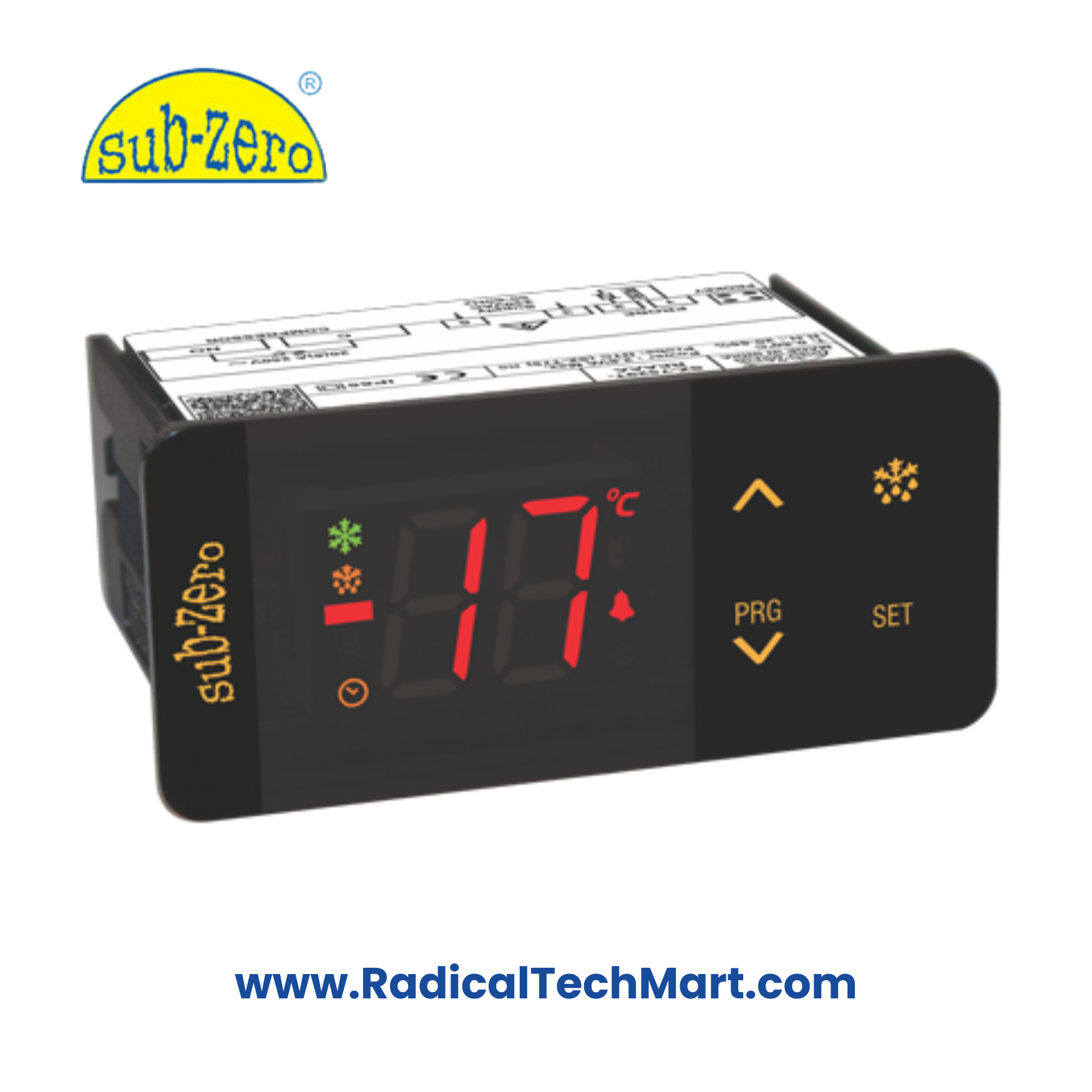

Subzero SZ-7529-T Digital Temperature Controller

Product Summary:
The Sub-Zero SZ-7529-T is a panel-mounted digital temperature controller designed for precise temperature monitoring and control in industrial applications. It features a robust relay output, wide temperature range, and durable housing.

Key Features:

• Dual 17mm 7-segment LED display with 5 LED indicators

• Measuring range: -45°C to 99°C

• Accuracy: ±1°C with NTC SZ-T75 probe

• Relay Output: SPST 20(8)A, 250VAC

• IP65 front panel protection

• Power input: 230V AC ±15%, 50–60Hz

• Flush panel mount with fasteners

• Non-volatile EEPROM memory

• Compact housing with black ABS & polycarbonate front

Applications:

• Industrial temperature control panels

• Chillers and HVAC systems

• Cold storage monitoring

• Process automation systems

Product Benefits:

• Easy installation with compact design

• High relay capacity for heavy loads

• User-friendly interface with LED indicators

• Reliable performance in harsh environments

• Maintenance-free operation with EEPROM memory

FAQs:

Q.1 What is the measuring range of the SZ-7529-T?
The controller can measure temperatures from -45°C to 99°C using the NTC SZ-T75 sensor.

Q.2Is the SZ-7529-T suitable for high-load applications?
Yes, it features a SPST relay rated at 20(8)A, 250V AC, ideal for handling high loads.

Q.3What kind of protection does the front panel offer?
The front panel is IP65-rated with a gasket, offering excellent resistance to dust and water ingress.
