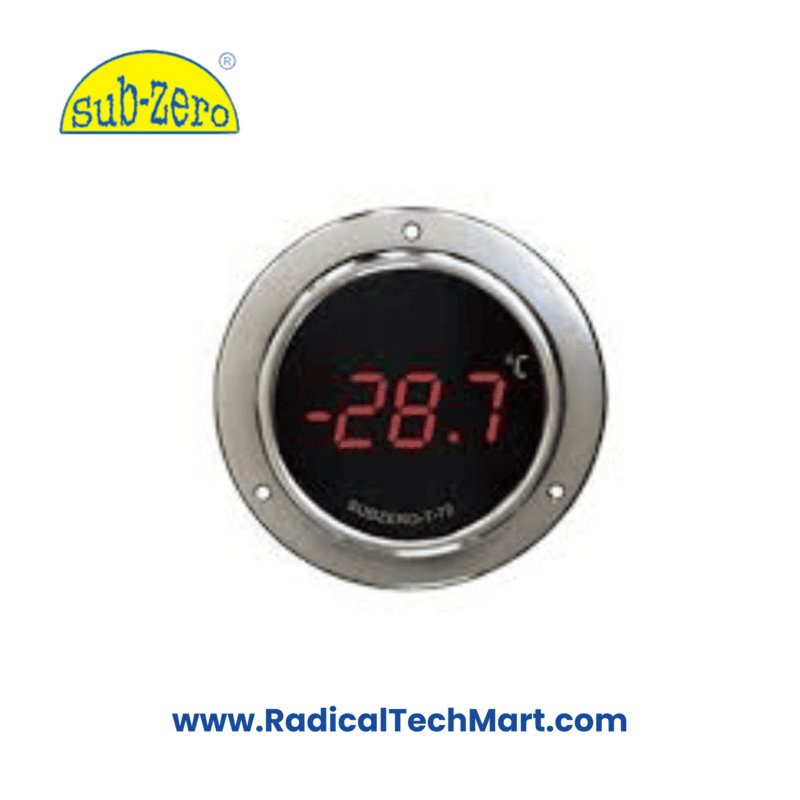

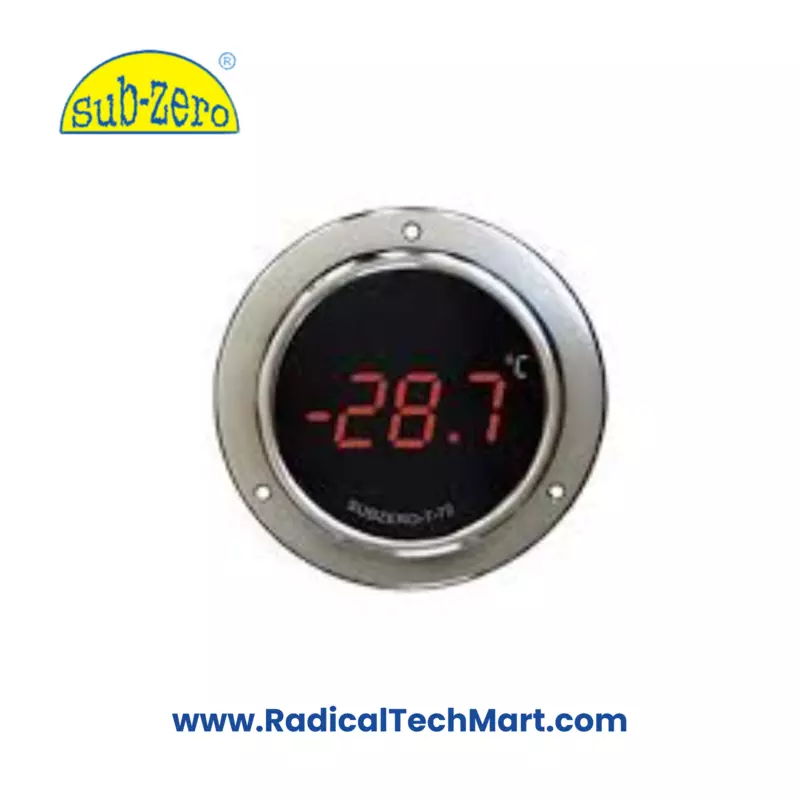

Subzero T-72

Key Features:

• 7-segment LED display, 3 × 33 mm (1.3")

• 0.1 °C resolution for accurate readings

• NTC probe input for fast response

• Wide temperature range: –50 °C to +100 °C

• Standard 230 VAC power supply (also available in 12 VDC, 24 VDC, 110 VAC on request)

• Panel-mount design; panel cutout 105 × 105 mm

• Compact size: 135 × 135 mm

Applications:

• Cold room and freezer temperature monitoring

• Refrigeration units (bulk milk coolers, ice-cream counters)

• Food processing and storage

• Pharmaceutical and laboratory environments

• HVAC systems and compressor control

Product Benefits:

• Enhanced Accuracy: 0.1 °C resolution minimizes temperature deviation

• Quick Installation: Panel-mount form factor with standard cutout

• Process Safety: Real-time monitoring prevents spoilage and equipment damage

• Energy Efficiency: Precise control reduces unnecessary cooling cycles

• Versatile Use: Compatible with a variety of industrial refrigeration setups

FAQs:

Q. What temperature range does the T-72 support?
It measures from –50 °C up to +100 °C.

Q. Is the NTC probe included?
Yes, a standard NTC probe is supplied with the unit.

Q. How do I install the T-72 in my control panel?
Simply cut a 105 × 105 mm hole, insert the unit, and secure with the supplied bracket.
