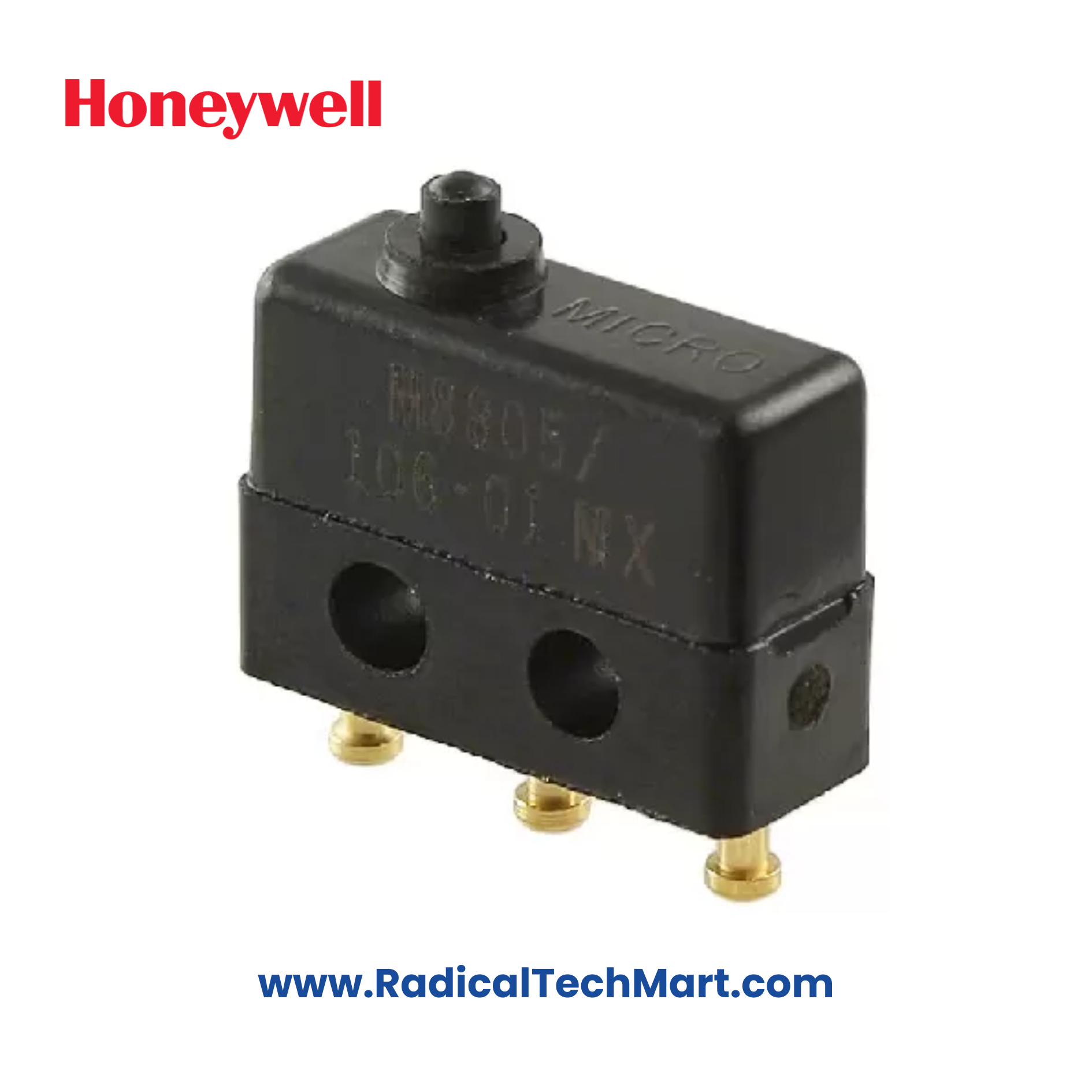

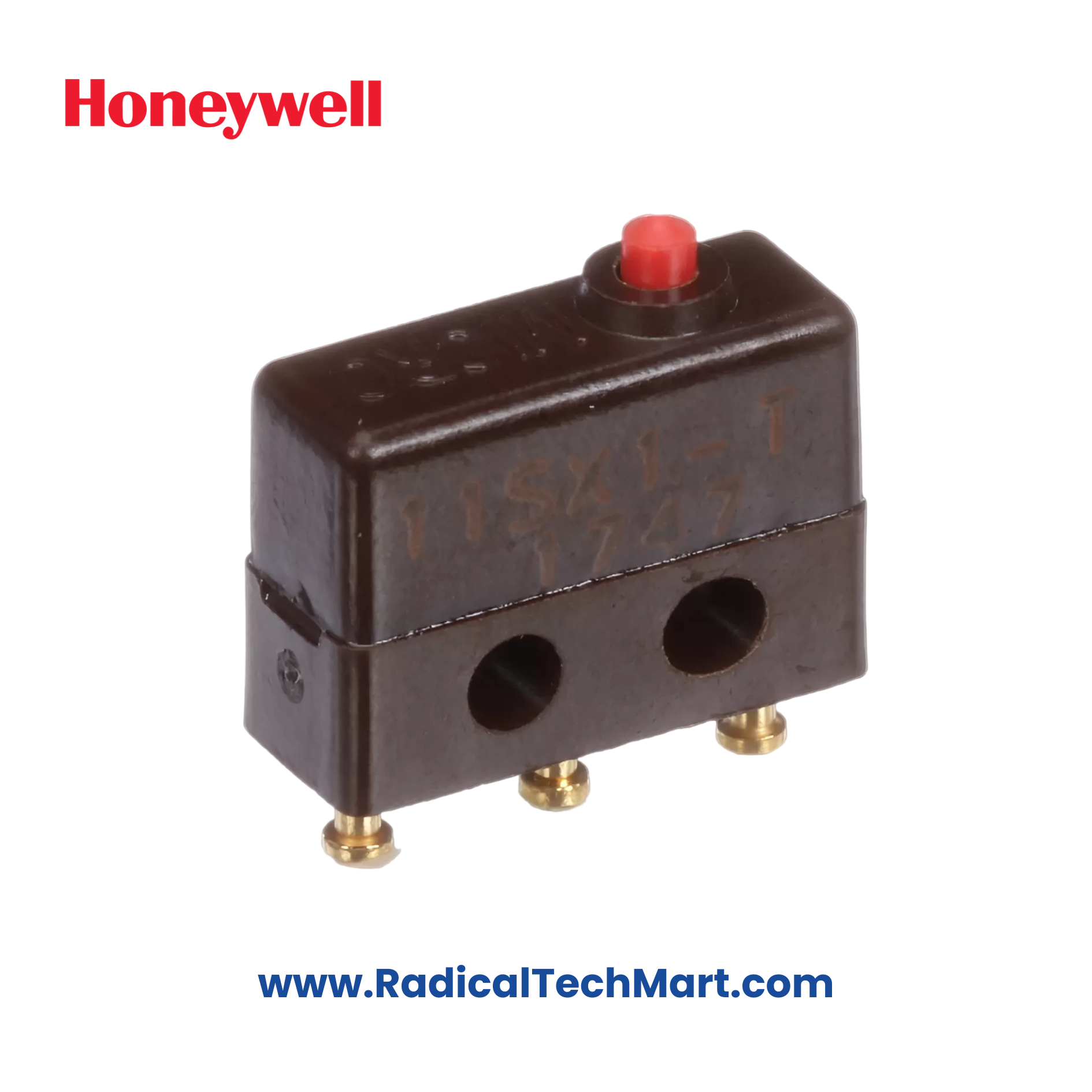

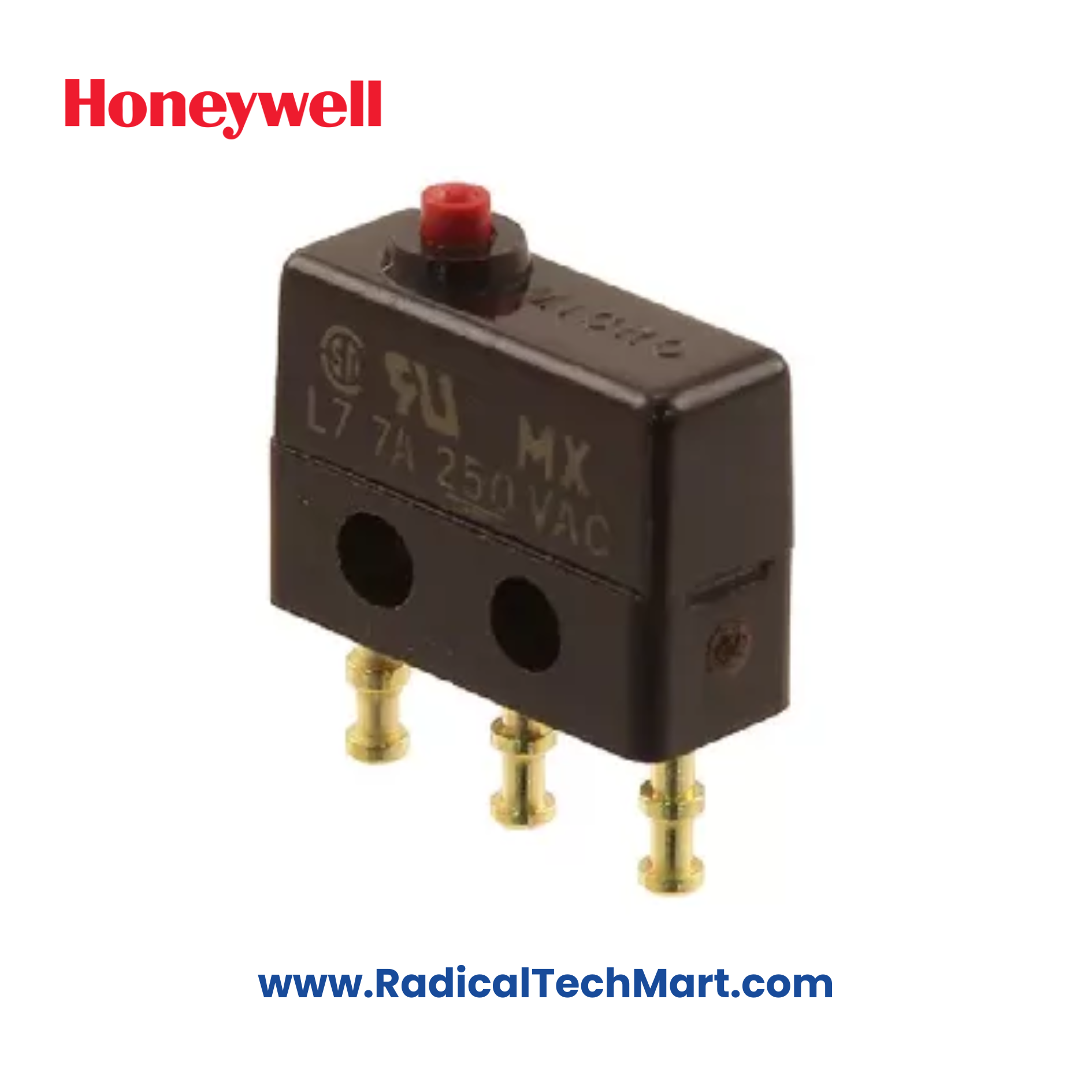

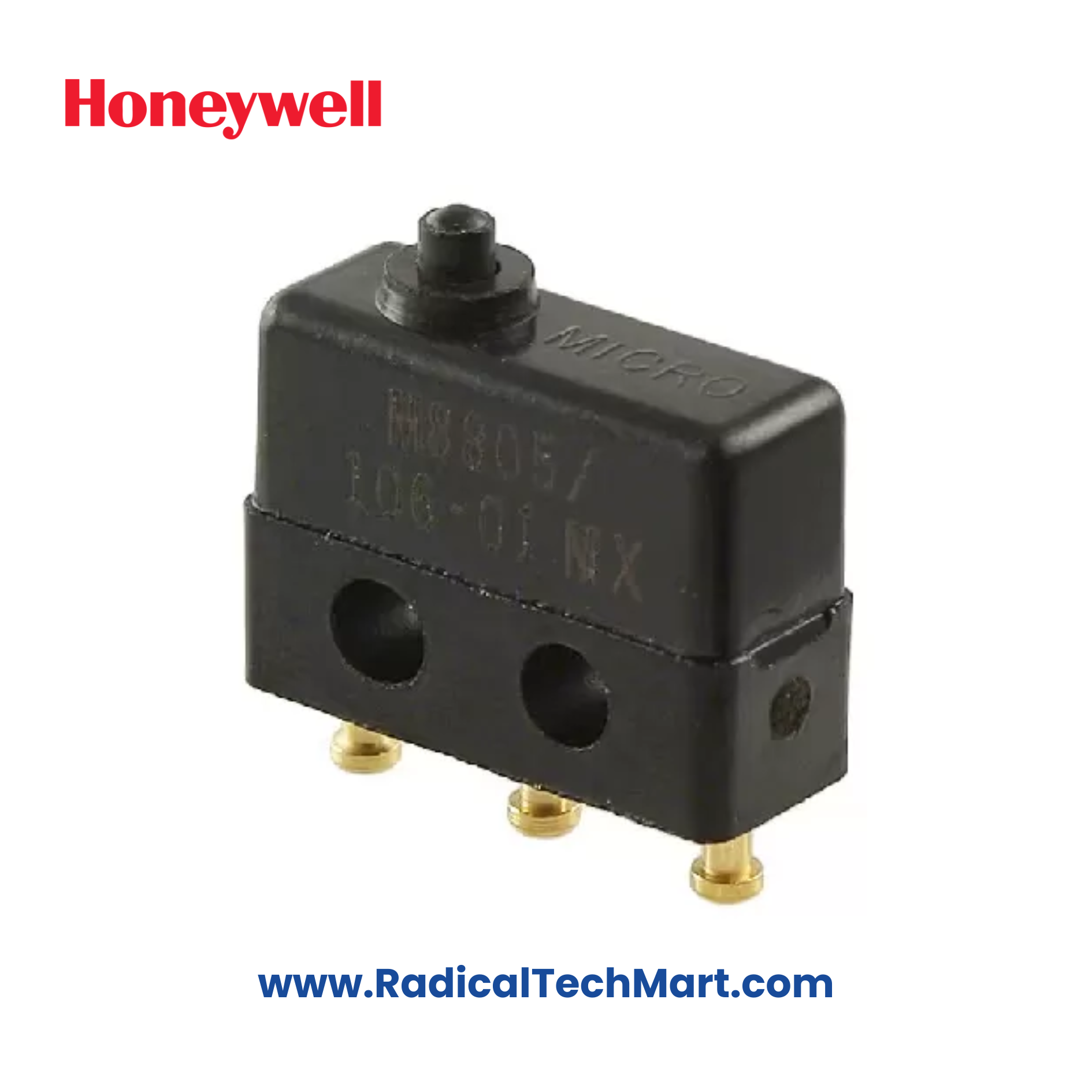

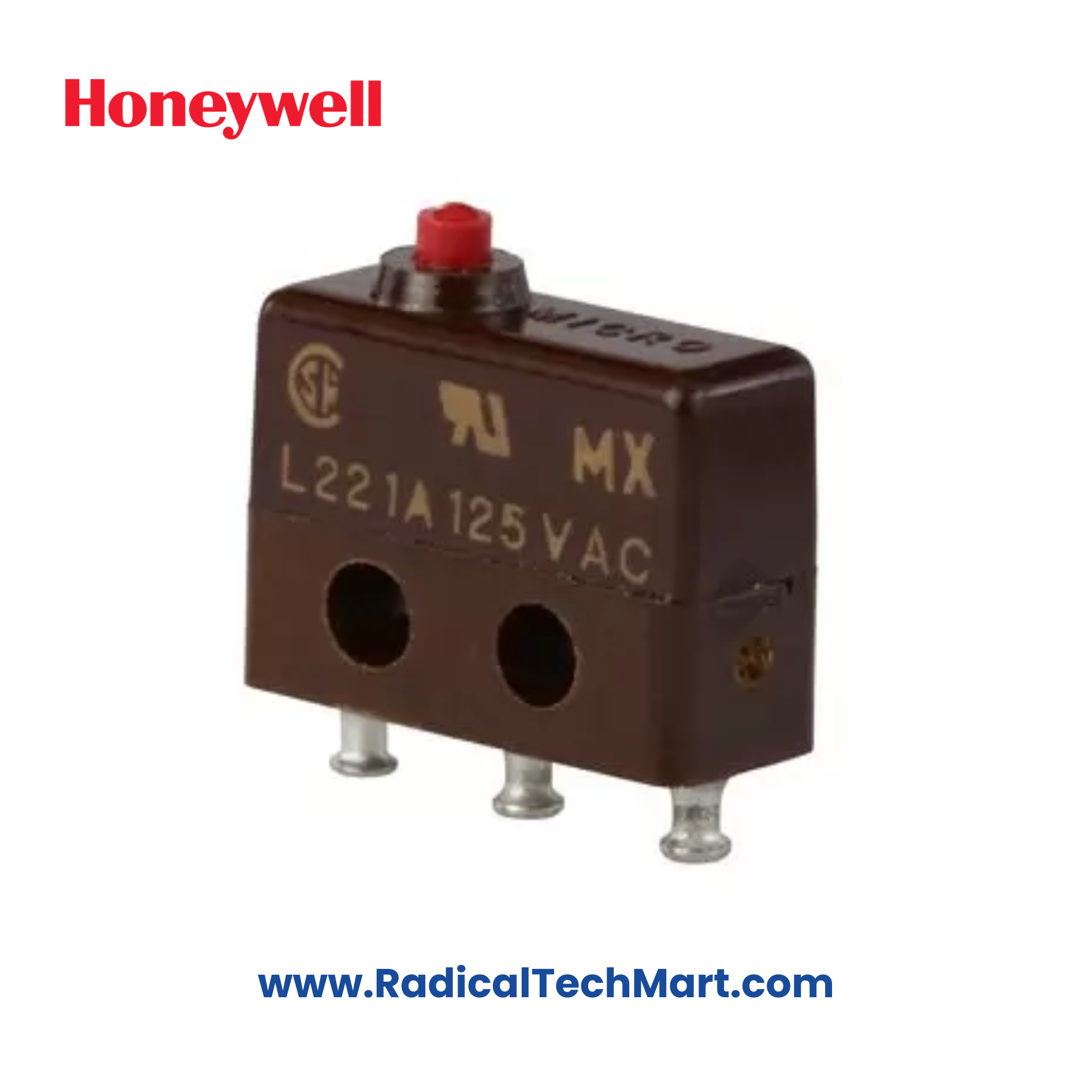

SX Series Honeywell Micro Switch
SX Series Honeywell Micro Switch
SX Series Honeywell Micro Switch
SX Series Honeywell Micro Switch
SX Series Honeywell Micro Switch
SX Series Honeywell Micro Switch
SX Series Honeywell Micro Switch

SX Series Honeywell Micro Switch

₹1,433.00 - ₹2,846.00
Model
Choose Model
Customize
Product Details
  • Series: SX Series Snap-Action Micro Switches

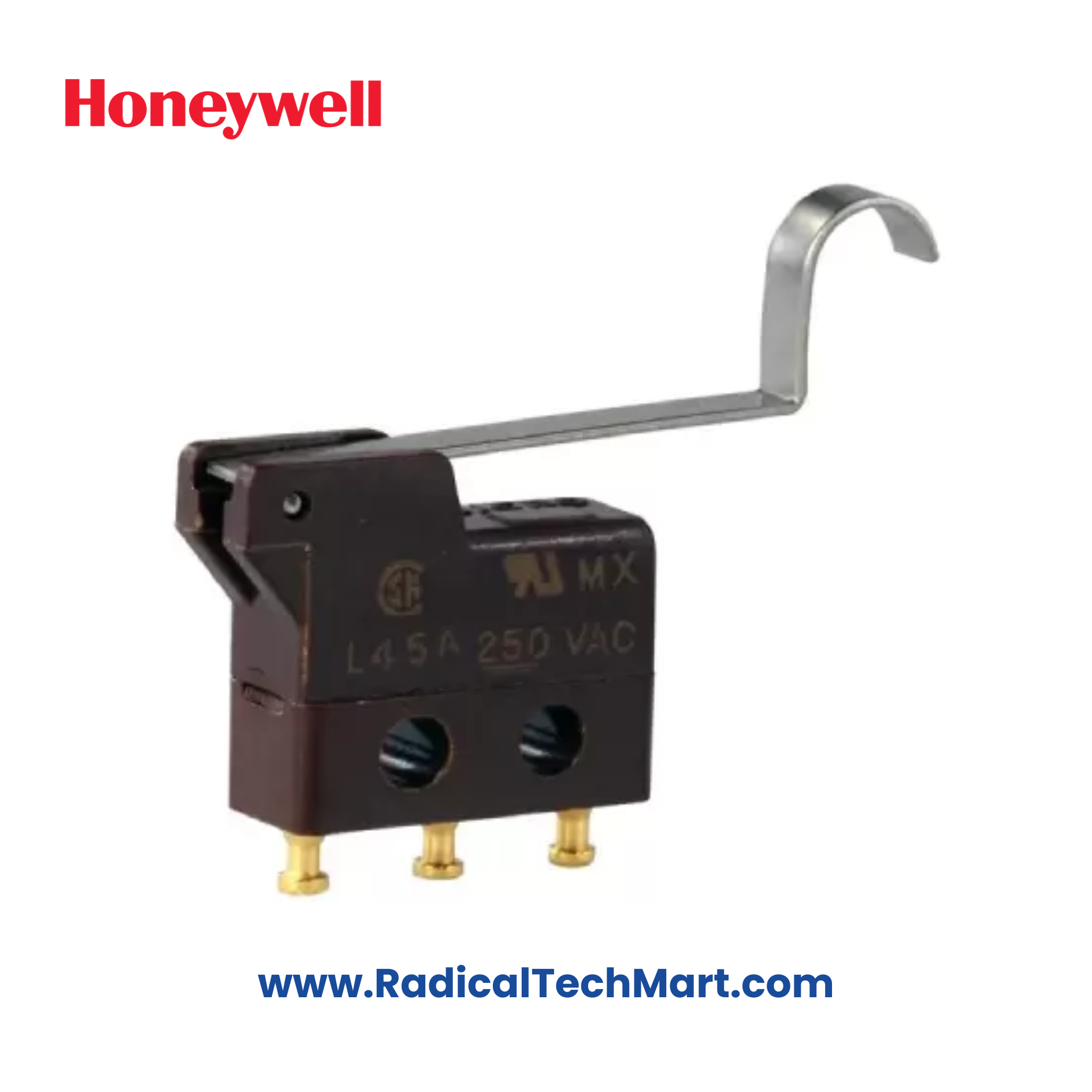

  • Actuation Type: Pin Plunger or Lever Actuated (varies by model)
  • Contact Configuration: SPDT (Single-Pole Double-Throw)
  • Voltage Rating:
    • Up to 250V AC
    • Up to 28V DC
  • Current Rating:
    • Typically 5A to 10A (varies by model)
  • Mechanical Life: Up to 1 million cycles
  • Electrical Life: Up to 100,000 cycles at rated load
  • Operating Temperature Range: -55°C to +85°C
  • Sealing: Sealed or unsealed options for harsh environments
  • Mounting Style: Panel or PCB mounting options available
  • Housing Material: High-strength thermoplastic or metal housing
  • Termination Style: Quick Connect, Solder, or Screw Terminals
  • Response Time: Fast snap-action response for precise control
  • Applications: Aerospace, industrial machinery, automation, and high-reliability environments
