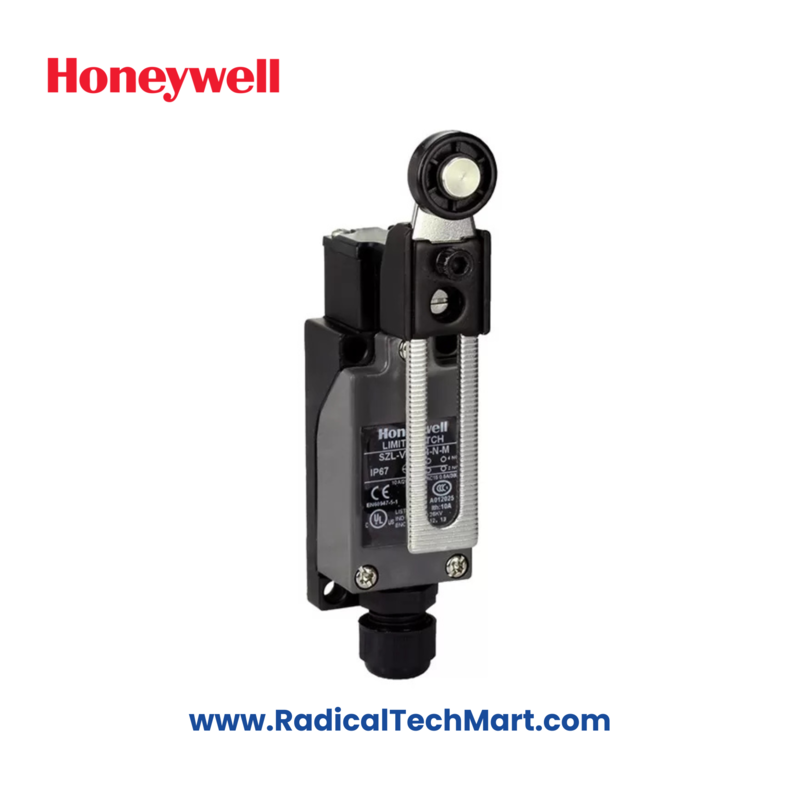

SZL-VL-S-B-N-M Honeywell Limit Switch
₹1.00
Product Details
| Brand | Honeywell |
| Model No. | SZL-VL-S-B-N-M |
| Approvals | CCC, CE, cULus |
| Housing material | Die-cast metal housing with glass-filled, flame-retardant thermoplastic cover UL 94 flame spread testing: V-0 rated |
| Electrical connection | Conduit entry or cable gland |
| Contact design | Snap-action (all versions) Positive-opening contacts (side rotary version only) |
| Contact material | Silver alloy |
| Electrical ratings | AC-15 A300 (380 Vac/0.5 A) DC-13 Q300 (220 Vdc/0.05 A) |
| Thermal current (Ith) | 10 A/250 Vac (EN 60947-5-1) |
| Initial contact resistance | < 25 mOhm |
| Insulation resistance | >100 MOhm at 500 Vdc |
