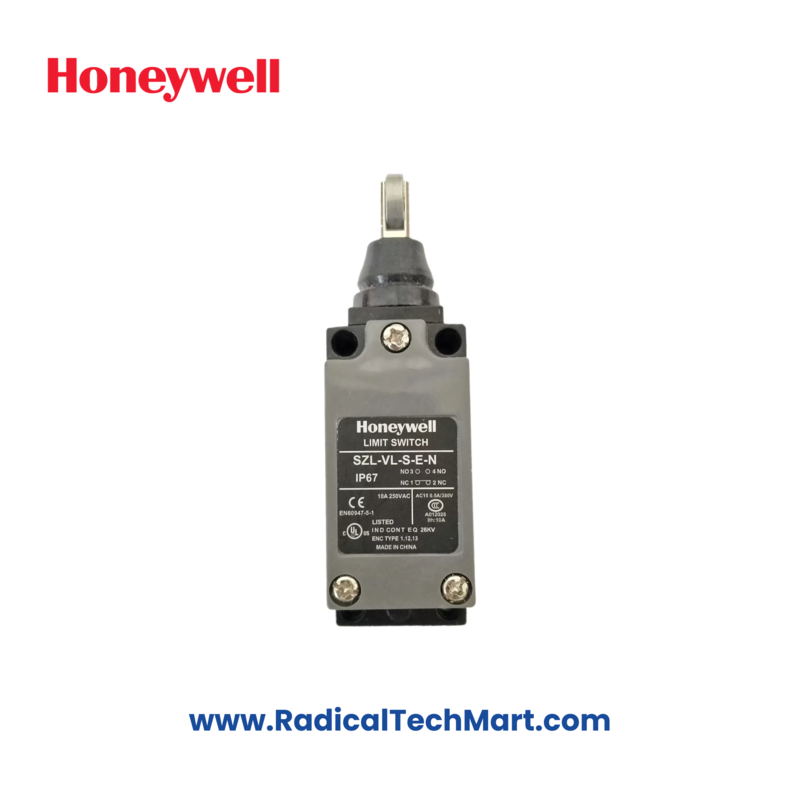

SZL-VL-S-E-N Honeywell Mini Limit Switch
₹1.00
Product Details
| Brand | Honeywell |
| Model No. | SZL-VL-S-E-N |
| Type | Cross roller plunger Ø12,5 x 3,8 Miniature industrial limit switch |
| Housing material | Die-cast metal housing with glass-filled, flame-retardant thermoplastic cover UL 94 flame spread testing: V-0 rated |
| Contact Material | Silver Alloy |
| Contact design | Snap-action (all versions) Positive-opening contacts (side rotary version only) |
| Electrical Connection | Conduit entry or cable gland |
| Electrical Ratings | AC-15 A300 DC-13 Q300 |
| Dielectric Voltage | 1890 Vac for metal housing, 1890 Vac between all terminals to enclosure after durability test |
| Impulse Voltage | 2500 Vdc |
| Thermal current (Ith) | 10 A/250 Vac |
| Leakage Current | < 10 mA |
| Humidity | 95 %RH |
| Shock | 30 G, conforming to IEC 60068-2-27 |
| Vibration | 10 G, 10 Hz to 55 Hz displacement amplitude 0,75 mm, conforming to IEC 60068-2-6 (wobble excluded) |
| Operating Temperature | -20°C to 70°C (with no icing) |
| Operating speed | 0,05 mm/s to 2 m/s (based on pin plunger limit switch) |
| Operating frequency | Mechanical: 120 ops/min; Electrical: 30 ops/min |
| Mechanical life | 10M cycles @ 120 cpm max |
| Electrical life | 0.5M cycles @ 30 cpm max. under the rated resistance load |
| Weight | 120 g to 150 g |
| Approvals | CCC, CE, cULus |
| Pollution Degree | 3 |
| Environmental Sealing | IP67 |
| COO | China |
