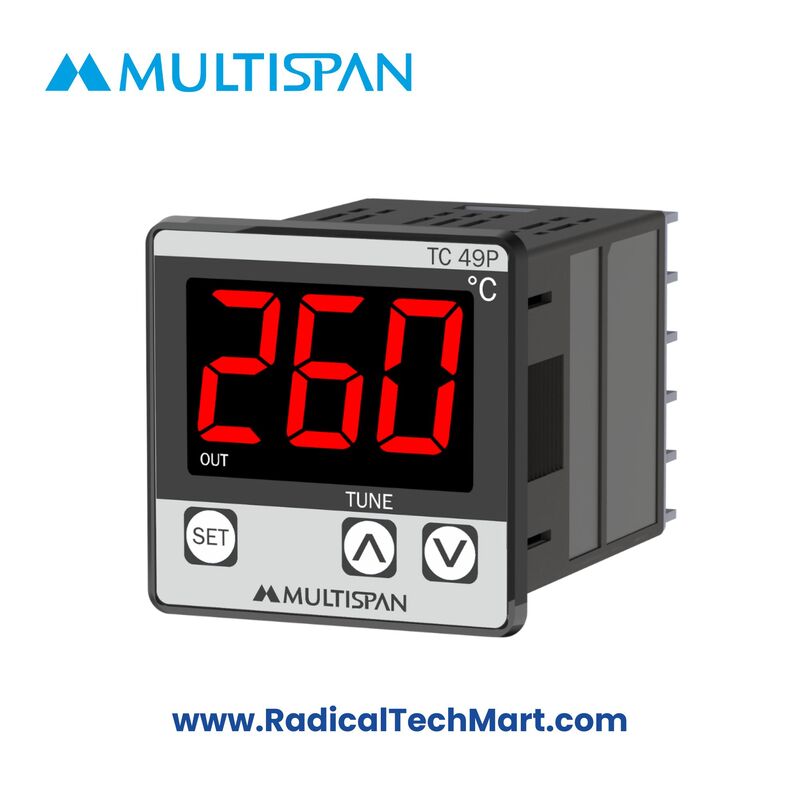

TC-49P Multispan

Product Summary:
The Multispan TC-49P is a compact, panel-mounted temperature controller with a 3-digit red or white LED display, ideal for precision temperature monitoring and control in industrial applications. It supports fixed input types (J/K/RTD) and offers PID and On-Off control with relay or SSR outputs.

Key Features:

• Supports fixed input: J, K, or RTD (Pt-100)

• Compact size: 48 x 48 x 70 mm

• Bright 3-digit LED display in red/white

• Single relay or SSR output for load control

• PID with auto-tuning and On-Off control modes

• Panel cutout size: 45 x 45 mm

• Wide supply voltage: 100–270V AC

• IP65 front panel protection (optional)

Applications:

• Plastic molding and extrusion machines

• Industrial ovens and furnaces

• Laboratory temperature monitoring

• Food processing equipment

• HVAC systems

Product Benefits:

• Reliable and accurate temperature control

• Easy integration in compact panels

• Versatile compatibility with J/K/RTD sensors

• Low power consumption (max 4VA)

• Durable and industrial-grade design

FAQ:

Q1. What types of temperature sensors does the TC-49P support?
A1. The TC-49P supports fixed inputs of J type, K type thermocouples, and RTD (Pt-100) sensors.

Q2. What is the output type in this controller?
A2. The controller offers a single output, either Relay or SSR drive (12V DC, 30mA), depending on the model variant.

Q3. Is the controller suitable for high-temperature applications?
A3. Yes, the controller can measure up to 999°C with K-type input and 600°C with J-type, making it suitable for high-temperature processes.
