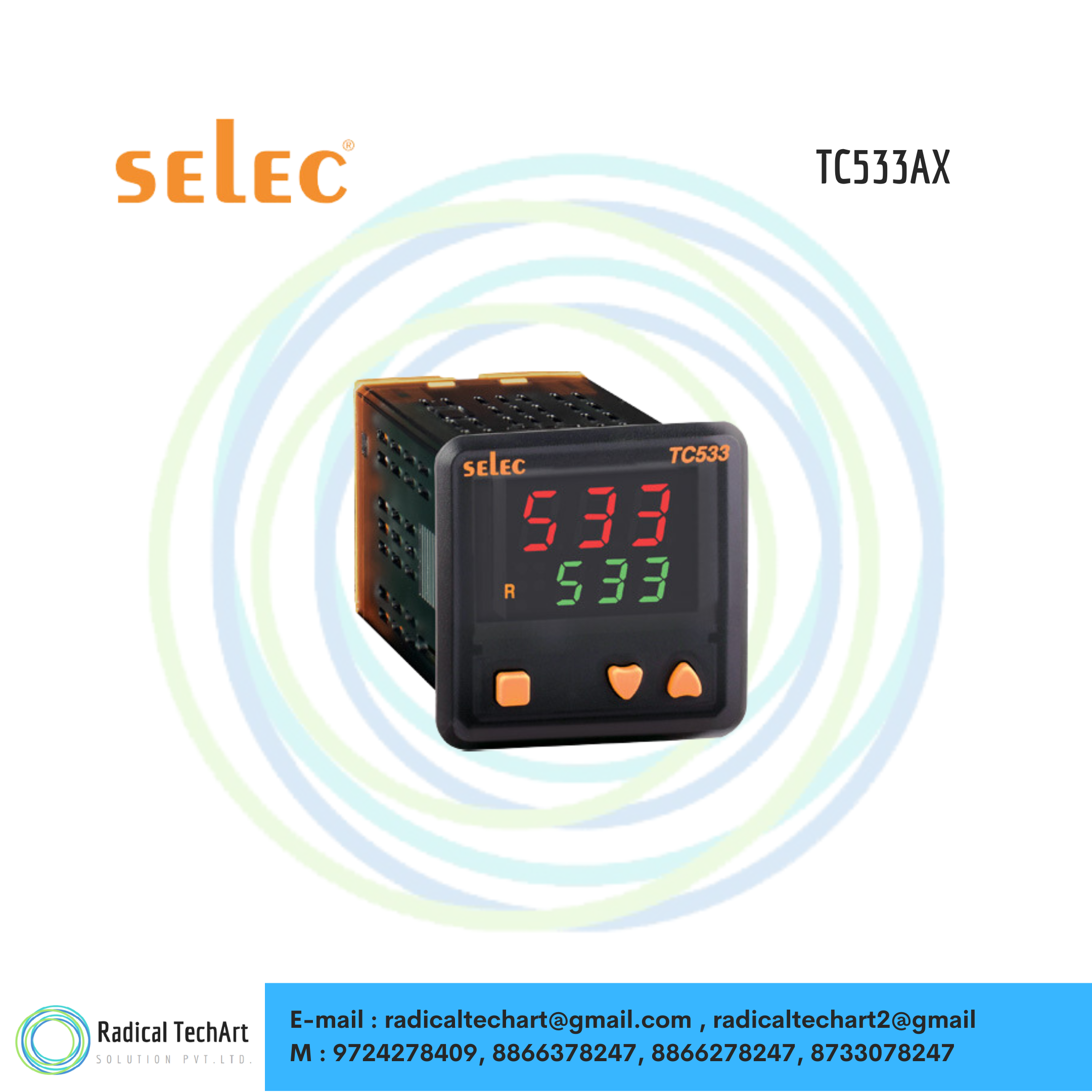

TC533AX Temperature Controller
₹1,400.00 ₹1,900.00
Product Details
Features:
- 3 digit single display temperature controller
- (TC: J, K, T, R, S/ RTD: PT100) sensor input
- ON-OFF/Auto-tune PID control
- Single set point
- 10A Relay / 12V SSR control output
- 48 mm x 48 mm compact size
- Panel mount
- 90 to 270V AC/DC supply voltage
| Display Type | 7 Segment LED Dual Display |
| Display Configuration | 3 + 3 digits |
| Type of Input | Thermocouple (J,K,T,R,S) / RTD (PT100) |
| Resolution | 0.1/1° for TC/RTD (fixed 1° for R and S TC) |
| Accuracy | For TC (J, K, T) inputs: 0.25% of F.S. ± 1: For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1 |
| Control Output | RELAY or SSR. |
| Control mode | Auto Tune PID / ON-OFF |
| Supply Voltage | 90 to 270V AC/DC |

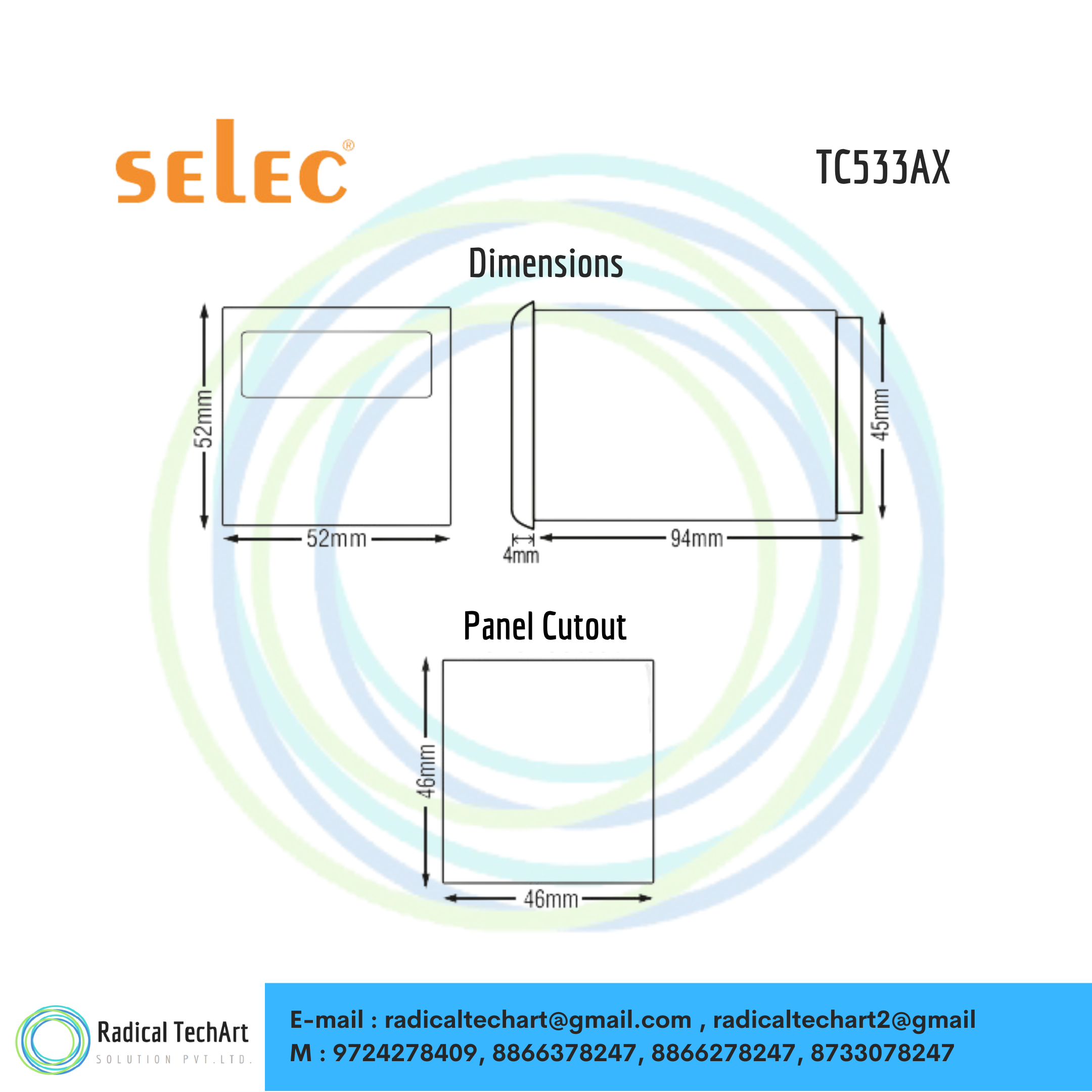

| Size | 48 x 48mm |
| Mounting Type | Panel Mount |
