TCN4S-24R-CN Autonics
The Autonics TCN4S-24R is a compact 48 x 48 mm dual display PID temperature controller designed for accurate and stable industrial temperature control. It supports thermocouple and RTD inputs, including K, J, T, R, S, L, DPt100 and Cu50 sensors. The controller offers ON and OFF, P, PI, PD and PID control, a fast 100 ms sampling cycle, relay or SSR drive control output, dual alarm outputs and a 100 to 240 VAC power supply. It is suitable for heaters, ovens, furnaces, packaging machines, process equipment and industrial control panels.
Customize
Share :
A. Product Overview
The Autonics TCN4S-24R Temperature Controller belongs to the TCN series of economical dual display PID temperature controllers. It is designed for applications where process temperature must be continuously measured, displayed and maintained at a preset value.

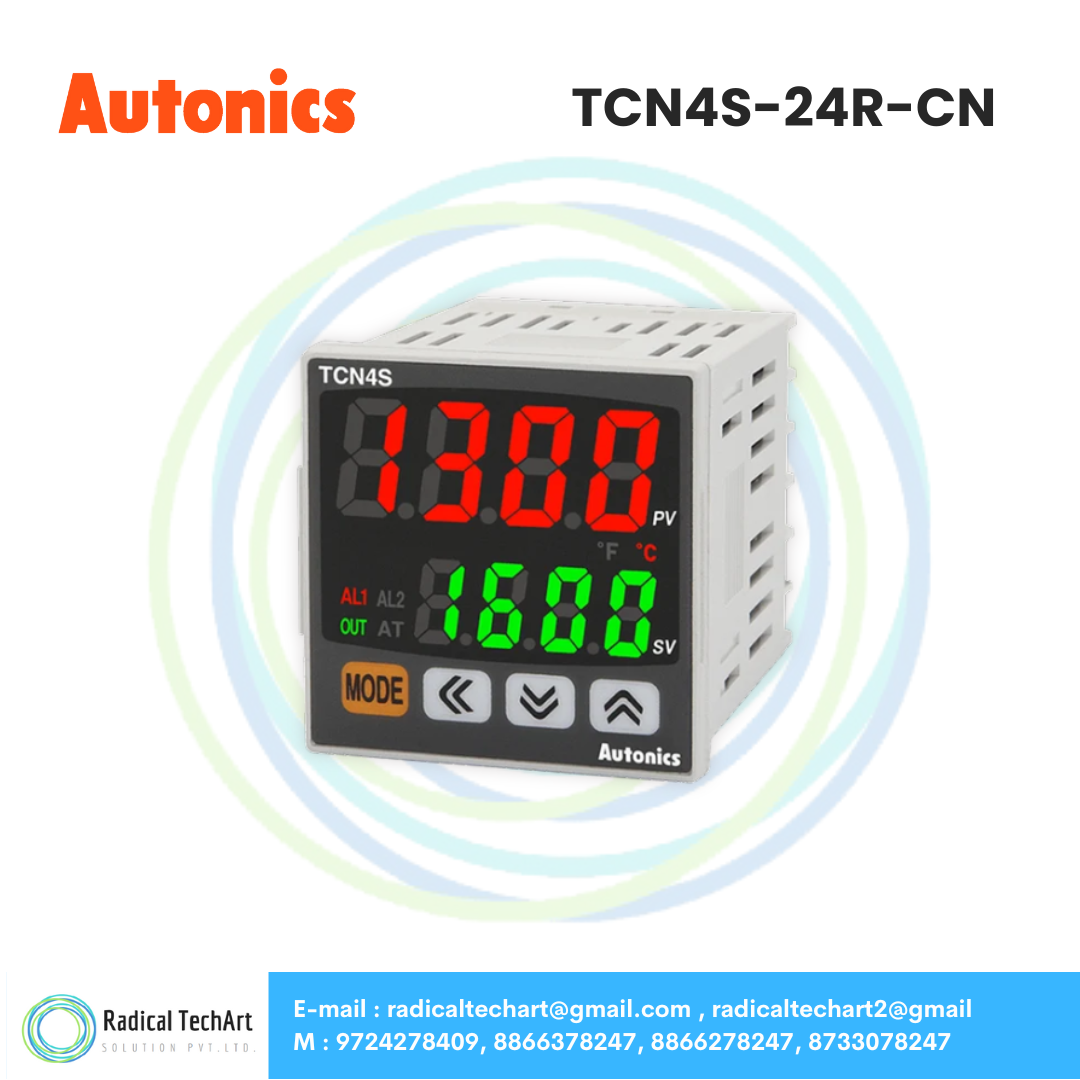

The controller uses separate displays for the Process Value, PV, and Set Value, SV, allowing operators to view the actual temperature and desired temperature simultaneously.
Key Features
Brand: Autonics
Model: TCN4S-24R
Product Type: PID Temperature Controller
Panel Size: 48 x 48 mm
Display: 4 digit 7 segment LED dual display
Power Supply: 100 to 240 VAC, 50 or 60 Hz
Sampling Cycle: 100 ms
Control Methods:
ON and OFF control
P control
PI control
PD control
PID control
Supported Thermocouple Inputs:
K
J
T
R
S
L
Supported RTD Inputs:
DPt100
Cu50

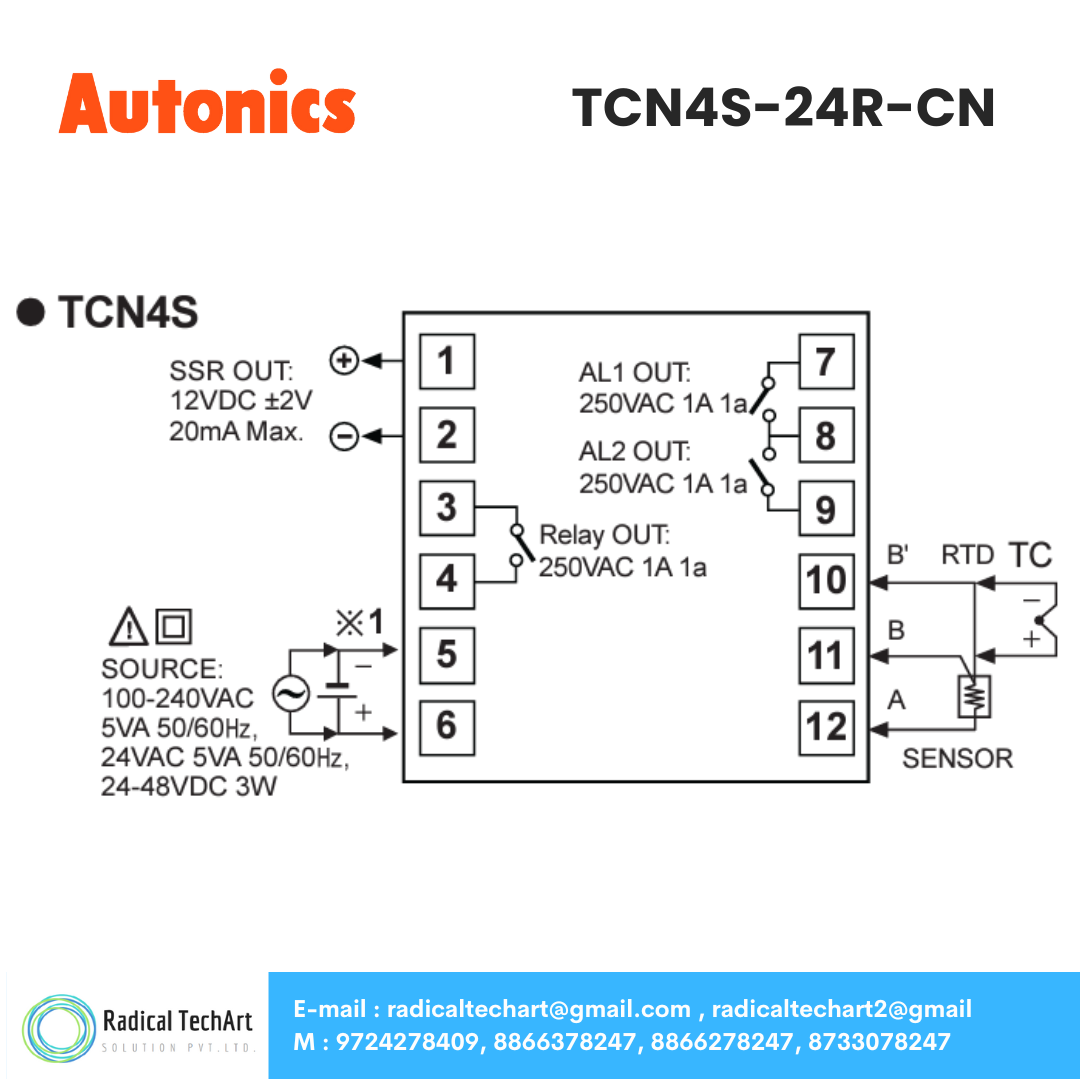

Control Output:
Relay output, 250 VAC, 3 A
SSR drive output, 12 VDC
Alarm Output:
Alarm 1 and Alarm 2
The flexible sensor compatibility makes the TCN4S-24R Autonics PID Controller suitable for a wide range of industrial heating and temperature regulation applications.
B. Working Principle
The Autonics TCN4S-24R PID Temperature Controller works by continuously receiving a temperature signal from a connected thermocouple or RTD sensor.
For example, if the required temperature is 150°C, the operator sets the Set Value to 150°C.
The temperature sensor measures the actual process temperature and sends it to the controller. The controller displays this measurement as the Process Value.
The TCN4S-24R then compares:
Actual Temperature, PV
with
Required Temperature, SV
If there is a difference between these values, the controller operates its relay or SSR drive output to control the connected heater or other temperature control equipment.
With PID control, the controller continuously calculates the difference between the Process Value and Set Value and adjusts the control output accordingly.
This helps to:
Reduce temperature overshoot
Improve temperature stability
Reach the set temperature efficiently
Maintain consistent process temperature
Reduce repeated switching compared with basic ON and OFF control
The 100 ms sampling cycle allows the controller to monitor temperature changes rapidly and respond to process variations.
C. Why Is Autonics TCN4S-24R Used?
The Autonics TCN4S-24R is used when an industrial process requires automatic and accurate temperature control.
Instead of manually switching heaters ON and OFF, the controller continuously monitors the sensor and automatically operates the control output.
Common Applications
The TCN4S-24R can be used in:
Industrial ovens
Heating machines
Industrial furnaces
Packaging machines
Plastic processing machinery
Sealing machines
Food processing equipment
Dryers
Heating chambers
Temperature controlled tanks
Industrial heaters
Laboratory equipment
Control panels
OEM machinery
Process automation systems
It is particularly useful where the machine already uses a thermocouple or Pt100 RTD sensor and requires a compact panel mounted temperature controller.
D. Suitable Buyers
The Autonics TCN4S-24R PID Controller is suitable for:
Machine Manufacturers
OEMs manufacturing machinery with heaters, ovens, sealing systems or controlled heating processes can use the TCN4S-24R as the primary temperature controller.
Panel Builders
Electrical and automation panel builders can use it in control panels requiring a compact 48 x 48 mm PID temperature controller.
Industrial Maintenance Teams
Maintenance departments can use the TCN4S-24R for replacement or maintenance of temperature control systems installed in existing machinery.
Process Industries
Industries requiring stable process temperatures can use the controller with suitable RTD or thermocouple sensors.
Automation System Integrators
Automation companies can integrate the controller with heaters, contactors, solid state relays and temperature sensors.
Furnace and Oven Manufacturers
The PID control function makes it suitable for industrial heating equipment where temperature stability and reduced overshoot are important.
Frequently Asked Questions
1. What is the Autonics TCN4S-24R?
The Autonics TCN4S-24R is a 48 x 48 mm digital PID temperature controller used for monitoring and controlling temperature in industrial machines and processes.
2. Is TCN4S-24R a PID controller?
Yes. The TCN4S-24R supports ON and OFF, P, PI, PD and PID temperature control methods.
3. What is the power supply of Autonics TCN4S-24R?
The controller operates on 100 to 240 VAC, 50 or 60 Hz.
4. Can TCN4S-24R work with Pt100?
Yes. The TCN4S-24R supports DPt100 RTD input, making it suitable for applications using Pt100 temperature sensors.
5. Which thermocouples are supported by TCN4S-24R?
The controller supports K, J, T, R, S and L type thermocouples.
6. Does the Autonics TCN4S-24R support SSR output?
Yes. It supports an SSR drive output of 12 VDC for controlling a suitable solid state relay.
7. Does TCN4S-24R have a relay output?
Yes. The controller supports a 250 VAC, 3 A relay control output.
8. What is the sampling speed of TCN4S-24R?
The Autonics TCN4S-24R has a 100 ms sampling cycle, allowing fast monitoring of temperature changes.
9. What is the size of Autonics TCN4S-24R?
The TCN4S-24R is a compact 48 x 48 mm panel mounted temperature controller.
10. Does TCN4S-24R display both actual and set temperature?
Yes. Its dual display design allows the Process Value and Set Value to be viewed simultaneously.
