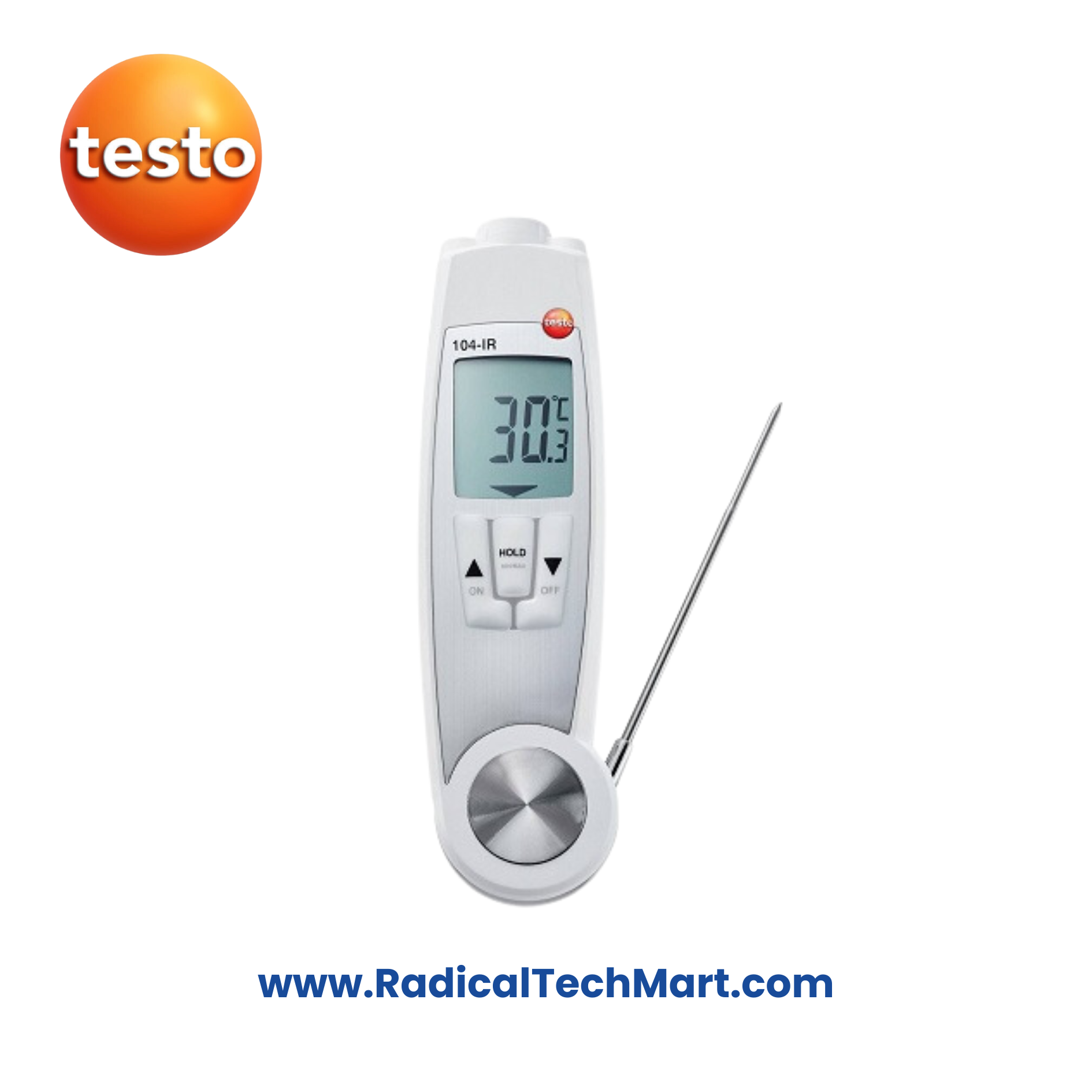

Testo 104-IR - Infrared/Penetration Food Thermometer (waterproof)

Key Features:

• Dual Functionality: Measures both surface (infrared) and core temperature (penetration).
• Integrated Probe & Infrared Laser: For accurate temperature measurement.
• HACCP / EN 13485 Compliant: Meets food safety standards.
• Durability: Rugged folding joint and waterproof housing (IP65).
• Compact & Portable: Fits snugly in any pocket for easy portability.
• Easy-to-Read LCD Display: Clear and illuminated for ease of use.
• Hygienic Design: Dirt-resistant to ensure cleanliness.

Applications:

• Ideal for use in the food sector, restaurants, and retail industry for temperature checks in incoming food, food on display, and food storage.

Temperature Measurement:

• NTC (Penetration) Measurement:

  • Measuring Range: -50 to +250 °C
  • Accuracy:
    • ±1.0 °C (-50 to -30.1 °C)
    • ±0.5 °C (-30 to +99.9 °C)
    • ±1% of mv (Remaining Range)
  • Resolution: 0.1 °C
  • Reaction Time (t₉₉): 10 seconds (measured in moving liquid)

• Infrared Measurement:

  • Measuring Range: -30 to +250 °C
  • Accuracy:
    • ±2.5 °C (-30 to -20.1 °C)
    • ±2.0 °C (-20 to -0.1 °C)
    • ±1.5 °C or ±1.5% of mv (Remaining Range)
  • Measuring Rate: 0.5 seconds
  • Infrared Resolution: 0.1 °C

General Specifications:

• Weight: 198 g (including battery)
• Dimensions:
  • Probe unfolded: 281 x 48 x 23 mm
  • Probe folded: 178 x 48 x 23 mm
• Operating Temperature: -20 to +50 °C
• Storage Temperature: -30 to +70 °C
• Protection Class: IP65 (waterproof)
• Product Color: White
• Probe Shaft Length: 106 mm
• Probe Shaft Tip Length: 32 mm
• Probe Shaft Diameter: 3 mm
• Probe Tip Diameter: 2.5 mm
• Battery Type: 2 AAA Micro batteries
• Battery Life: 10 hours (at +25 °C)
• Display Type: LCD (Liquid Crystal Display)
• Display Size: One-line
• Display Lighting: Illuminated for better visibility

Standards:

• Complies with EN 13485

Warranty:

• As per brand policy.
