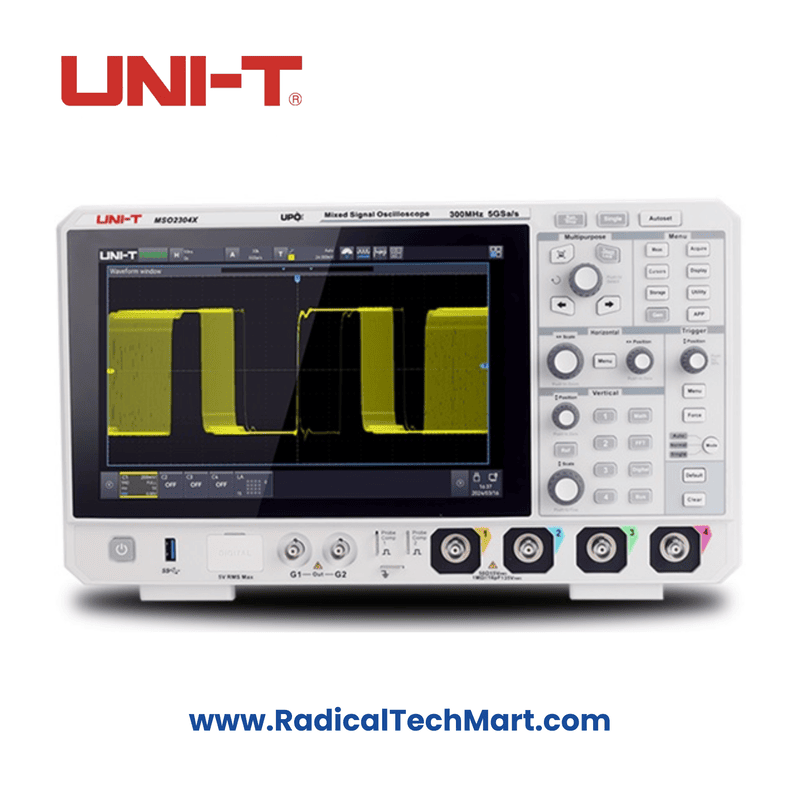

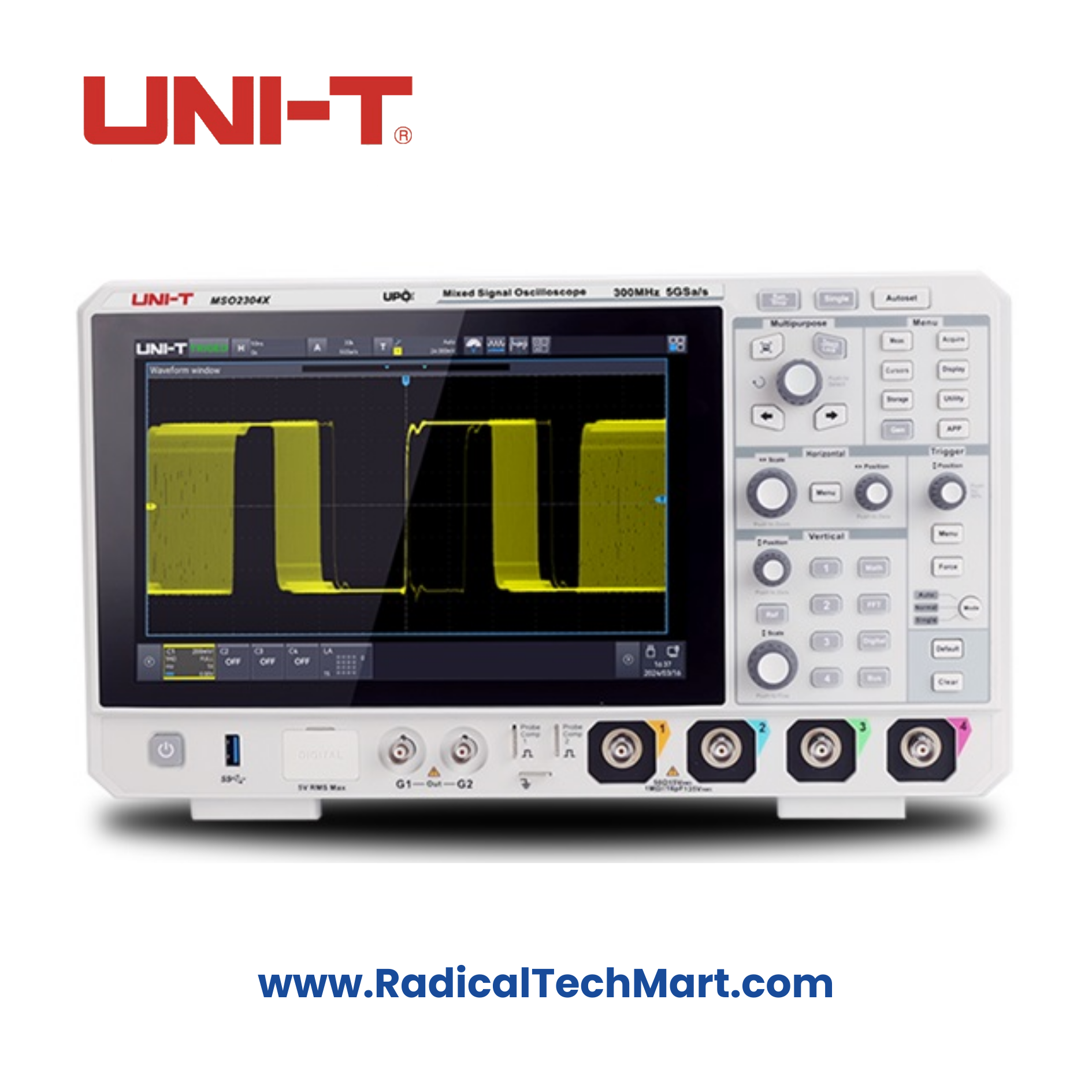

UNI-T MSO2304X Mixed Signal Oscilloscope – 300MHz, 4+16 Channels

Product Summary:
The UNI-T MSO2304X is a 9-in-1 mixed signal oscilloscope with 300MHz bandwidth, 4 analog + 16 digital channels, and advanced features like protocol decoding, power analysis, and built-in waveform generator.

Key Features:

• Bandwidth: 300 MHz; 4 analog + 16 digital channels

• Real-time sample rate: Up to 5GSa/s

• Memory depth: 100Mpts, 2M wfms/s waveform capture rate

• Built-in 50MHz dual-channel function generator

• 10.1” HD multi-touch screen with gesture control

• Integrated with 9 instruments including spectrum analyzer, DVM, frequency counter

• 54 types of measurements with trend, histogram, and line display

• Multiple trigger types + protocol decoding (UART, SPI, I2C, etc.)

• Advanced FFT, Bode Plot, and power analysis functions

• USB 3.0, HDMI, LAN, EXT Trig, Webserver access



Applications:

• Embedded systems diagnostics

• Automotive electronics and powertrain testing

• Power supply design and stability analysis

• Industrial control systems and protocol decoding

• R&D labs and educational institutions



Product Benefits:

• Combines 9 instruments in one unit—saves cost and bench space

• High-speed capture and deep memory for detailed signal analysis

• Multi-touch interface improves ease of use

• Extensive decoding and protocol support for real-time debugging

• Ideal for both analog and digital circuit evaluation



FAQs:

Q1: What is included in the free upgrade bundle?
A1: The free upgrade includes MSO2000X-AWG, MSO2000X-PWR, and MSO2000X-BND, enabling waveform generation, power analysis, and complete feature access.

Q2: Can I analyze digital protocols like CAN or I2C with this oscilloscope?
A2: Yes, it includes decoding for UART, I2C, SPI, and optional support for CAN, LIN, FlexRay, and more.

Q3: Is this suitable for automotive ECU testing?
A3: Absolutely. With 16 digital channels, protocol analysis, and power features, it’s ideal for ECU and in-vehicle electronics.
