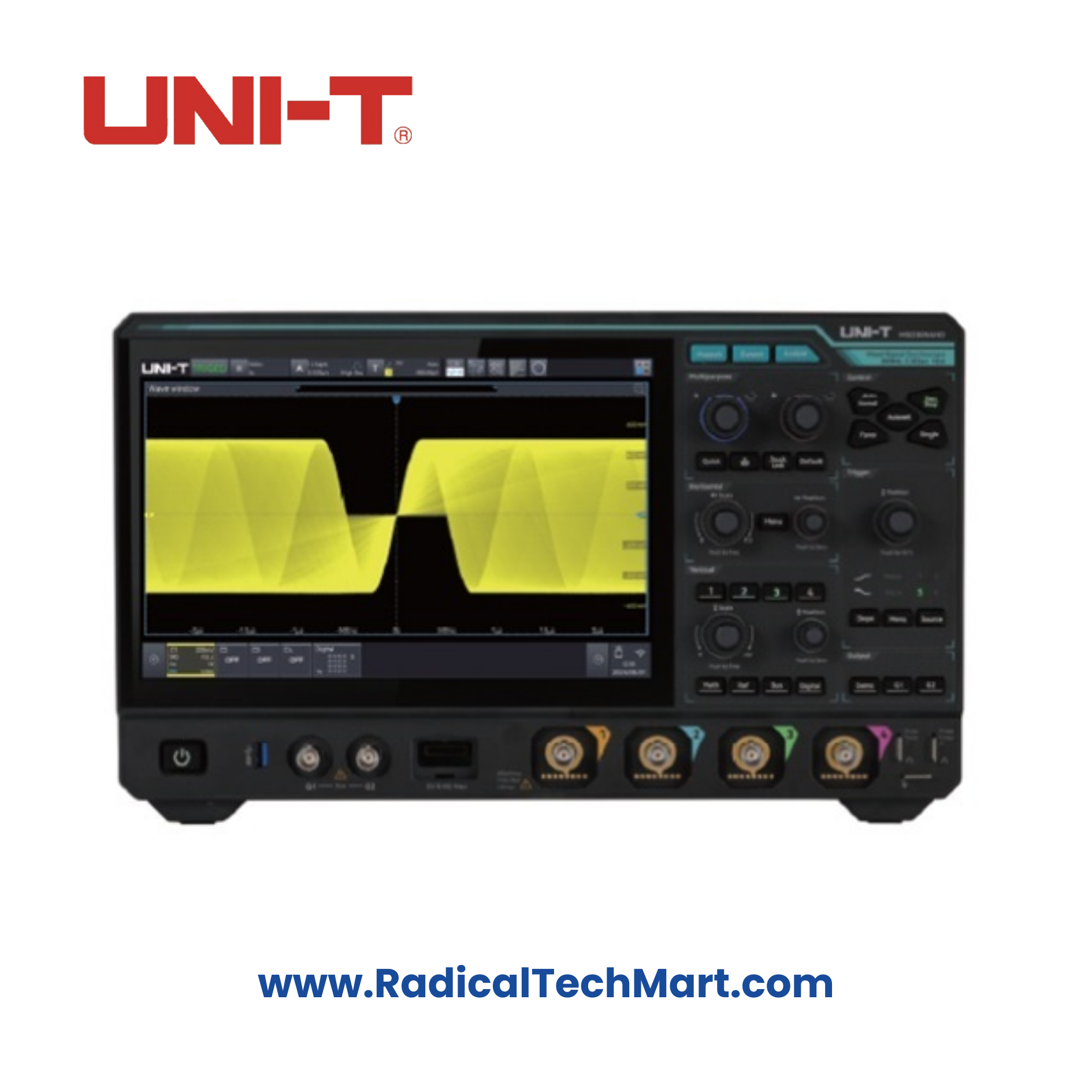

UNI-T MSO3024HD Digital Oscilloscope

Product Summary:
The UNI-T MSO3024HD is a 12-bit high-resolution mixed signal oscilloscope offering a 200 MHz analog bandwidth, 4 analog and 16 digital channels, and a deep 500 Mpts memory for in-depth analysis. It integrates 9 instruments including a logic analyzer, waveform generator, and protocol analyzer into one compact unit.

Key Features:

• 200 MHz analog bandwidth

• Real-time sampling at 2.5 GSa/s

• 12-bit vertical resolution (up to 16-bit with ERES)

• 4 analog + 16 digital channels

• 500 Mpts memory depth

• Waveform capture rate: ≥500,000 wfms/s (up to 1,500,000 in sequence mode)

• 10.1-inch HD capacitive multi-touch screen

• 9-in-1 instrument functionality

• Enhanced FFT analysis (4M points)

• Built-in webserver for remote access

• Protocol decoding for RS232/UART, I2C, SPI, CAN, LIN, and more



Application:

• Embedded system debugging

• Automotive ECU and sensor signal analysis

• IoT hardware development and testing

• Industrial automation and signal diagnostics

• Education and research labs

• Military and avionics protocol monitoring

• Power electronics analysis with Bode & power analyzer functions



Product Benefits:

• High signal fidelity with 12-bit resolution

• Combines 9 essential instruments in one, reducing hardware cost

• Industry-leading memory and capture rate for deeper signal insights

• Supports complex triggering and decoding for advanced protocols

• Ideal for debugging low-speed and high-speed serial buses

• Touchscreen UI enhances productivity during test operations

• Rugged build with 3-year warranty assurance



FAQ:

Q1: What makes the MSO3024HD different from standard oscilloscopes?
A1: It features 12-bit resolution, a 500 Mpts memory, and integrates 9 instruments, providing high signal accuracy and deep analysis capabilities.

Q2: Can I use this oscilloscope for automotive protocols like CAN and LIN?
A2: Yes, it supports protocol decoding for CAN, LIN, CAN-FD, FlexRay, and more, making it suitable for automotive and avionics testing.

Q3: Does it have PC connectivity or remote control features?
A3: Yes, the built-in webserver allows for remote operation and data viewing over LAN without additional software.
