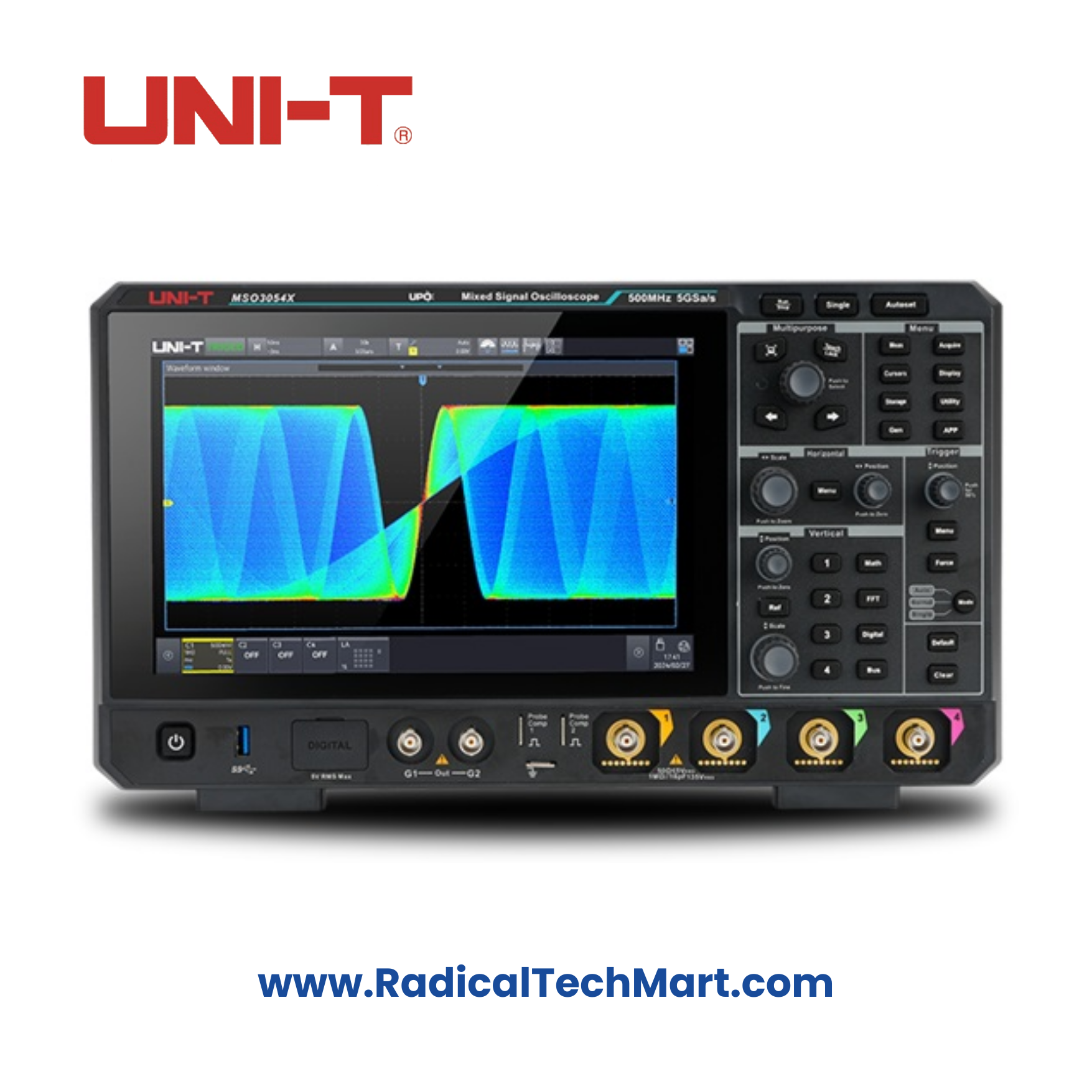

UNI-T MSO3054X 500MHz 4CH Mixed Signal Oscilloscope

Product Summary:
UNI-T MSO3054X is a high-performance 9-in-1 mixed signal oscilloscope offering 500MHz bandwidth, 4 analog channels, and optional 16 digital channels. It includes features like logic analyzer, waveform generator, spectrum analyzer, DVM, frequency counter, and protocol analyzer, making it ideal for R&D labs, education, embedded systems, and power electronics.

Key Features:

• 500 MHz analog bandwidth with 4 analog + optional 16 digital channels

• 5 GSa/s real-time sampling, 500 Mpts memory depth

• 2,000,000 wfms/s capture rate (sequence mode)

• Built-in 50MHz dual-channel arbitrary waveform generator (optional)

• High-resolution 10.1" multi-touch display (1280x800)

• Integrated logic analyzer, spectrum analyzer, power and protocol analysis

• Supports SCPI, HDMI, LAN, USB 3.0, WebServer access

• Bode plot, FFT, zone triggering, and 54 parameter measurements

• 5-Year Warranty



Applications:

• Embedded systems debugging and signal analysis

• Automotive and aerospace protocol decoding

• Power electronics waveform and loop analysis

• R&D and lab test automation

• Electronics education and training institutions



Product Benefits:

• Combines 9 instruments in one, saving cost and bench space

• Ultra-deep memory and high waveform capture for complex signals

• Flexible triggering and decoding for advanced diagnostics

• High-end features at a competitive price point

• Reliable performance backed by a 5-year warranty



FAQ:

Q1: Does the MSO3054X support protocol decoding like CAN and SPI?
A1: Yes, it includes RS232/UART, I2C, SPI decoding by default, and optional support for CAN, LIN, FlexRay, and more.

Q2: Can I upgrade this scope with digital channels later?
A2: Yes, the unit supports 16 digital channels using the optional UT-M15 logic probe.

Q3: Is waveform generator built-in or optional?
A3: The dual-channel 50MHz arbitrary waveform generator is an optional module in this model.
