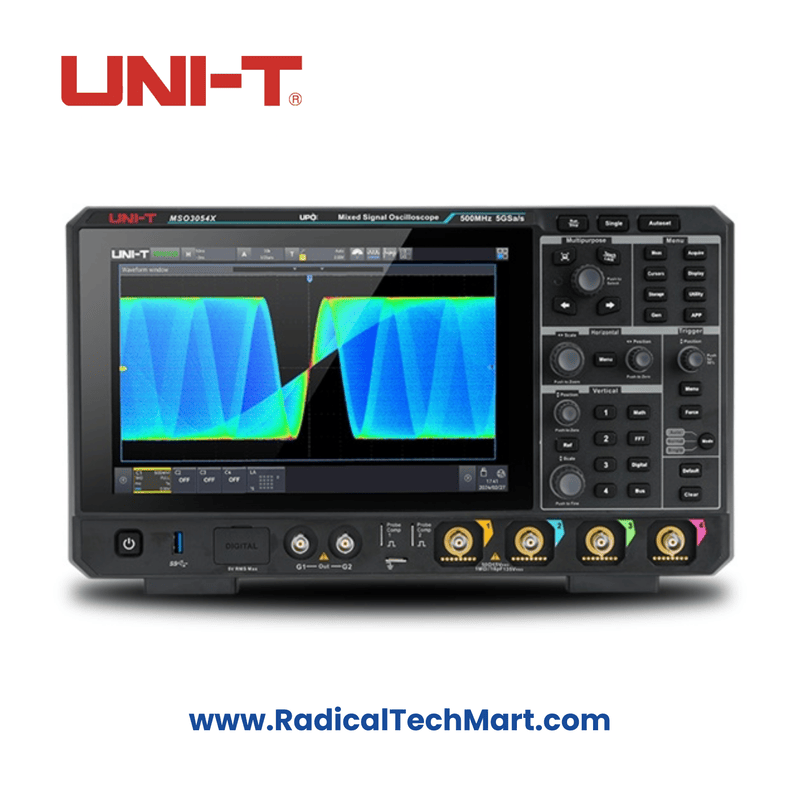

UNI-T MSO3054X Digital Oscilloscope, 4 Channel, 500MHz

The MSO3000X series mixed-signal oscilloscope is a high-performance instrument designed for advanced signal analysis. The key features and specifications include:

• Bandwidth: The oscilloscope offers a bandwidth of 500 MHz, suitable for a wide range of applications.
• Analog Channels: It is equipped with 4 analog channels for detailed signal capture and analysis.
• Real-Time Sample Rate: The real-time sample rate reaches up to 5 GSa/s, providing high-speed data capture for precise waveform observation.
• Memory Depth: With a maximum memory depth of 500 Mpts per channel, it allows for capturing long-duration waveforms at high resolution.
• Waveform Capture Rate: The oscilloscope can capture waveforms at an impressive rate of up to 2,000,000 waveforms per second (wfms/s), ensuring rapid updates for accurate signal analysis.
• Digital Channels: The MSO3000X features 16 digital channels for mixed-signal analysis, allowing for the simultaneous observation of analog and digital signals.
• Waveform Generator: An optional 50 MHz dual-channel waveform generator is available for signal generation tasks.
• Ultra Phosphor 3.0 Technology: The oscilloscope incorporates the exclusive Ultra Phosphor 3.0 technology, providing a 256-level brightness colour temperature display for enhanced waveform clarity.
• Advanced Triggering and Decoding: It supports 12 advanced trigger types, 12 types of serial bus triggering and decoding, and features an advanced digital trigger system with a trigger accuracy of 10 ps.
• Advanced Functions and Analysis: The oscilloscope offers advanced analysis capabilities, including spectrum analysis, power analysis, histograms, waveform recording, enhanced resolution, pass/fail testing, search, and navigation.
• Measurement and Mathematical Functions: It comes with extensive measurement and mathematical calculation functions for detailed signal evaluation.
• User Interface: The oscilloscope features a 10.1-inch capacitive touchscreen that supports various gestures for common waveform operations, making it intuitive and user-friendly.
• Webserver: A built-in Webserver enables remote control, offering flexibility for remote monitoring and operation.

The MSO3000X series is a versatile and powerful oscilloscope ideal for a variety of applications, including communications, embedded system design, power electronics, and research. The warranty is provided according to the brand's policy.
