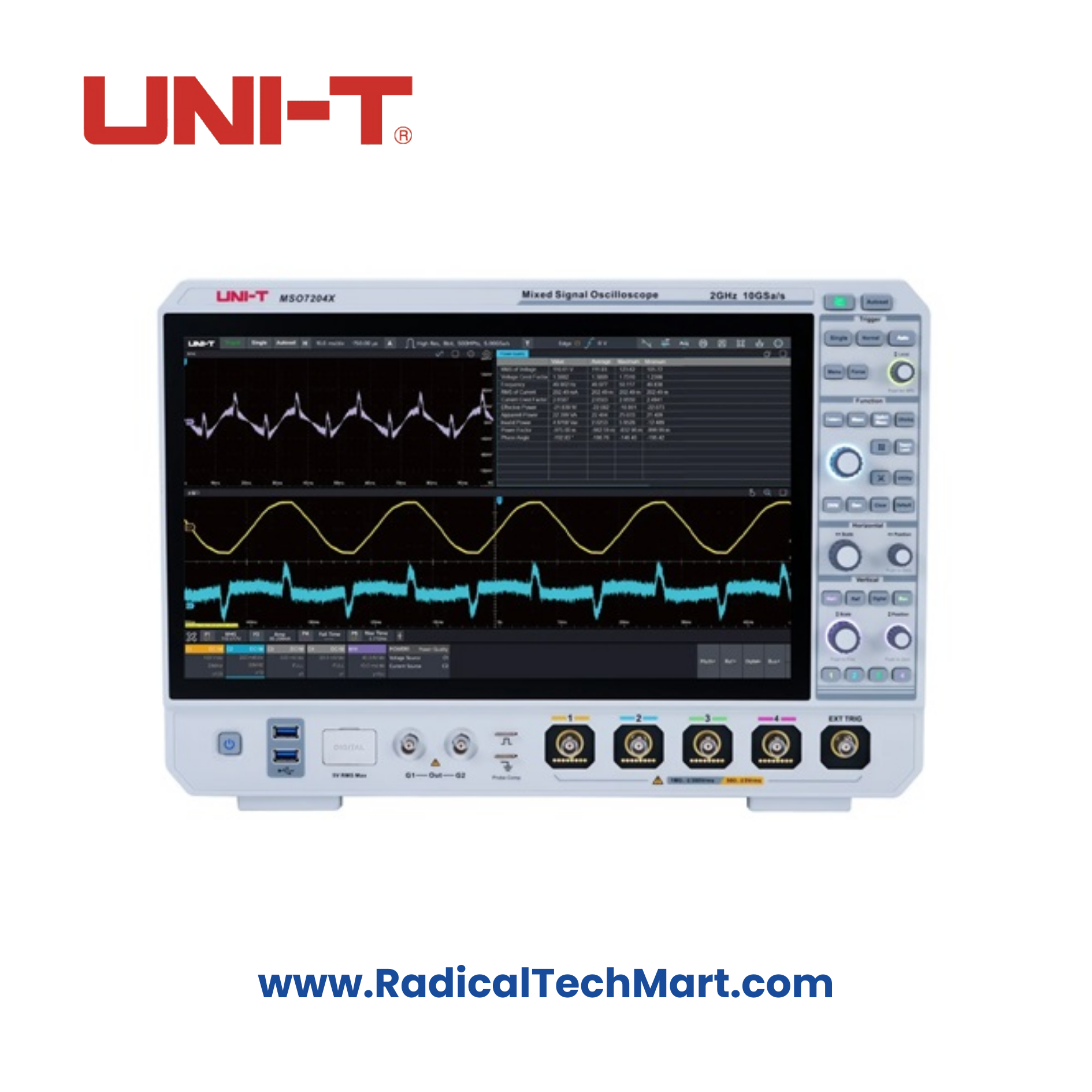

The UNI-T MSO7204X is a 2 GHz, 4-channel mixed signal oscilloscope integrating logic analysis, waveform generation, and spectrum analysis into a single, cost-effective platform.
Product Summary
The UNI-T MSO7204X delivers 10 GSa/s real-time sampling, 1 Gpt deep memory and up to 800 k wfms/s capture-rate in UltraAcq® mode, integrating nine lab-grade instruments into a single 15.6″ HD touch-screen package.
Key Features
2 GHz analog bandwidth, 4 analog + 16 digital channels
10 GSa/s (analog) & 1.25 GSa/s (digital) sampling; 1 Gpt record length
9-in-1 functions: scope, logic-analyzer*, AWG*, spectrum, DVM, freq-counter, protocol, jitter/eye*, power-analysis*
60 MHz dual-channel AWG & >200 built-in arbitrary waveforms
22 advanced triggers + zone triggering; mask & limit test standard
Built-in protocol decode (UART, I²C, SPI) with options for CAN/LIN/FlexRay/CAN-FD, SENT, AUDIO, etc.
Ultra Phosphor 3.0 display with 256-level intensity grading
Interfaces: USB 3.0 host/device, LAN, HDMI, SCPI & WebServer remote control
*options
Applications
High-speed digital & embedded-system debug
Automotive and aerospace serial-bus validation
RF/EMI pre-compliance & spectrum analysis
Power-electronics design & switching-loss analysis
University research & advanced lab courses
Product Benefits
Bench-space saver: replaces nine standalone instruments
Catch elusive glitches: 2 M wfms/s sequence mode + deep memory
Touch-first UI: 15.6″ capacitive multi-touch streamlines workflow
Future-proof: field-upgradeable protocol & analysis options
Cost-effective: premium performance with 3-year warranty
FAQ
Q1. How many digital channels are available?
A1. Up to 16 digital channels when the optional MSO7000X-LA pod is connected.
Q2. Is the logic-analyzer pod included?
A2. The LA pod is an optional accessory; order code UT-M15.
Q3. What warranty does UNI-T provide?
A3. The MSO7204X comes with a 3-year standard manufacturer warranty.
