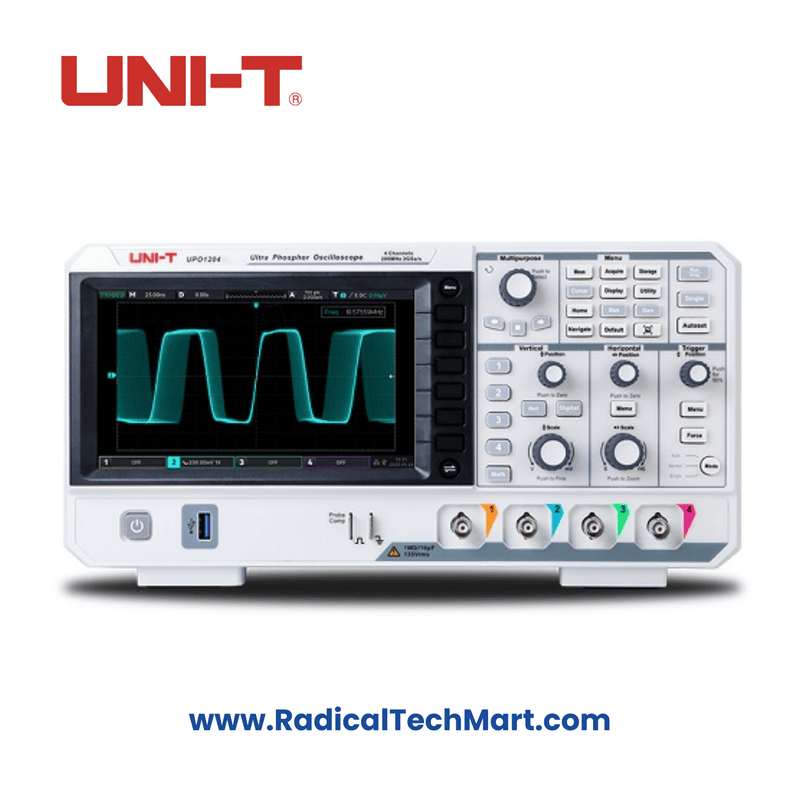

UNI-T UPO1104 Oscilloscope, 100 Mhz 4 Channel

The UPO1104 digital oscilloscope features UNI-T's advanced digital 3D technology, Fast Acquire Phosphor, providing enhanced performance and functionality. It is designed with a bandwidth of 100 MHz and offers a high real-time sampling rate of 2 GSa/s. This oscilloscope comes with four standard channels and supports an independent DVM (digital voltmeter) module. It boasts rich trigger and bus decoding functions, as well as full-memory hardware real-time decoding capabilities, making it versatile for a wide range of applications.

Key specifications include:

• Bandwidth: 100 MHz
• Channels: 4
• Sampling Rate: 2 GSa/s
• Waveform Capture Rate: 150,000 wfm/s, with Fast Acquire mode offering up to 500,000 wfm/s
• Storage Depth: 56 Mpts
• Vertical Range: 8-bit, with a vertical scale range from 500μV/div to 20 V/div at 1 MΩ
• Gain Accuracy:
  • For signals <10mV: ±4.0% full scale
  • For signals ≥10mV: ±3.0% full scale
• Time Base Range: 2 ns/div to 1000 s/div
• Frequency Meter: 7 digits
• Bus Analysis: RS232/UART, I2C, SPI
• Auto Measurements: 36 types
• Waveform Recording Capacity: 120,000
• FFT Points: 1Mpts

Connectivity options include USB Host, USB Device, and LAN. The oscilloscope is backed by a 3-year warranty and is ideal for use in various fields, such as communication, semiconductor, computer, integrated circuit design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, and research and development or education.
