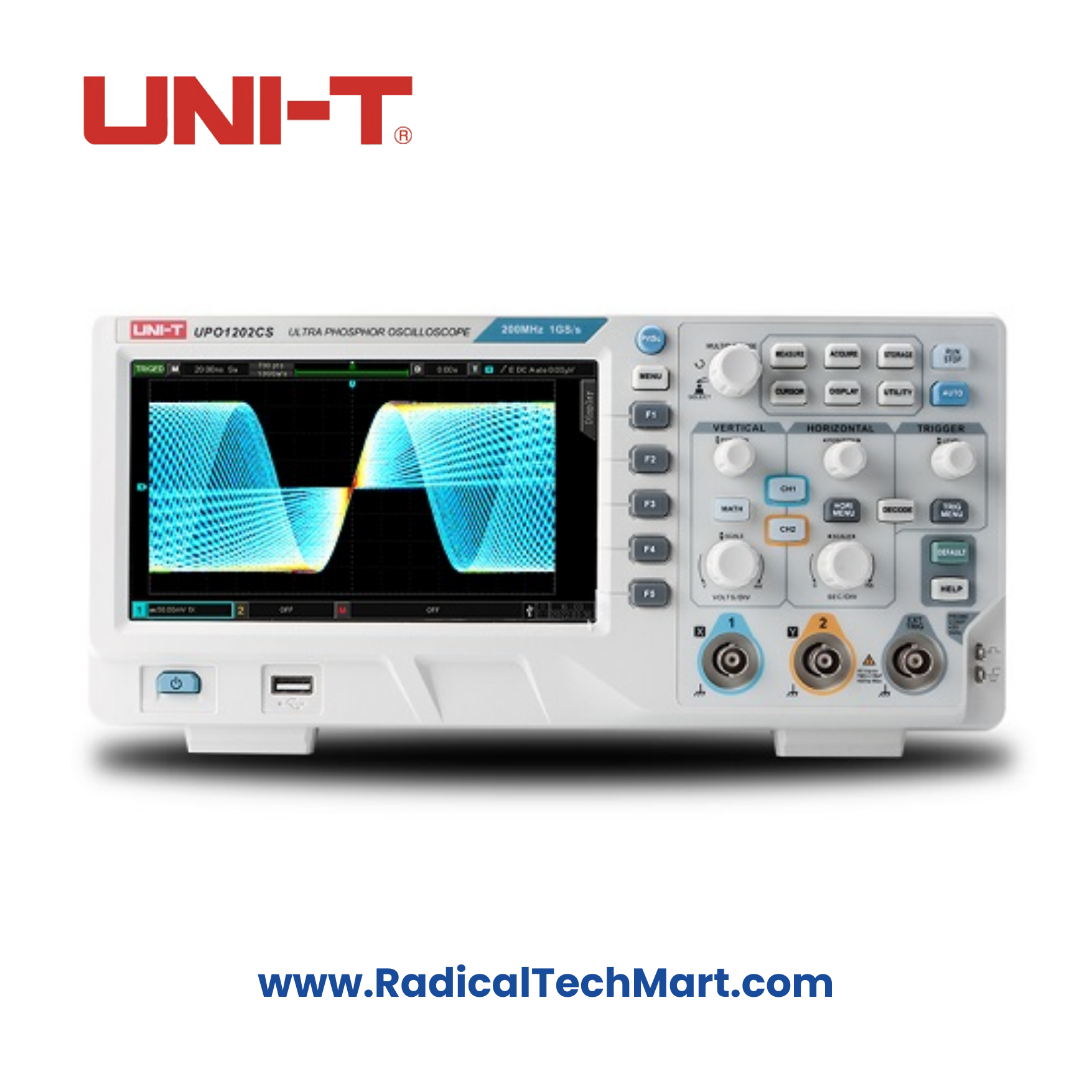

UNI-T UPO1202CS Oscilloscope 2 Channel, 200MHz

The UPO1202CS is a multi-function, cost-effective digital phosphor oscilloscope that utilizes parallel digital signal processing technology, significantly enhancing data processing speed and waveform capture rate. Its original Ultra Phosphor technology allows the oscilloscope to display the cumulative effect of the tested signal as a multi-layered afterglow. This advanced persistence feature enables the presentation of three-dimensional waveform data, incorporating amplitude, time, and signal intensity, which is superior to traditional digital storage oscilloscopes.

Key features of the UPO1202CS include:

• Bandwidth: 200 MHz
• Channels: 2
• Real-Time Sample Rate: 1 GSa/s
• Maximum Memory Depth: 56 Mpts
• Waveform Capture Rate: 500,000 wfms/s
• Trigger Support: RS232, I2C, SPI, CAN, and LIN
• Hardware Decoding (Optional): RS232, I2C, SPI, CAN, and LIN
• Vertical Scale: 1 mV/div to 20 V/div
• Low Background Noise: <100 μVrms
• FFT Function: Enhanced with 1M points, supporting frequency setting, waterfall diagrams, detection settings, and marker measurements
• Automatic Measurements: 36 waveform parameters
• Rich Trigger Functions: Including edge, pulse width, video, slope, runt, overshoot, delay, timeout, duration, setup and hold, Nth edge, and pattern trigger
• Dual-Channel Independent Fluorescence Display: Multi-scopes support
• Independent 7-Bit Hardware Frequency Counter: Multi-channel support
• DVM: Dual-channel independent AC and DC true RMS measurement
• Waveform Arithmetic Functions: Including FFT, addition, subtraction, multiplication, division, digital filtering, logic operations, and advanced operations
• Rich Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail)
• SCPI Programmable Instrument Standard Command: Supported
• Web Access and Control: Supported
• Display: 7" WVGA (800 x 480) TFT LCD

The oscilloscope comes with a 3-year warranty and provides robust performance for a variety of testing and measurement needs.
