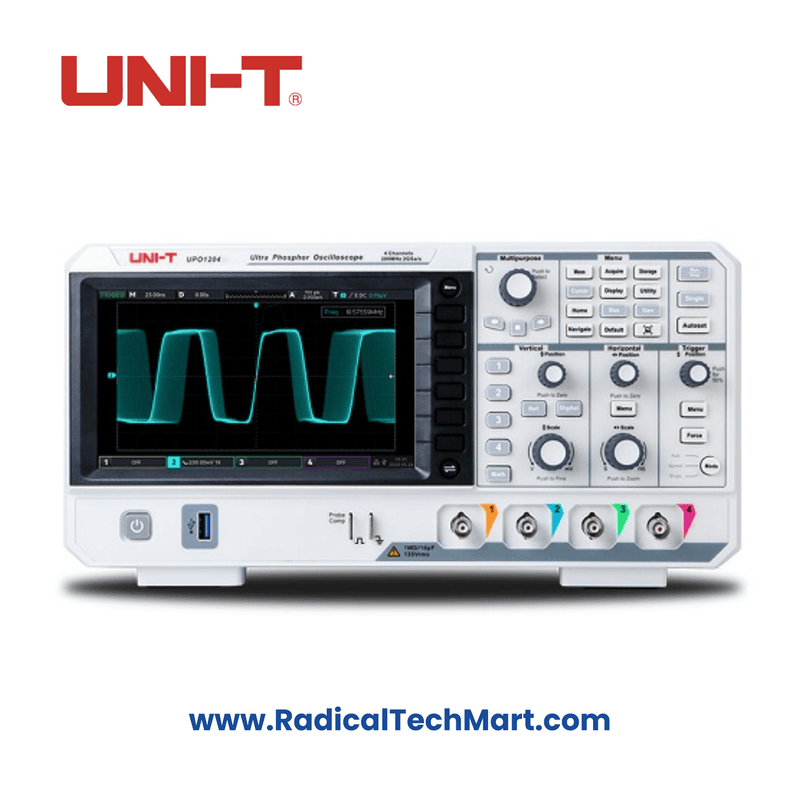

UNI-T UPO1204 Digital Oscilloscope, 200 Mhz 4 Channel

The UPO1204 digital oscilloscope from UNI-T is equipped with advanced features designed to meet the needs of various industries. It incorporates UNI-T's newly developed Fast Acquire Phosphor technology, offering superior performance in capturing waveforms. The key specifications of the oscilloscope are as follows:

• Bandwidth: The oscilloscope is available with a bandwidth of up to 200 MHz.
• Channels: It comes with 4 channels as standard, enabling multi-channel signal analysis.
• Sampling Rate: The real-time sampling rate is as high as 2 GSa/s, ensuring high-speed data capture.
• Waveform Capture Rate: With a capture rate of 150,000 waveforms per second (wfm/s) in standard mode and 500,000 wfm/s in Fast Acquire mode, it provides rapid waveform updates for precise measurements.
• Storage Depth: The storage depth is an impressive 56 Mpts, allowing for the capture of extensive waveform data.
• Vertical Range: The oscilloscope has a vertical range of 1 MΩ, adjustable from 500μV/div to 20 V/div, enabling detailed signal observation.
• Gain Accuracy: The gain accuracy is ±4.0% full scale for signals below 10mV and ±3.0% full scale for signals 10mV or higher.
• Time Base Range: The time base range extends from 1 ns/div to 1000 s/div, making it suitable for both high-frequency and low-frequency measurements.
• Frequency Meter: It includes a 7-digit frequency meter for accurate frequency measurements.
• Bus Analysis: The oscilloscope supports bus analysis for RS232/UART, I2C, and SPI communication protocols.
• Auto Measurements: There are 36 automatic measurements available, streamlining the analysis process.
• Waveform Recording: The oscilloscope supports waveform recording with a capacity of 120,000 waveforms.
• FFT Points: It includes a 1Mpts FFT (Fast Fourier Transform) for frequency domain analysis.

The UPO1204 digital oscilloscope is suitable for a wide range of applications, including communication, semiconductor and integrated circuit design, industrial electronics, consumer electronics, automotive electronics, field maintenance, and research and development. The warranty for the oscilloscope is provided as per the brand's policy.
