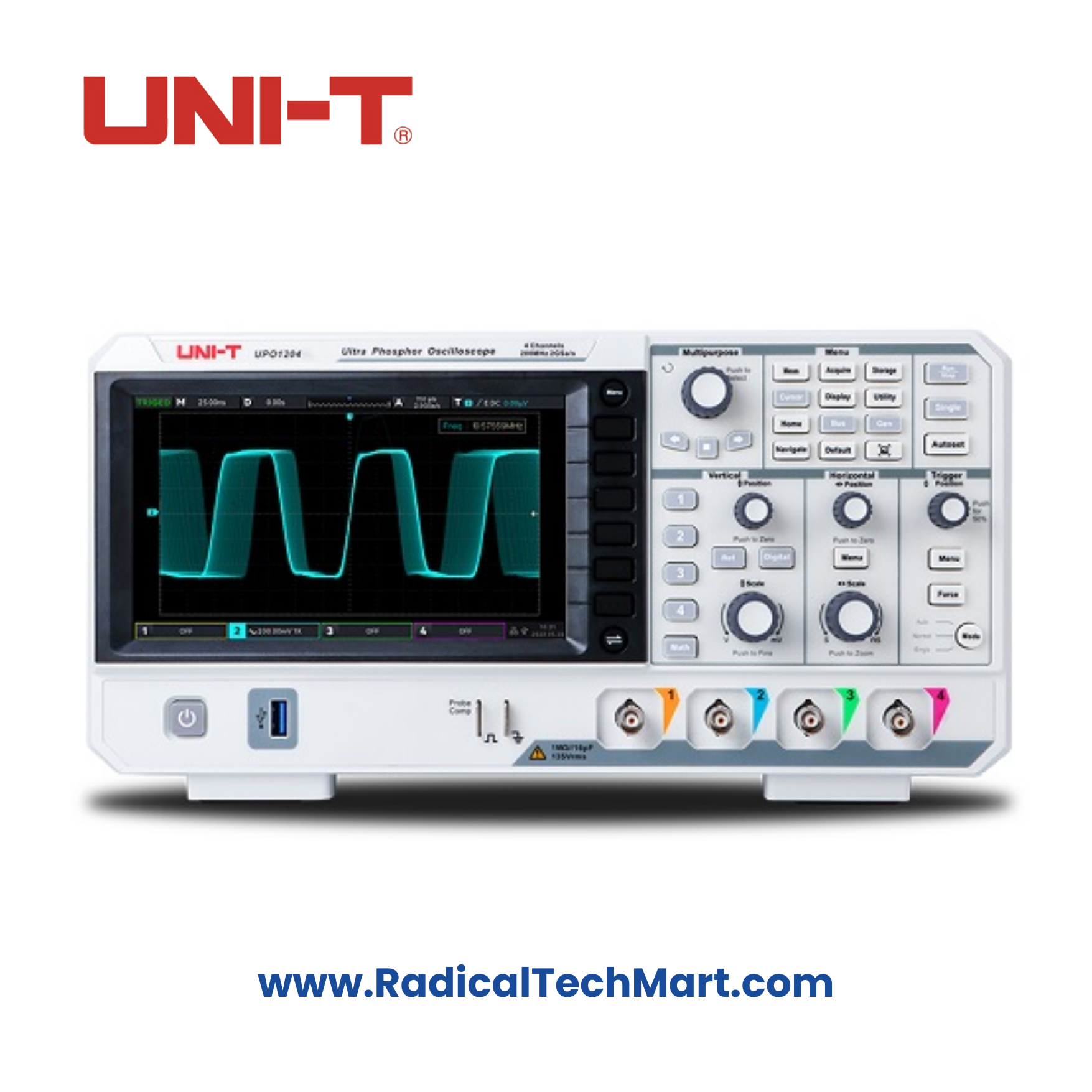

UNI-T UPO1204 Digital Oscilloscope 200MHz 4 Channel

Product Summary:
The UNI-T UPO1204 is a 200MHz, 4-channel digital oscilloscope with advanced Fast Acquire Phosphor technology, offering 2GSa/s sampling, deep memory, and rich triggering and decoding functions. Perfect for electronic diagnostics and R&D.

Key Features:

• 200MHz Bandwidth, 4 Channels

• 2 GSa/s Real-Time Sampling Rate

• 56 Mpts Memory Depth

• 150,000 wfm/s to 500,000 wfm/s Waveform Capture Rate

• RS232/UART, I2C, SPI Bus Decoding

• Independent Digital Voltmeter (DVM) Module

• Full-Memory Hardware Real-Time Decoding

• 36 Auto Measurements and 1M FFT Points



Application:

• Communication systems testing

• Semiconductor and IC design

• Computer and embedded systems debugging

• Automotive and industrial electronics maintenance

• R&D and educational lab setups



Product Benefits:

• Capture fast signals with high fidelity using Fast Acquire Phosphor

• Analyze complex signals easily with high sampling and memory depth

• Flexible triggering and decoding options for protocol debugging

• Portable and robust solution for field maintenance tasks

• User-friendly interface for both beginners and professionals



FAQs:

Q1: What is the maximum bandwidth supported by UPO1204?
A1: The UNI-T UPO1204 supports up to 200MHz bandwidth.

Q2: Can I decode serial communication protocols like I2C and UART?
A2: Yes, it supports hardware decoding for RS232/UART, I2C, and SPI protocols.

Q3: How many channels does the UPO1204 offer?
A3: It comes with 4 standard channels for multi-signal waveform analysis.
