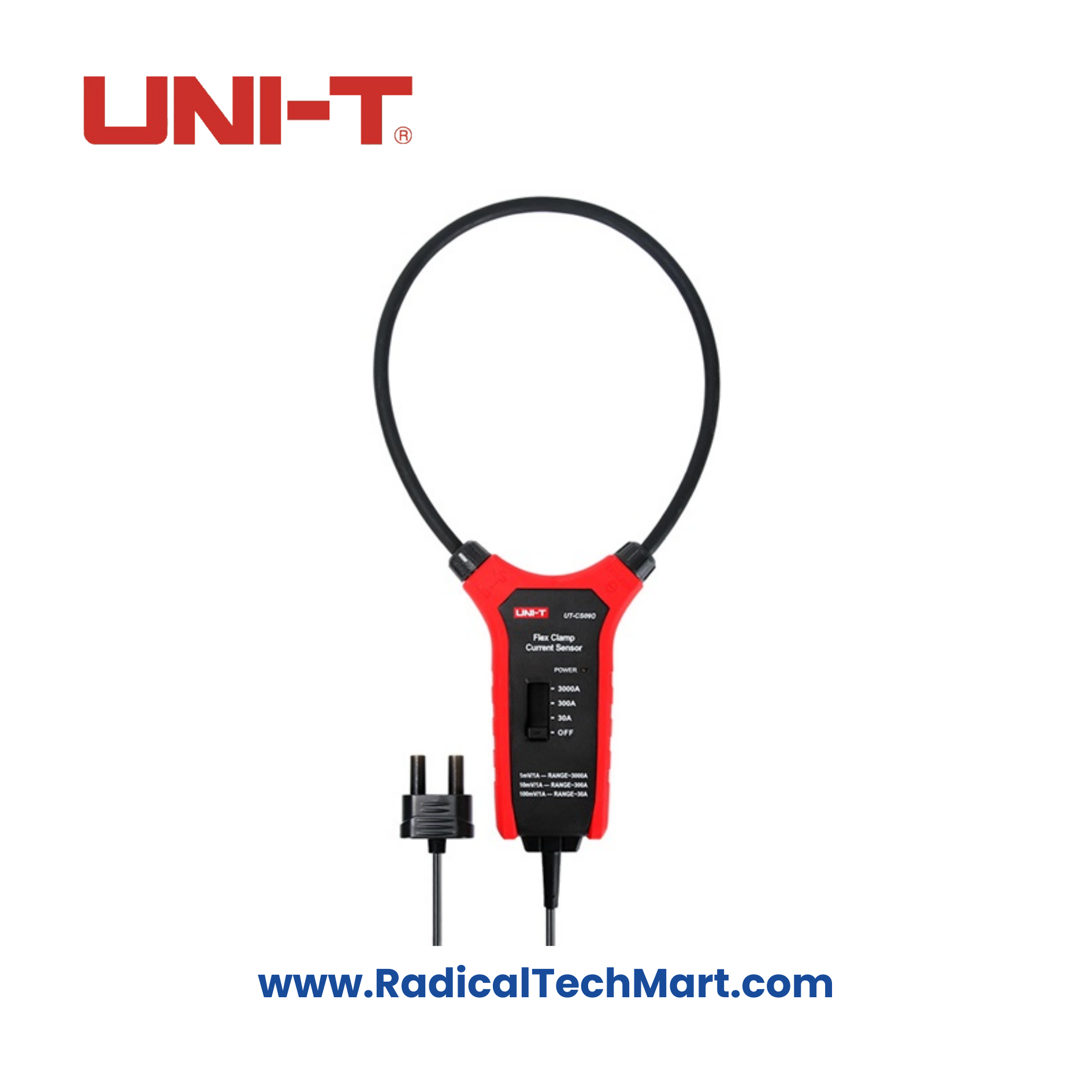

Uni-T UT-CS09D Flex Clamp Sensor

Product Summary:
The Uni-T UT-CS09D is a flexible Rogowski coil-based clamp sensor engineered to measure AC currents up to 3000A in confined areas. With wide frequency response and robust build, it’s an essential accessory for professional electricians using compatible clamp meters like UT206B and UT208B.

Key Features:

• Measures AC current from 1.5A to 3000A

• Flexible clamp size: 45.7cm (18 inches)

• Frequency response: 45Hz–500Hz

• Drop-proof up to 1 meter

• Strong and secure terminal connection

• Compatible with UT206B/208B for direct current display

• CAT IV 600V safety rated

• Includes BNC adapter and batteries

• Compact and lightweight (only 260g)



Applications:

• Current measurement in narrow switchboards or confined industrial spaces

• Troubleshooting and preventive maintenance in electrical panels

• Temporary current monitoring for load studies

• Installation verification in energy audits

• Electrical testing during commissioning



Product Benefits:

• Enables non-intrusive, flexible current measurement

• Eliminates need to disconnect cables or open panels

• Lightweight and portable – ideal for field engineers

• Wide range from 30A to 3000A makes it versatile

• Ensures safety with CAT IV 600V protection



FAQs:

Q1: What is the measurement range of the UT-CS09D?
A1: It can measure AC current from 1.5A to 3000A with high accuracy using Rogowski coil technology.

Q2: Is the UT-CS09D compatible with all clamp meters?
A2: No, it is designed to work directly with UT206B and UT208B clamp meters via BNC connection.

Q3: Can this be used in outdoor conditions?
A3: It can operate in temperatures from 0°C to 50°C, but it is not weatherproof. Avoid moisture exposure.
