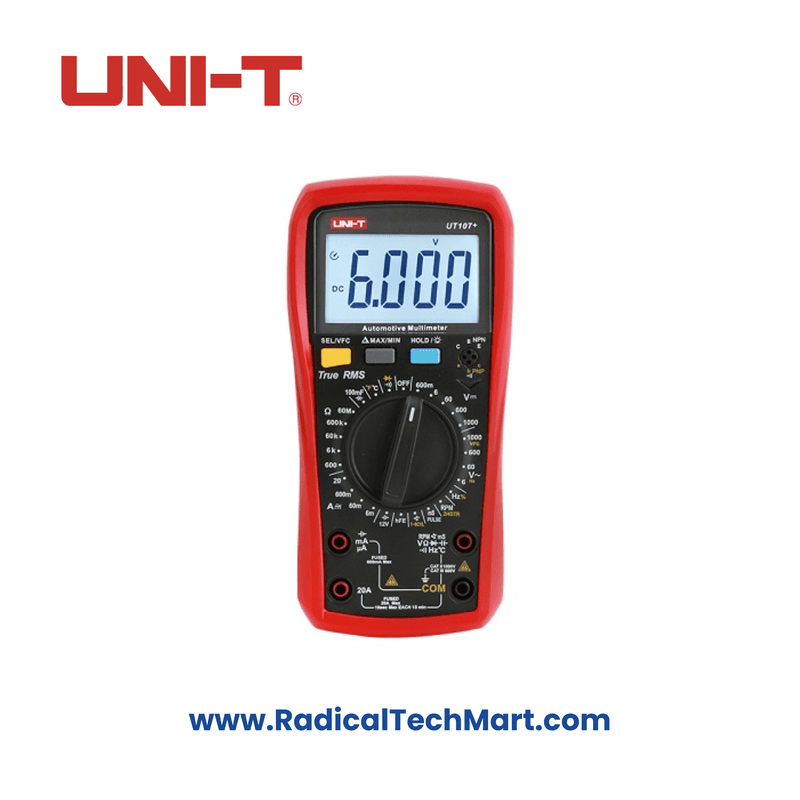

UNI-T UT107+ Automotive Multimeter

The UT107+ Automotive Multimeter offers updated measurement functions, improved accuracy, and a durable meter shell suitable for testing both conventional and hybrid vehicles. It combines all the essential features of a traditional multimeter with additional functions such as RPM, dwell angle, pulse width, and battery testing.

Key features include:

• True RMS measurement for accurate readings across various applications.
• Voltage measurement: 1000V AC/DC.
• Current measurement: 20A AC/DC (with a maximum of 20A for 10 seconds).
• VFC (Variable Frequency Converter) mode: 1000V AC/DC, ideal for measuring on variable-frequency motor drives, water pumps, and HVAC systems.
• Safety: Meets CAT II 1000V / CAT III 600V safety standards.
• Additional functions: Battery test, capacitance, pulse width, temperature, resistance, frequency, and more.
• Display: 6000 counts with a backlight for easy visibility.
• Temperature measurement: Ranges from -40°C to 1000°C (±1.0%+3) or -40°F to 1832°F (±1.5%+5).
• Frequency range: 10Hz to 10MHz (±0.1%+5).
• Dwell angle: Adjustable for 1 to 8 cylinders (±3.0%+5).
• RPM measurement: For 2-stroke and 4-stroke engines.
• Resistance and Capacitance: Wide range of measurement capabilities.
• Diode/Transistor testing, Duty cycle, Data hold, and Relative mode are supported.
• Warranty: 1-year warranty.

This versatile multimeter is designed for automotive professionals and electrical maintenance, providing precise measurements across a wide range of applications.
