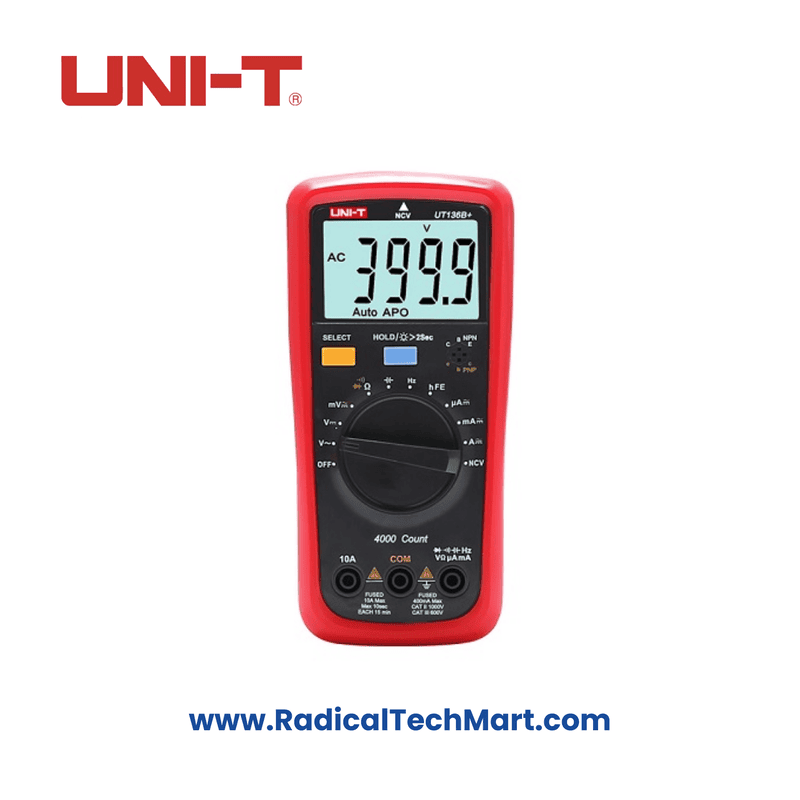

UNI-T UT136B+ Digital Multimeters

The UT136+ series digital multimeter is a new-generation device featuring innovative industrial design, offering enhanced durability and accuracy. Below are the key highlights of this product:

• Durability: Engineered with a 3mm protective sleeve, the multimeter is drop-proof up to 2 meters.
• Display: A large LCD screen ensures clear readings, with a quick sampling rate of 4 times per second for accurate measurements.
• Safety: Designed to work safely in CAT II 1000V and CAT III 600V environments.
• Measurement Range: Measures up to 1000V and 10A for both AC and DC voltage and current.
• Quick Capacitor Measurement: Capacitance values up to 40mF can be measured, with the ability to measure 1mF in just 4 seconds.
• Overload Alarm: Alerts the user to unsafe conditions to ensure device protection.
• Power Efficiency: Features low power consumption, auto power-saving mode, and a long battery life exceeding 500 hours.

Specifications:

• DC Voltage: Measures up to 1000V with ±(0.7%+3) accuracy.
• AC Voltage: Measures up to 1000V with ±(1%+3) accuracy.
• DC Current: Measures up to 10A with ±(1%+3) accuracy.
• AC Current: Measures up to 10A with ±(1.2%+5) accuracy.
• Resistance: Measures up to 40MΩ with ±(0.8%+2) accuracy.
• Capacitance: Measures up to 40mF with ±(3%+5) accuracy.
• Frequency: Measures in the range of 400Hz to 40mHz with ±(0.1%+4) accuracy.

The UT136+ series digital multimeter is backed by a 1-year warranty for added reliability.
