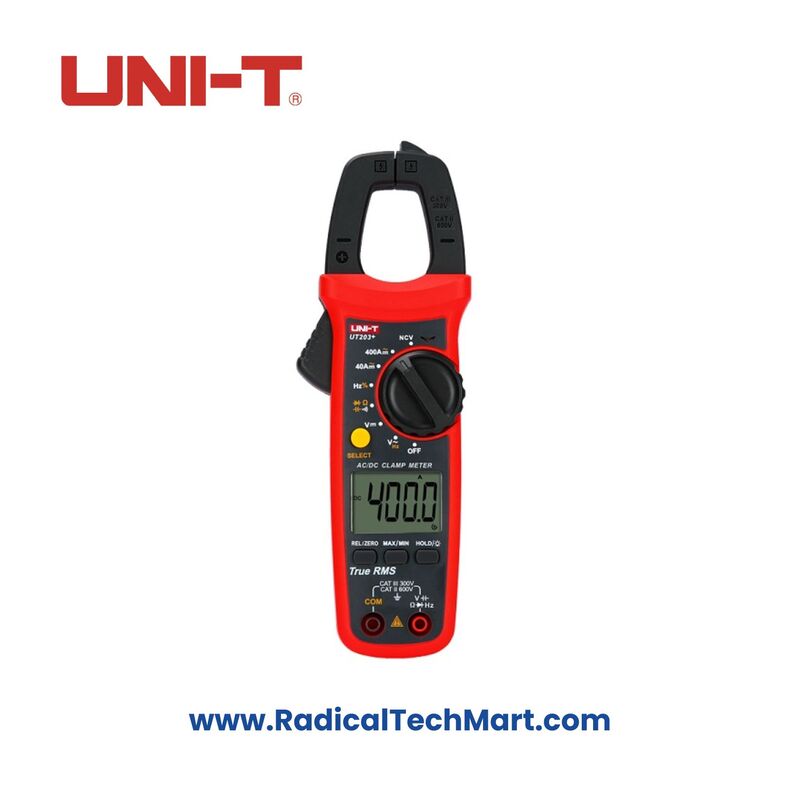

UNI-T UT203+ Digital Clamp Meter 400A AC/DC True- Rms

UNI-T Entry-Level Digital Clamp Meter (Upgraded Model)

The UNI-T digital clamp meter is an excellent choice for measuring residential and commercial power wires. This upgraded version offers enhanced features for precise measurement and ease of use.

Key Features:

• True RMS Sensing
• AC/DC Current Measurement: 40A/400A
• LCD Backlight Display
• Small Current Measurement

Specifications:

• AC Current (A): 40A/400A ±(2.5%+5)
• AC Current Frequency (Hz): 50Hz ~ 100Hz
• DC Current (A): 40A/400A ±(2.5%+5)
• AC Voltage (V): 600V ±(0.8%+5)
• AC Voltage Frequency (Hz): 10Hz ~ 60kHz ±(0.5%+2)
• DC Voltage (V): 600V ±(0.5%+2)
• Resistance (Ω): 40MΩ ±(0.8%+2)
• Capacitance (F): 40mF ±(4%+5)
• Frequency (Hz): 10Hz ~ 10MHz ±(0.1%+4)
• Display Count: 4000
• Auto Range: Yes
• Jaw Opening: 28mm
• True RMS: Yes
• Non-Contact Voltage (NCV): Yes
• Continuity Test: Yes
• Diode Test: Yes
• Max/Min: Yes
• Relative Mode: Yes
• Zero Mode: Yes
• Data Hold: Yes
• Low Battery Indication: Yes
• Auto Power Off: Yes

General Characteristics:

• Power: 1.5V Battery (R03) x 2
• Display Size: 37mm x 25mm
• Product Color: Red and Grey
• Product Net Weight: 235g
• Product Size: 215mm x 63mm x 36mm
• Standard Packing: Gift box, carrying bag, English manual

Warranty:

• 1 Year Warranty (Brand)
