UNI-T UT206A+ Clamp Meter - 1000A AC

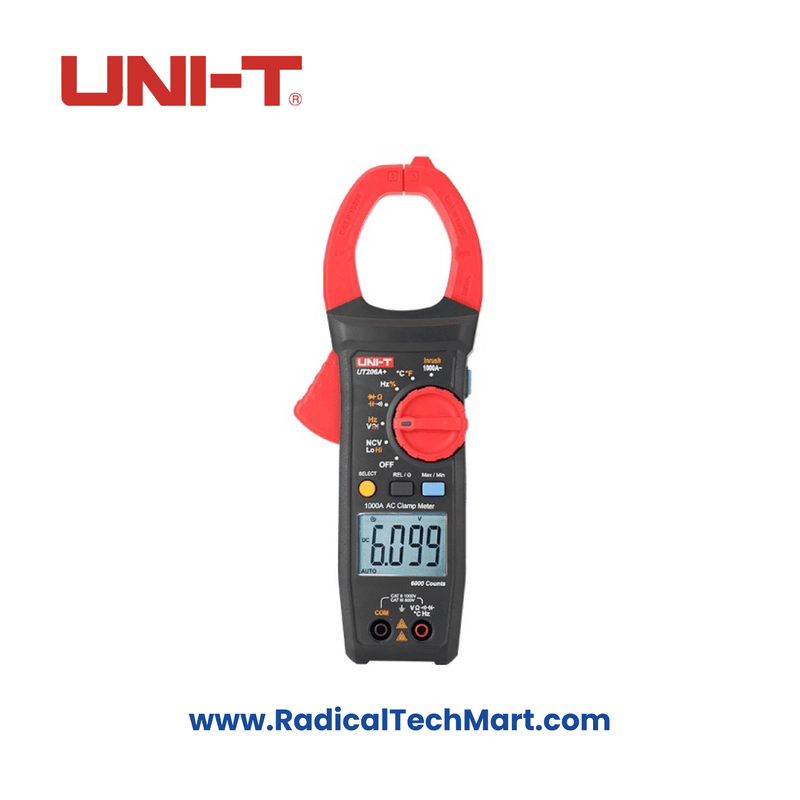

The UNI-T UT206A+ is a versatile clamp meter designed for professional and industrial use. Here are its key features and specifications:

Key Features:

1. High Current Measurement: Measures AC currents up to 1000A.
2. Voltage Measurement: Supports up to 1000V for both AC and DC.
3. Inrush Current Measurement: Measures inrush current up to 600A with ±(5%+10) accuracy.
4. Temperature Measurement: Measures temperatures ranging from –40℃ to 1000℃ (–40℉ to 1832℉).
5. NCV Function: Non-contact voltage detection for added safety.
6. Resistance, Capacitance, and Frequency:
   • Resistance: Up to 60MΩ with ±(0.8%+2) accuracy.
   • Capacitance: Up to 60mF with ±(4%+5) accuracy.
   • Frequency: 10Hz to 10MHz with ±(0.1%+4) accuracy.
7. AC Voltage Frequency Range: Measures from 10Hz to 10kHz with ±(1.0%+5) accuracy.
8. Jaw Opening: Supports cables with a maximum diameter of 45mm.
9. User-Friendly Design:
   • Backlit display for low-light conditions.
   • Built-in flashlight for enhanced visibility.
   • Data hold function for convenient readings.
   • Max/Min recording for monitoring fluctuations.
10. Durability and Safety:
    • Auto power-off function after approximately 15 minutes of inactivity.
    • Low battery indication to prevent sudden power loss.
    • Safety rated CAT II 1000V / CAT III 600V.

Specifications:

• Display Count: 6099.
• Accuracy:
  • AC Current: ±(1.5%+5).
  • AC Voltage: ±(1.0%+2).
  • DC Voltage: ±(0.7%+3).
• Duty Cycle: Supported for testing signal patterns.
• Diode and Continuity Test: Includes audible alerts for continuity checks.

The UNI-T UT206A+ combines precision, safety, and convenience, making it an excellent choice for electricians, technicians, and industrial professionals. Warranty coverage is provided as per the brand’s policy.
