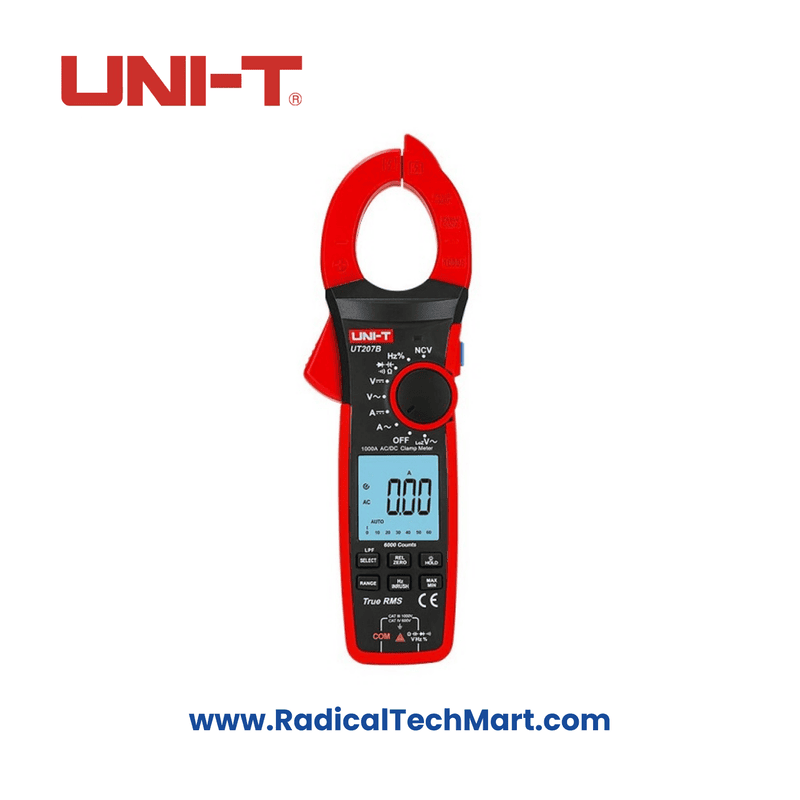

UNI-T UT207B True RMS Digital Clamp Meter- 1000A AC/DC

The UT200 series consists of 6000-count digital clamp meters that feature auto range, a large LCD, true RMS, autoscale memory, and non-contact voltage (NCV) functions. These meters meet the CAT III 1000V and CAT IV 600V safety ratings and are CE/ETL certified.

The UT207B model includes a LoZ mode to eliminate 'ghost' voltages, a Low Pass Filter (LPF) ACV function for measuring inverter and VFD voltage, and an inrush current mode for capturing transient current. Key features include:

• Flashlight button: A short press turns the flashlight on or off.
• Inrush current capture: For measuring transient currents.
• NCV (Non-contact voltage): Equipped with a multi-segment display and audio/visual alarms.
• True RMS: Provides accurate readings for varying signal shapes.
• Auto backlight: Activates for better visibility in low light.
• Function retention: Retains the selected function even after powering off.

The meter’s specifications are as follows:

• AC Current (A): Measures up to 1000A with a ±(2%+5) accuracy.
• DC Current (A): Measures up to 1000A with a ±(2%+5) accuracy.
• AC Voltage (V): Measures from 6V to 1000V, with an accuracy of ±(1%+8).
• DC Voltage (V): Measures from 600mV to 1000V, with accuracies ranging from ±(0.5%+5) to ±(0.8%+3).
• Low Pass Filter (LPF ACV): For accurate measurements of inverter and VFD voltage, up to 1000V with a ±(2%+5) accuracy.
• Resistance (Ω): Measures up to 60MΩ with an accuracy range of ±(1%+3) to ±(2%+8).
• Capacitance (F): Measures up to 60mF with accuracies of ±(4%+5) to ±(10%+9).
• Low voltage frequency (Hz): Measures from 10Hz to 1MHz with a ±(0.1%+3) accuracy.
• Duty Cycle (%): Measures from 10% to 90% with a ±(2.6%+7) accuracy.

Additional features include:

• Jaw opening: 42mm
• Current frequency: 50Hz to 60Hz
• High voltage frequency: 40Hz to 400Hz
• Analog bar: 31 segments
• Auto power off: The meter automatically turns off when current is below 50μA.
• Continuity test, diode test, relative mode, and data hold: Available for troubleshooting and capturing readings.
• MAX/MIN: For measuring peak values.
• Zero mode: For zeroing the display.
• Auto/Manual range selection: Allows flexibility in measurement.
• Low battery indication: Alerts when the battery is low.

The meter is powered by three 1.5V R03 batteries and has a large 43mm x 45mm display. It comes in a red and grey color, and the standard accessories include test leads, batteries, and a carrying bag, with the product being packaged in an individual box.

The UT200 series meters are covered by a 1-year warranty, providing reliable performance for a variety of electrical measurements.
