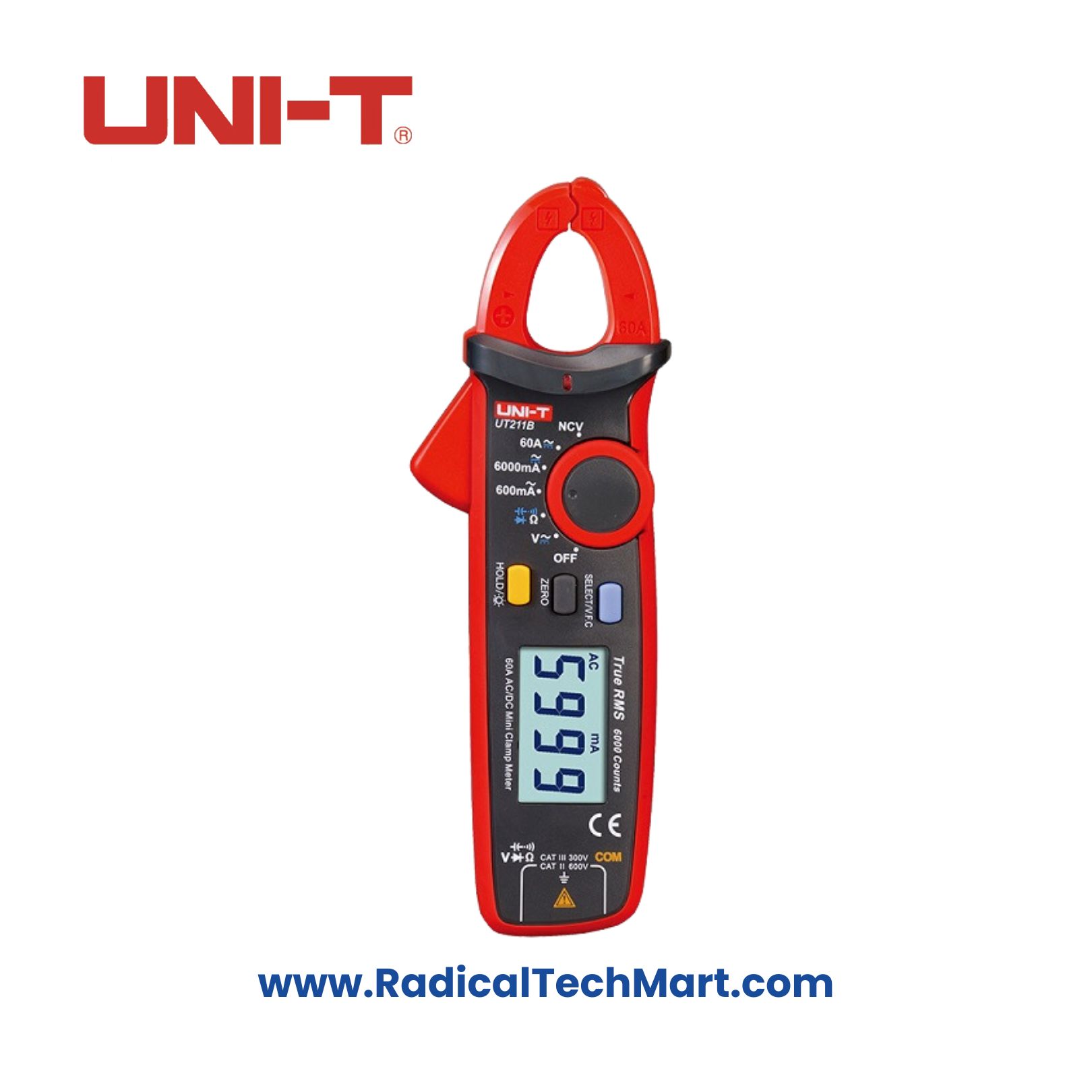

UNI-T UT211B mini 60A AC/DC True RMS Clamp Meter

The TUNI-T UT211B is a compact, high-precision 60A True RMS digital clamp meter, ideal for troubleshooting small current circuits (mA). It features auto-ranging, zero mode, and several advanced functions for accurate measurements.

Key Features:

• Max AC Current Resolution: 0.1mA
• Max DC Current Resolution: 1mA
• True RMS Measurement: Ensures accurate readings for non-sinusoidal waveforms.
• 17mm Jaw Size: Suitable for measuring a wide range of conductors.
• Data Hold Function: Locks the current reading on the display for convenience.
• LCD Backlight: Easy to read measurements even in low-light conditions.
• VFC Low Pass Filter: Helps in filtering out high-frequency noise for more accurate readings.
• Auto Power Off: Powers off after approximately 15 minutes to conserve battery life.
• Low Battery Indication: Alerts when battery power is low (below 2.5V).
• Continuity Buzzer: Audible indicator for continuity testing.
• Zero Mode: Allows zeroing of readings for precise measurements.
• Non-contact Voltage (NCV): Detects the presence of AC voltage without direct contact.

Measurement Specifications:

• AC Current: 600mA / 6000mA / 60A ±(1.5% + 10)
• DC Current: 6000mA / 60A ±(2% + 3)
• AC Voltage: 6V / 60V / 600V ±(0.8% + 3)
• DC Voltage: 600mV / 6V / 60V / 600V ±(0.7% + 3)
• Resistance: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ ±(0.8% + 2)
• Capacitance: 6.2nF ~ 62mF ±(4% + 5)
• Diode Testing: Approx. 3.0V
• Input Impedance for DCV: ≥10MΩ

Power and Accessories:

• Power Supply: AAA 1.5V x 2 batteries (included)
• Standard Accessories: Batteries, Test Lead

Dimensions and Weight:

• LCD Size: 39.3mm x 26.5mm
• Product Weight: 170g

Warranty:

• 1-Year Warranty
