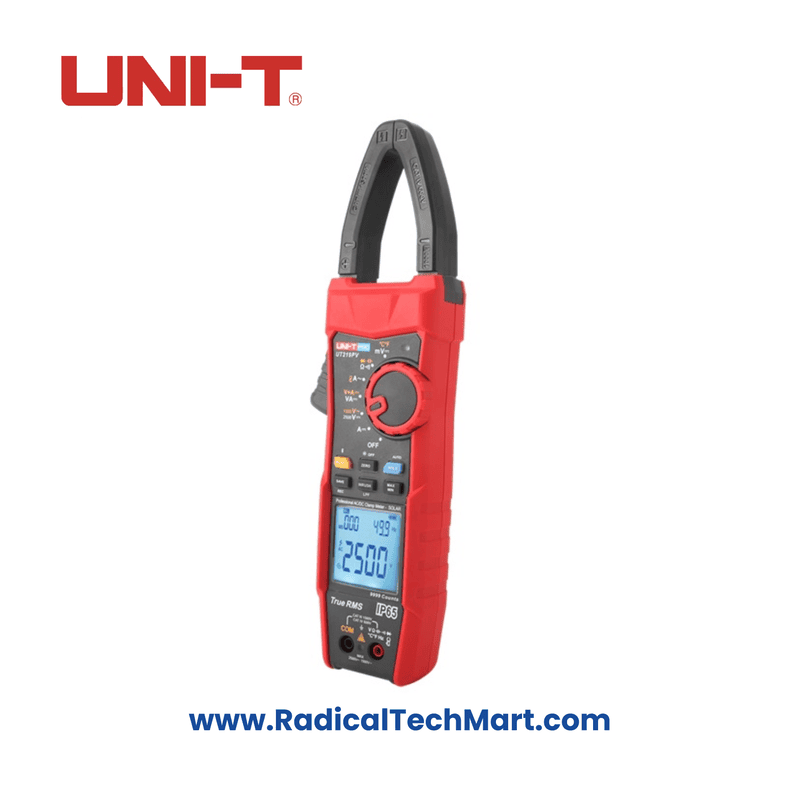

UNI-T UT219PV Solar Professional AC/DC Clamp Meter

The UT219PV is an advanced AC/DC clamp meter designed for use in high-voltage photovoltaic environments, offering exceptional accuracy and performance. Key features include:

1. 35mm Ultra-thin Jaw: Ideal for use with inverters or combiner boxes.
2. Voltage Measurement: Measures AC voltage up to 1500V and DC voltage up to 2500V.
3. Current Measurement: Measures both AC and DC current up to 1000A.
4. Power Measurement: Supports DC power measurement up to 2500KVA.
5. External Clamp Sensor: Compatible with the UT-CS09D (AC 3000A) for higher current measurements (optional).
6. Solar Panel Polarity Indication: Provides audible and visual alarms when the DC voltage is below -10V.
7. Bluetooth App: For wireless data monitoring and analysis.
8. Auto Backlight & Auto Power Off: Enhances usability and energy efficiency.
9. Certifications: CE (EMC, LVD), cETLus, RoHS certified for safety and quality.
10. Safety Rating: CAT III 1500V and CAT IV 600V, ensuring high safety standards for high-voltage applications.
11. IP65 Protection: Dust-tight and water-resistant, suitable for harsh environments.
12. Measurement Range and Accuracy:

• Current (AC): 999.9A, with accuracy of ±(2.0%+5) for 40Hz100Hz, and ±(2.5%+5) for 100Hz1000Hz.
• Current (DC): 999.9A, with accuracy of ±(2.0%+5).
• Voltage (AC): 999.9V/1500V, with accuracy of ±(1.0%+5) for 40Hz~1000Hz.
• Voltage (DC): 999.9V/2500V, with accuracy of ±(1.0%+5).
• Voltage (DC mV): 999.9mV, with accuracy of ±(1.0%+5).
• AC Voltage with Low Pass Filter (LPF): 999.9V, with accuracy of ±(2.0%+9).
• AC Current with LPF: 999.9A, with accuracy of ±(2.5%+9).
• Power (DC): 999.9 kVA/2500 kVA, with accuracy of ±(2.0%+20).
• Frequency (A & V): 5.0Hz to 999.9Hz, with accuracy of ±(0.5%+5).
• Resistance (Ω): 999.9Ω/9.999KΩ/99.99KΩ, with accuracy of ±(1.0%+5).
• Capacitance (F): 100.0μF/1000μF, with accuracy of ±(1.0%+5).
• Temperature: -40°C to 400°C (-40°F to 752°F), with accuracy of ±(1.0%+30) or ±(1.0%+60).

Warranty: As per brand policy.
