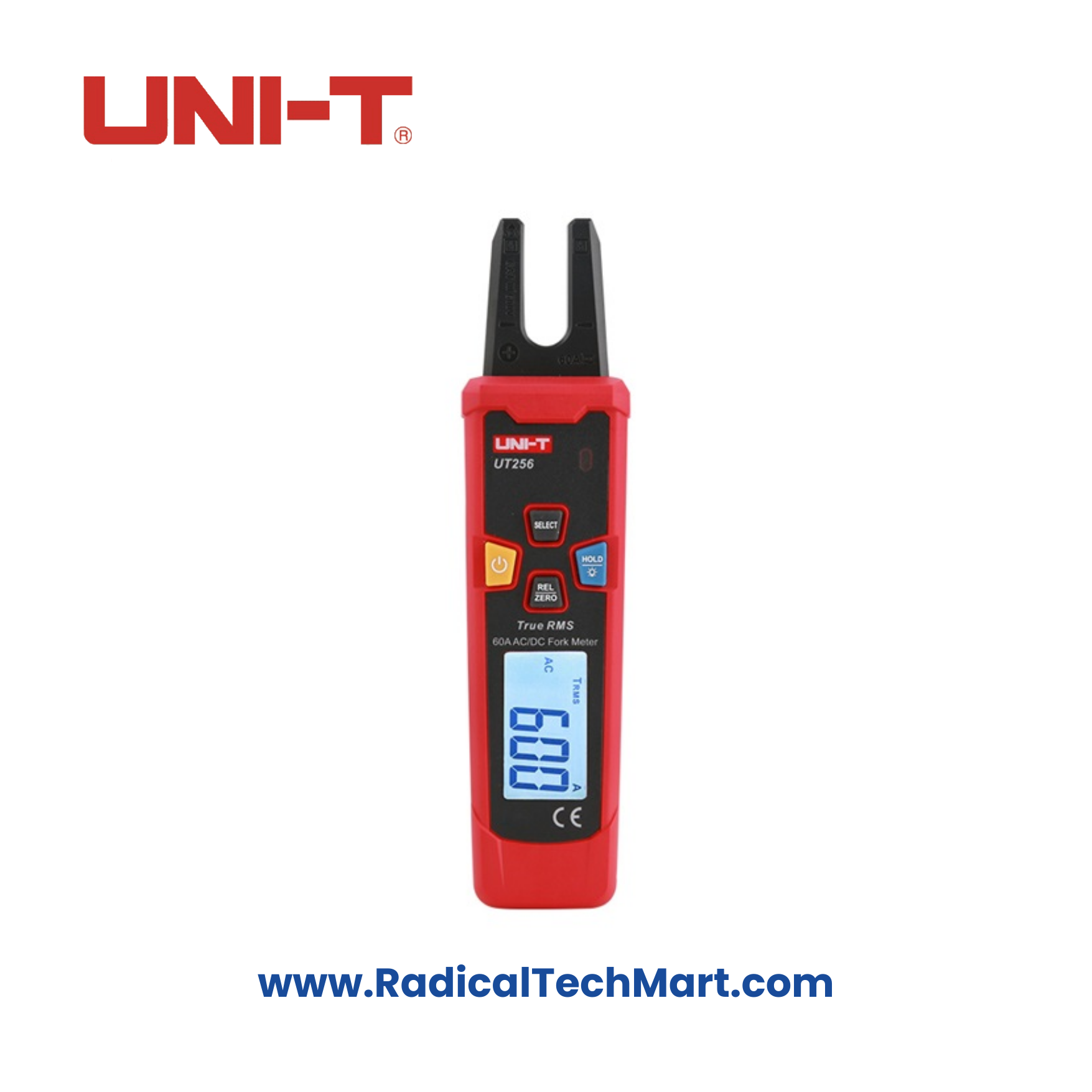

UNI-T UT256 60A AC/DC Fork Meter

UT256 Fork Meter: Features and Specifications

The UT256 is a CAT III 600V auto-ranging True RMS fork meter designed to measure up to 60A AC/DC current with precision. Its integrated non-contact voltage (NCV) sensor on the fork's tip enables effortless voltage detection, while its slim design ensures usability in tight spaces. Below are its key features and specifications:

Key Features

1. Current Measurement: Measures up to 60A for both AC and DC currents.
2. True RMS: Ensures accurate readings even in complex waveforms.
3. Jaw Opening: Slim 10mm fork for convenient cable measurements in narrow areas.
4. Integrated NCV Sensor: Detects voltage presence non-invasively.
5. User-Friendly Design: Bright backlight and intuitive interface enhance efficiency and convenience.
6. Zero Function: Simplifies comparative measurements.
7. Relative Mode: Allows for differential measurement relative to a reference value.
8. Data Hold: Retains the displayed reading for easy reference.
9. Audible and Visual Alarm: Alerts users in case of anomalies or unsafe conditions.
10. Low Battery Indicator: Ensures timely battery replacement.
11. Auto Power Off: Conserves battery life with a 30-minute inactivity shutdown.
12. Durability: Drop-tested for 1m height resilience.

Specifications

1. DC Current Measurement: Up to 60A with ±(2% + 5) accuracy.
2. AC Current Measurement: Up to 60A with ±(2% + 5) accuracy.
3. Safety Compliance: Rated for CAT III 600V environments.

Additional Features

• Operates on two 1.5V AAA batteries, accessible through a quick-access door for hassle-free replacement.
• Offers robust performance with its slim shell design ideal for industrial and electrical maintenance work.

Warranty as per the manufacturer's policy ensures reliability and support.
