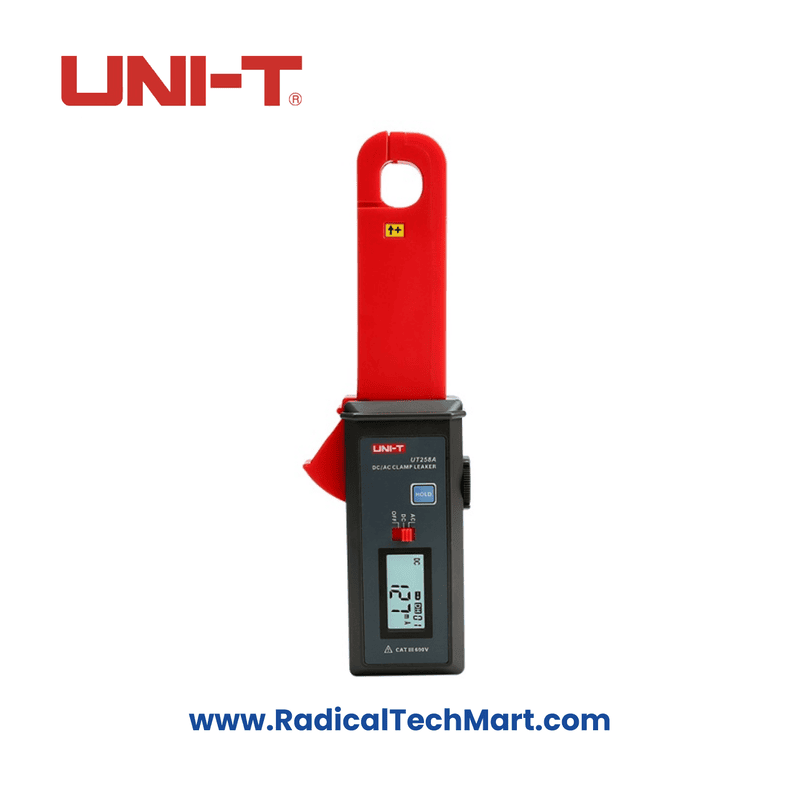

UNI-T UT258A AC/DC Leakage Clamp Meter- 60A
The UNI-T UT258A is a 10,000-count auto-ranging clamp meter designed for precise measurement of AC/DC leakage current. It is capable of measuring currents from 0mA to 60A with a resolution of 1mA for both AC and DC, making it ideal for a variety of applications. The instrument uses advanced CT and digital integration technology, ensuring high accuracy and stable performance. Its slender φ7mm jaw design allows for easy access in tight spaces with concentrated cables, such as electric power metering systems, high-speed rail systems, and automobile circuit maintenance.
Key features of the UT258A include:
- Current Measurement Range: 0mA to 60.0A AC/DC with a resolution of 1mA.
- Frequency Response: AC frequency range from 45Hz to 200Hz.
- Data Storage: Can store up to 99 groups of data.
- Zero Adjustment: Features a zero mode that removes residual magnetism to ensure accurate measurements.
- RS-232 Interface: Allows for data transmission via RS-232 for further analysis and monitoring.
- Display: 4-digit LCD display for clear reading of measurements.
- Jaw Size: Maximum wire diameter of 7mm, suitable for tight spaces.
- Auto Power Off: Automatically powers off after 5 minutes of inactivity to save battery life.
- Low Battery Indication: Displays a low battery alert when the voltage drops below 7.2V.
- Data Hold: Allows users to freeze the current reading on the display for later review.
- Power Supply: Operates on a 9V Zinc-manganese battery (6F22).
- Sampling Rate: Approximately 2 seconds per measurement.
- Size and Weight: The device weighs 180g (with batteries) and measures 168mm x 65mm x 34mm.
- Standard Accessories: Comes with batteries, monitoring software, and an RS232 cable.
The UT258A is designed for safe, non-contact measurements, which enhance operator safety. Its compact size and robust functionality make it suitable for both professional and industrial use, ensuring accurate and reliable results in a variety of electrical measurement scenarios. The product comes with a 1-year warranty.
