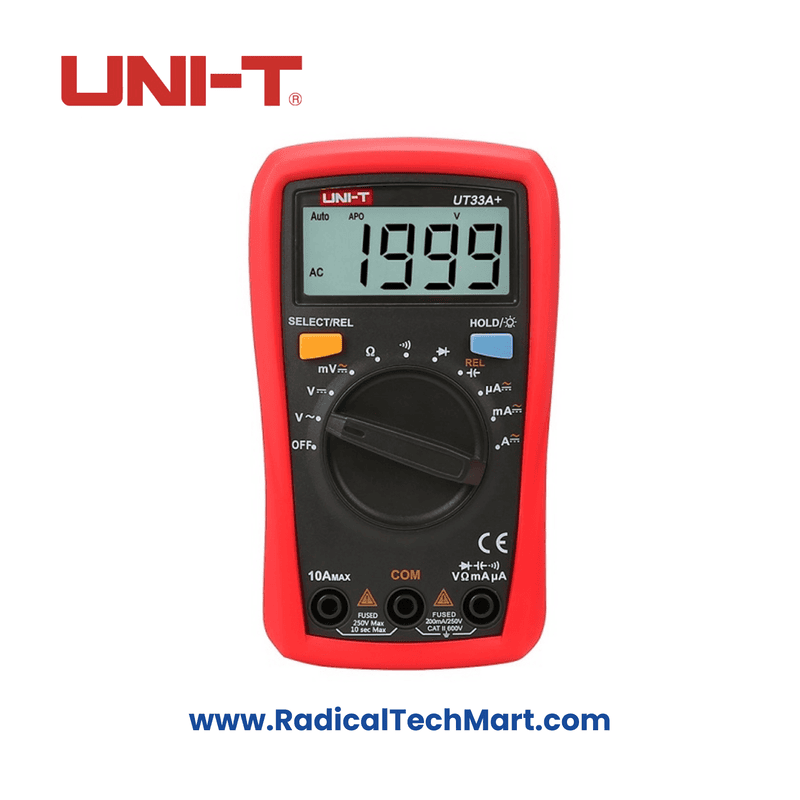

UNI-T UT33A+ Palm Size Multimeter
The new generation UT33+ series digital multimeters set a new standard in performance for entry-level models, designed to meet the demands of both industrial and everyday use. These multimeters feature an innovative industrial design that ensures durability, including a 2-meter drop resistance for added protection. The advanced LCD display layout enhances user experience, providing clear readings even in challenging environments.
Key features of the UT33+ series include:
- A clear and easy-to-read LCD display.
- A protective cover and a test lead hanging slot for convenience.
- Drop-proof design that withstands up to a 2-meter fall.
- Auto power-off and auto backlight-off functions to preserve battery life.
- A loud buzzer for continuity and diode tests.
- An ergonomically designed rotary switch for ease of use.
- Auto-ranging functionality for simplified measurements.
The multimeter supports a variety of measurement ranges, including:
- DC voltage from 200.0mV to 600V with an accuracy of ±(0.5% + 3).
- AC voltage from 200.0mV to 600V with an accuracy of ±(0.7% + 3).
- DC current from 200.0μA to 10.00A with an accuracy of ±(1.0% + 3).
- AC current from 200.0μA to 10.00A with an accuracy of ±(1.2% + 3).
- Resistance from 200.0Ω to 200.0MΩ with an accuracy of ±(1.0% + 2).
- Capacitance from 2.000nF to 2.000mF with an accuracy of ±(3% + 5).
Additional features include a maximum display of 1999, a diode test function, and a continuity buzzer. The multimeter also boasts a safety rating of CAT II 600V, making it safe for use in various environments. The product is powered by two AAA batteries (Zn-Mn) and is designed with a compact size (131mm x 95mm x 58mm) and lightweight of 473g.
Included in the package are the test leads and a user manual. The UT33+ series comes with a brand warranty for added peace of mind.
