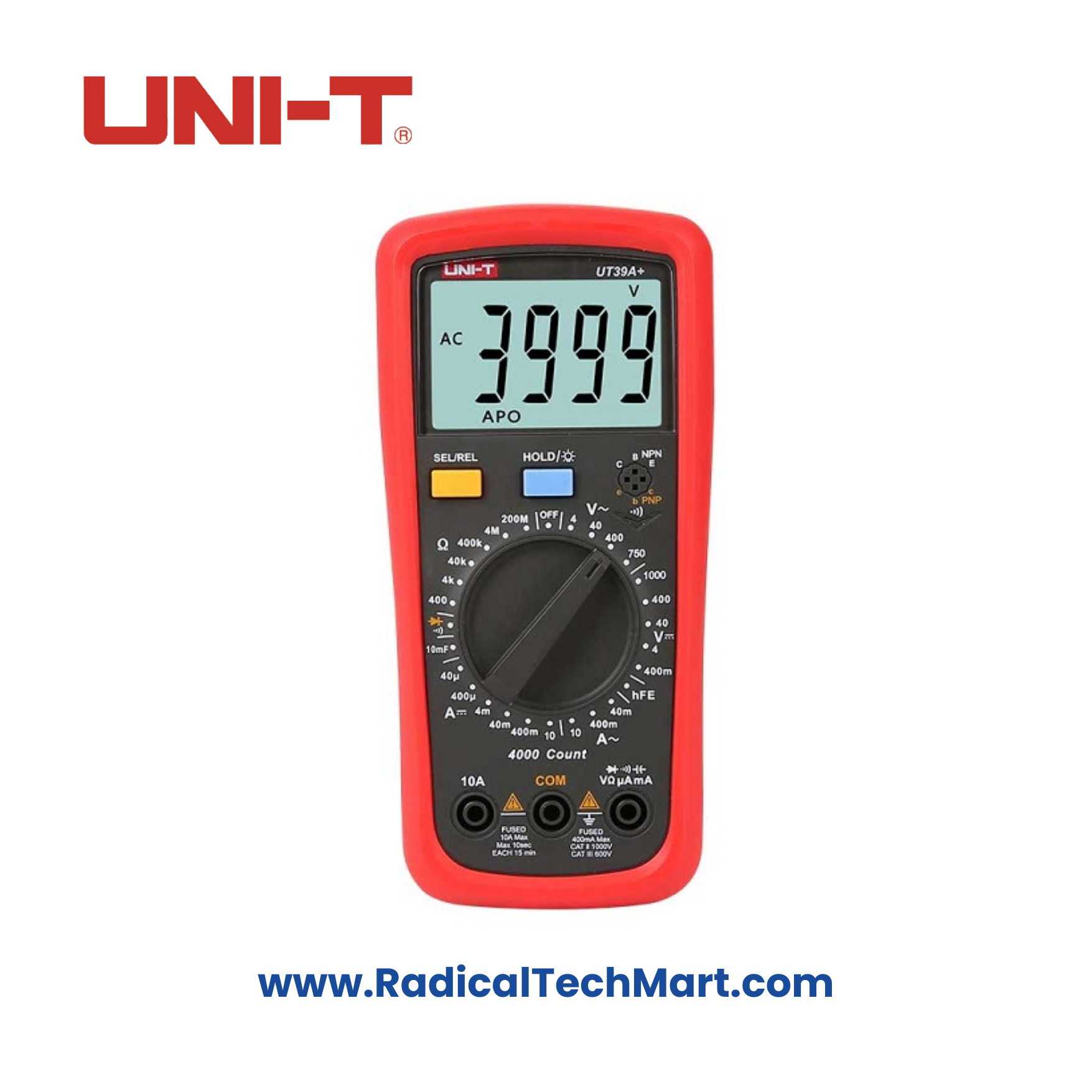

UNI-T UT39A+ Modern Digital Multimeter

The UT39A+ is a portable multimeter designed for the electric industry, featuring overvoltage and overcurrent alarm functions, along with high voltage protection to prevent misoperation. It complies with CAT II 1000V/CAT III 600V safety standards, ensuring safe and reliable use. Here are the key specifications and features:

1. Voltage Measurement:

   • DC Voltage: 1000V, with accuracy of ±(0.7% + 3)
   • AC Voltage: 750V, with accuracy of ±(0.8% + 3)

2. Current Measurement:

   • DC/AC Current: 10A, with accuracy of ±(1.5% + 3)

3. Resistance and Capacitance Measurement:

   • Resistance: 400.0Ω to 200.0MΩ, with accuracy ranging from ±(1.0% + 2) to ±(5% + 10)
   • Capacitance: 4.000nF to 10.00mF, with accuracy ranging from ±(4.0% + 10) to ±(10%)

4. Other Functions:

   • hFE Test
   • Diode Test
   • Continuity Test

5. Additional Features:

   • Display count: 4000
   • Low battery indication
   • Data hold function
   • Relative mode
   • Auto power off
   • Backlight for easy viewing in low-light conditions

6. Temperature Range:

   • Operating temperature: 0°C to 40°C

7. Safety and Durability:

   • Safety rating: CAT II 1000V/CAT III 600V
   • Product color: Red and grey
   • Net weight: 330g
   • Dimensions: 175 x 83 x 53mm

8. Packaging:

   • Comes in a gift box with a manual for easy use.

This multimeter offers excellent reliability and precision, ideal for use in a range of electrical measurements. It also features brand warranty for added peace of mind.
