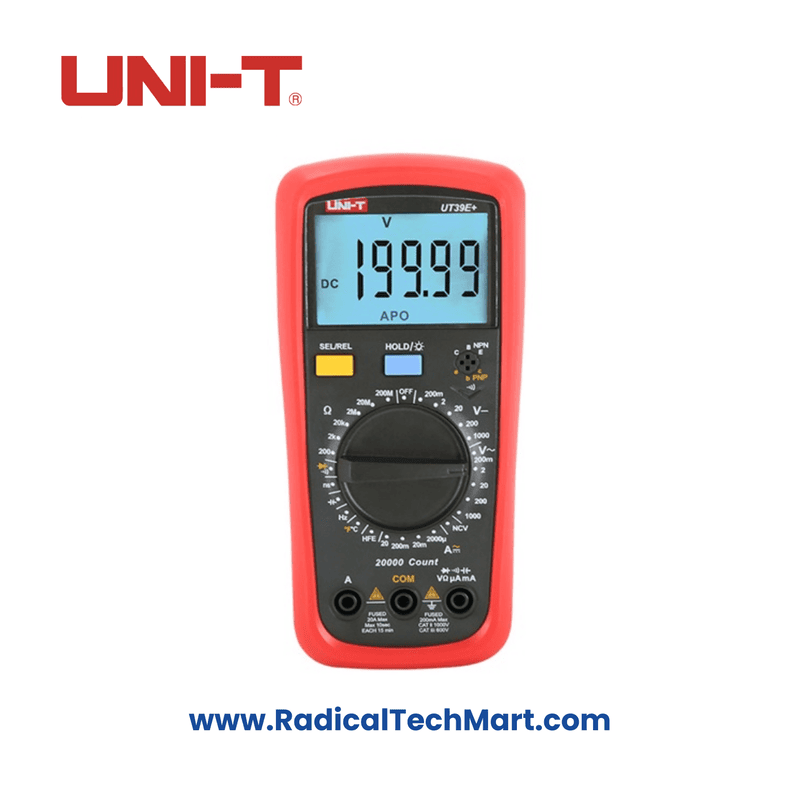

UNI-T UT39E+ Digital Multimeter

The UT39+ series digital multimeters are portable devices designed for use in the electrical industry. They are equipped with overvoltage and overcurrent alarms, as well as high voltage protection, which is activated during faulty operation. The UT39C+ model is especially suitable for HVACR maintenance due to its temperature measurement feature. These multimeters are designed according to CAT II 1000V and CAT III 600V safety standards.

Key Features:

• DC voltage measurement up to 1000V
• AC voltage measurement up to 750V
• DC and AC current measurement up to 10A
• Resistance and capacitance measurement
• hFE and diode/continuity tests
• Non-contact voltage (NCV) detection

Specifications:

• Voltage Measurement:
  • DC: 200mV, 2V, 20V, 200V, 1000V (±(0.05%+3))
  • AC: 200mV, 2V, 20V, 200V, 1000V (±(0.5%+10))
• Current Measurement:
  • DC: 2000μA, 20mA, 200mA, 2A, 20A (±(0.5%+5))
  • AC: 2000μA, 20mA, 200mA, 2A, 20A (±(0.8%+10))
• Resistance Measurement: 200Ω, 2kΩ, 20kΩ, 2MΩ, 20MΩ, 200MΩ (±(0.3%+2))
• Capacitance Measurement: Up to 2000μF (±(4%+20))
• Frequency Measurement: 10Hz ~ 2MHz (±(0.1%+3))
• Temperature Measurement: -40℃ ~ 1000℃ (±(1%+5)), or -40℉ ~ 1832℉ (±(1.5%+5))
• Conductance: 0.1nS ~ 100nS (±(1%+3))
• Display Count: 4000 (UT39E+ and UT39C+) or 20000 (UT39+)

Warranty: The product warranty is as per the brand policy.
