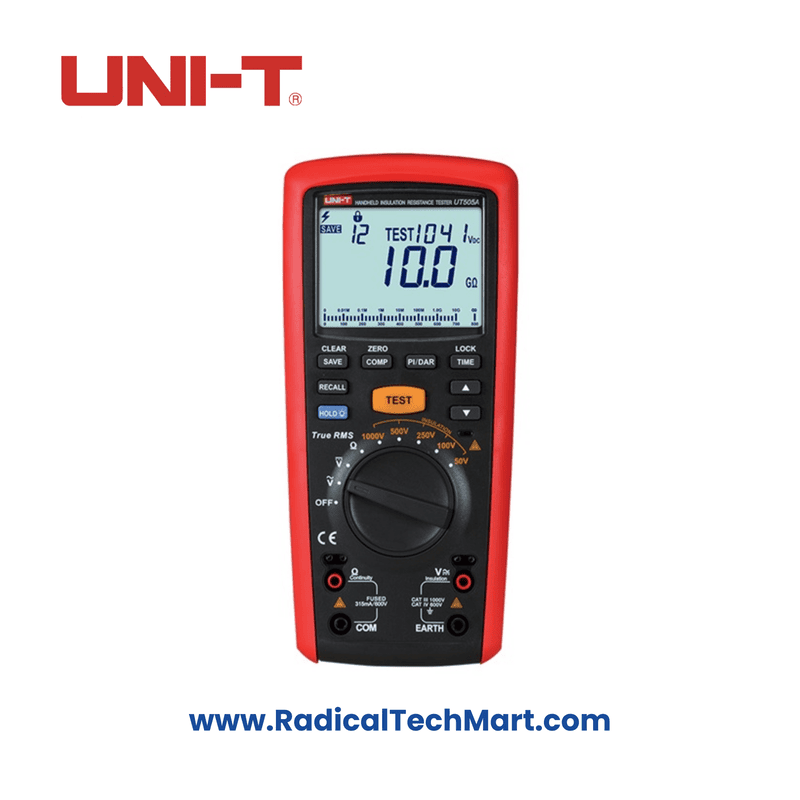

UNI-T UT505A Insulation Meter – 1kV 20GΩ

Product Summary:
The UNI-T UT505A is a handheld True RMS insulation resistance tester that combines the features of a digital multimeter and insulation meter. It supports multiple test voltages, resistance up to 20GΩ, PI & DAR calculation, and high-voltage alarms, making it ideal for professional field and panel work.

Key Features:

• True RMS insulation meter with multimeter functions

• Test voltages: 50V/100V/250V/500V/1000V

• Insulation resistance up to 20GΩ

• PI (Polarization Index) and DAR (Dielectric Absorption Ratio) calculation

• High voltage output alarm

• 99-group data storage

• Auto power-off & backlit LCD

• Short circuit current <2mA

• Measures AC/DC voltage up to 600V



Applications:

• Electrical panel testing

• Industrial machine maintenance

• Insulation health check for motors and transformers

• Field troubleshooting in power systems

• Preventive electrical audits



Product Benefits:

• Combines insulation testing and multimeter in one device

• Wide range of resistance and voltage testing

• Enhances insulation monitoring with DAR/PI ratio

• Increases safety with high-voltage warning

• Compact and portable for on-site use



FAQs:

Q1. What is the maximum insulation resistance it can measure?
A1. It can measure insulation resistance up to 20GΩ at 1000V.

Q2. Can UT505A be used as a regular multimeter?
A2. Yes, it functions as a digital multimeter, measuring both AC and DC voltage up to 600V and low resistance up to 20kΩ.

Q3. What is the purpose of PI and DAR in insulation testing?
A3. PI and DAR help evaluate insulation quality over time, providing early warning signs of deterioration.
