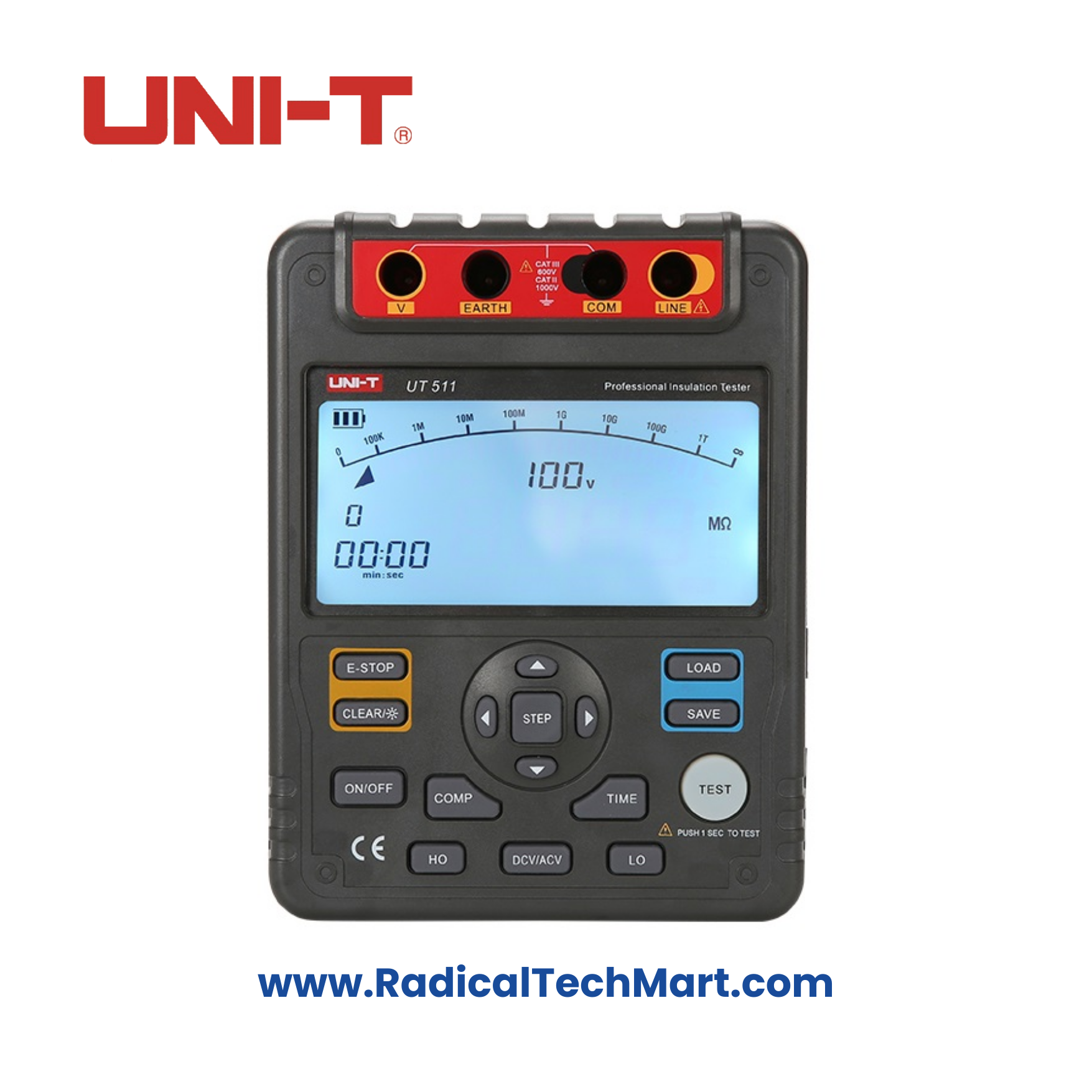

Uni-T UT511 Insulation Resistance Tester 1KV / 10GΩ

Product Summary:
The Uni-T UT511 Insulation Resistance Tester is ideal for testing insulation resistance of large electrical equipment. It supports up to 1000V test voltage, 10GΩ resistance, and offers advanced features like PI, DAR, low resistance, voltage measurements, and analog bar graph display for precise diagnostics.

Key Features:

• Test Voltage: 100V/250V/500V/1000V

• Resistance Range: Up to 10GΩ

• AC Voltage Range: Up to 750V

• DC Voltage Range: Up to 1000V

• Auto Power Off, Auto Range

• Data Storage Function

• High Voltage Indication with Timer

• Large LCD with 30-segment analog bar graph

• Operates on 8x LR14 1.5V Batteries



Applications:

• Testing insulation resistance in large transformers

• High-voltage motor diagnostics

• Generator insulation testing

• Preventive maintenance for industrial electrical systems

• Safety compliance in panel boards



Product Benefits:

• Ensures equipment safety by accurate insulation resistance testing

• Compact and portable with 1.2kg weight

• Reliable readings with large display and analog bar graph

• Multiple voltage test settings to suit varied applications

• Durable construction for harsh field environments



FAQs:

Q1: What is the maximum test voltage supported by UT511?
A1: UT511 supports a maximum test voltage of 1000V for insulation resistance testing.

Q2: Can UT511 measure both AC and DC voltages?
A2: Yes, it can measure up to 750V AC and 1000V DC.

Q3: Is it suitable for testing generators and high-voltage motors?
A3: Absolutely. It is specifically designed for testing insulation in high-voltage industrial equipment.
