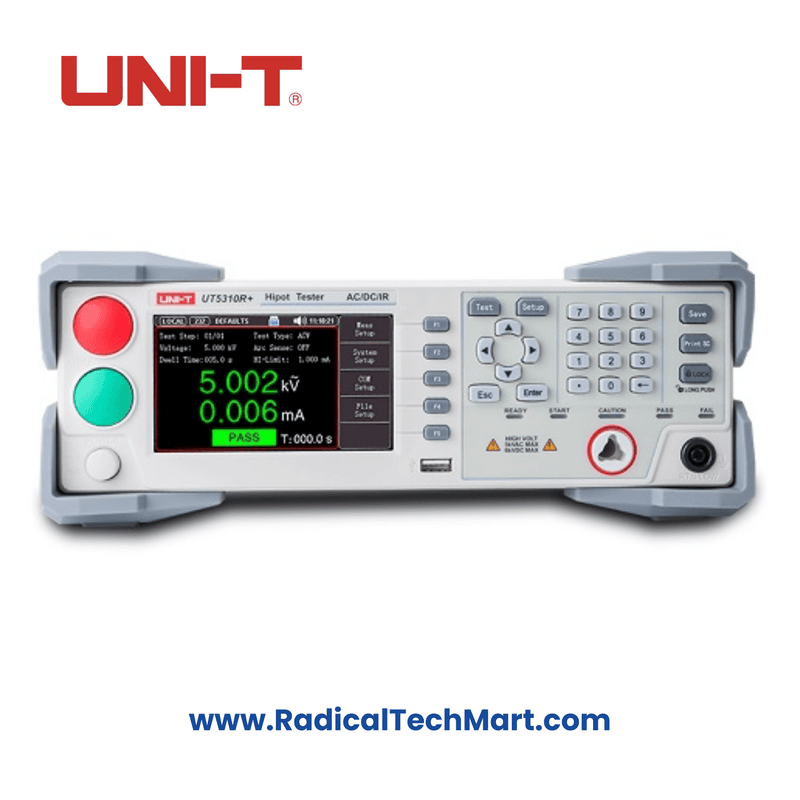

UNI-T UT5310R+ Hipot Tester

The UT5300+ series is a versatile instrument designed to integrate multiple testing functions for electrical strength (AC/DC withstand voltage) and insulation resistance. It is ideal for the safety performance inspection of household appliances, transformers, electrical equipment, and various components. The key features of the UT5300+ series include:

• Channels: 1
• AC Voltage Range: 0.050kV to 5.000kV
• DC Voltage Range: 0.050kV to 6.000kV
• AC Current Range: 0.001mA to 10mA
• DC Current Range: 0.001mA to 5.00mA
• Insulation Resistance Range: 0.1MΩ to 10GΩ
• Display: Easy-to-read 4.3" TFT LCD
• Connectivity Options: RS232C, LAN, RS485 (optional)
• Additional Features:
  • Rich interface options
  • Intelligent judgment functions for accurate testing results
  • File management capabilities for easy data handling
  • Multiple test modes for versatile applications
  • User-friendly operation for convenience
  • Insulation resistance (IR) measurement functionality

The UT5300+ series offers a 3-year warranty, ensuring reliability and durability for long-term use in a variety of electrical safety testing applications.
