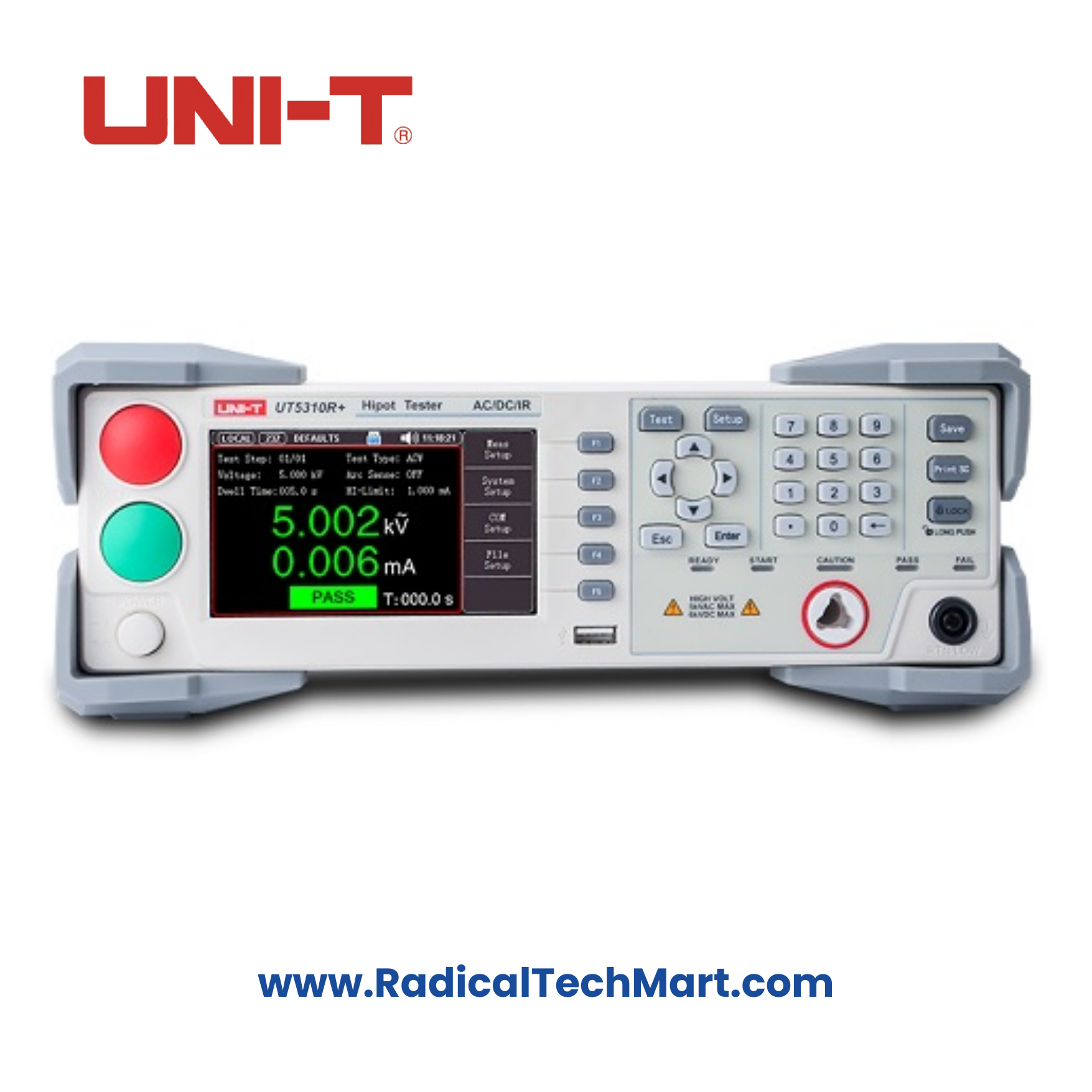

UNI-T UT5310R+ Hipot Tester

Product Summary:
The UNI-T UT5310R+ is a high-performance electrical safety tester offering precise AC/DC withstand voltage and insulation resistance testing. With a 4.3" TFT LCD display, intuitive controls, and multi-interface connectivity, it's perfect for industrial labs and quality control environments.

Key Features:

• AC Hipot: 0.050kV to 5.000kV

• DC Hipot: 0.050kV to 6.000kV

• Insulation Resistance: 0.2MΩ to 10GΩ

• AC Current: 0.001mA to 10mA

• DC Current: 0.001mA to 5.00mA

• 4.3'' TFT LCD Display

• Intelligent pass/fail judgment

• RS232C, LAN, and optional RS485 connectivity

• Multiple test modes

• File management support

• 3-Year Warranty



Applications:

• Testing of household appliances

• Transformer insulation safety tests

• Quality inspection in production lines

• Electrical equipment safety audits

• R&D lab testing and validation



Product Benefits:

• Ensures high-level safety compliance in manufacturing

• Fast and reliable insulation and voltage strength measurement

• Rich interface options for industrial integration

• Simplifies testing with intuitive user interface

• Portable and durable design suitable for production floors



FAQ:

Q1: What is the difference between AC and DC Hipot in this tester?
A1: AC Hipot checks insulation performance under alternating current stress, while DC Hipot applies constant voltage—both essential for comprehensive safety tests.

Q2: Can this device store test results?
A2: Yes, it supports file management for storing and retrieving test data, useful for documentation and audits.

Q3: Is the tester suitable for transformer testing?
A3: Absolutely. The UT5310R+ can test both insulation resistance and withstand voltage, which are critical parameters for transformer safety evaluation.
