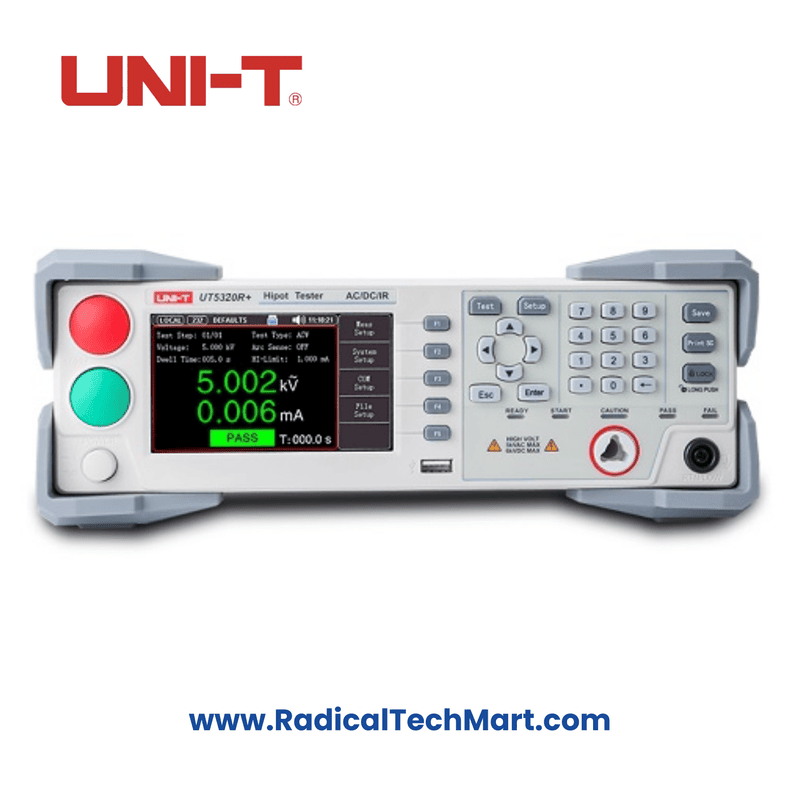

UNI-T UT5320R+ Hipot Tester

The UT5300+ series is a versatile instrument that integrates multiple testing functions, including electrical strength (AC/DC withstand voltage) and insulation resistance. It is widely used for safety performance inspections of household appliances, transformers, electrical equipment, and components.

Key Features of the UT5300+ series:

• AC Voltage: Ranges from 0.050 kV to 5.000 kV
• DC Voltage: Ranges from 0.050 kV to 6.000 kV
• AC Current: Ranges from 0.001 mA to 20 mA
• DC Current: Ranges from 0.001 mA to 10.00 mA
• Insulation Resistance: Measures from 0.1 MΩ to 10 GΩ
• Display: Features a clear 4.3'' TFT LCD screen for easy readability
• Connectivity: Includes RS232C, LAN, and optional RS485 for flexible integration with other devices
• Measurement Functions: Offers Insulation Resistance (IR) measurement and intelligent judgment for enhanced testing accuracy
• File Management: Equipped with comprehensive file management features for organizing test results
• Ease of Use: Designed with an intuitive interface, making operation simple and user-friendly
• Test Modes: Includes multiple test modes to cater to various testing needs
• Warranty: Comes with a 3-year warranty for added reliability

This instrument ensures high-precision testing with user-friendly functions for enhanced testing efficiency in various industrial applications.
