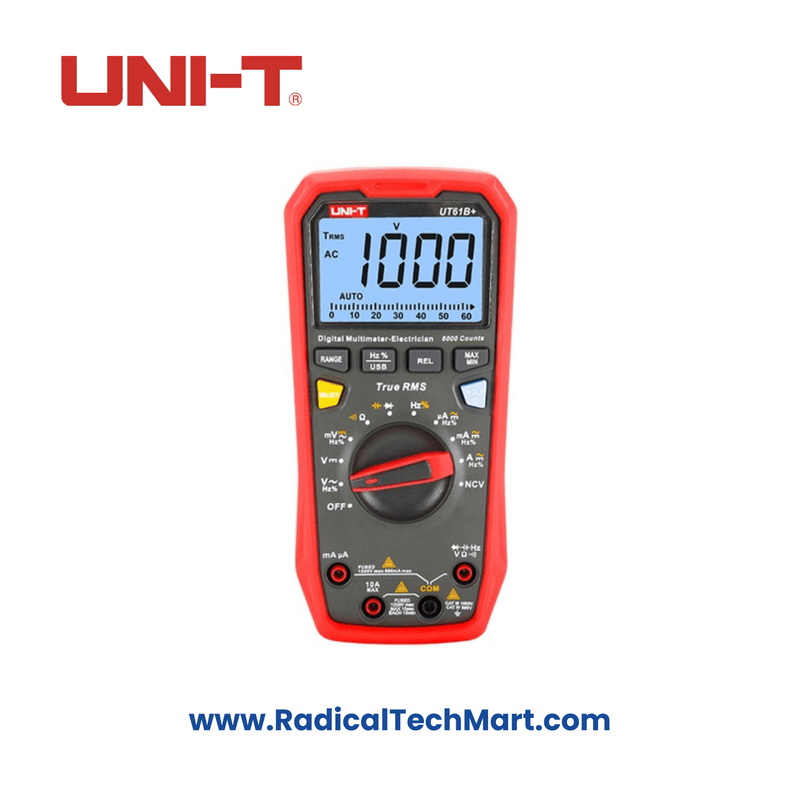

UNI-T UT61B+ True RMS Digital Multimeters

The UT61+ series is a reliable line of True RMS digital multimeters with a display count of 6000 (UT61B+/D+), capable of measuring up to 1000V AC/DC. These meters are equipped with audible and visible alarms, providing warnings when measuring high voltage or current, ensuring safety.

Key Features:

• True RMS: Accurate measurement of both sinusoidal and non-sinusoidal signals.
• Data Hold/Backlight: Allows for freezing the display and reading in low light.
• Max/Min/Relative Mode: Tracks maximum and minimum readings, and allows for relative measurements.
• USB Communication: Enables data transfer for further analysis or storage.
• Input Protection: Safeguards the multimeter against overloads.
• Diode/Continuity Test: Tests for the presence of diodes and continuity in circuits.
• NCV (Non-Contact Voltage): Provides audible and visual alarms for detection of live circuits.

Specifications:

• AC Voltage: Up to 1000V, with accuracy of ±(1% + 3).
• DC Voltage: Up to 1000V, with accuracy of ±(0.5% + 3).
• AC Current: Up to 10A, with accuracy of ±(1.2% + 5).
• DC Current: Up to 10A, with accuracy of ±(1% + 2).
• Resistance: Up to 60MΩ, with accuracy of ±(1% + 2).
• Capacitance: Up to 60mF, with accuracy of ±(3% + 5).
• Frequency: Up to 10MHz, with accuracy of ±(0.1% + 4).
• Duty Cycle: 0.1% to 99.9%, with accuracy of ±(2% + 5).
• Display Count: 6000.
• Bandwidth: 40Hz to 500Hz.
• Analog Bar: 31 segments.

Warranty: As per the brand's policy.
