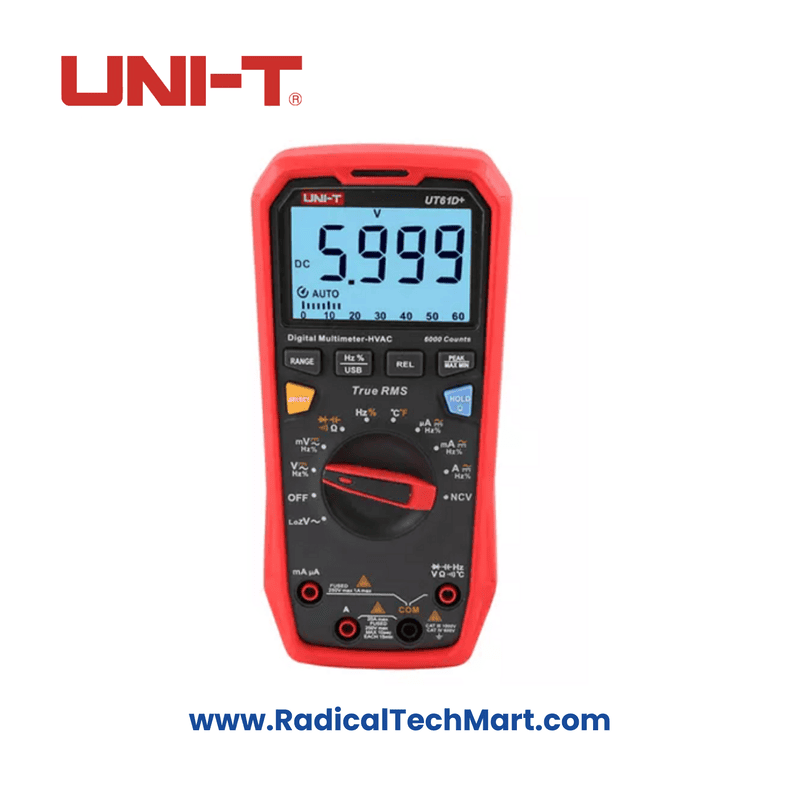

UNI-T UT61D+ True RMS Digital Multimeters- USB

The UT61+ series are reliable true RMS digital multimeters with a 6000 display count, capable of measuring up to 1000V AC/DC. They are designed with several advanced features to enhance usability and safety. These include an audible and visible alarm system, which provides warnings when measuring high voltage, current, or temperature.

Key Features:

• True RMS measurement for accurate results.
• Data hold and backlight functions for easy reading.
• Max/Min/Relative mode for detailed analysis.
• USB communication for data transfer.
• Input protection to ensure safety during use.
• Diode and continuity testing functions for circuit diagnostics.
• Non-contact voltage (NCV) detection with audible and visual alarms.
• Low impedance AC voltage (LoZ AC V) measurement.
• Peak hold function to capture peak values.
• Analog bar display for real-time monitoring.

Specifications:

• AC Voltage: Up to 1000V with an accuracy of ±(1% + 3).
• DC Voltage: Up to 1000V with an accuracy of ±(0.5% + 3).
• AC Current: Up to 20A with an accuracy of ±(1.2% + 5).
• DC Current: Up to 20A with an accuracy of ±(1% + 2).
• Resistance: Up to 60MΩ with an accuracy of ±(1% + 2).
• Capacitance: Up to 60mF with an accuracy of ±(3% + 5).
• Frequency: Up to 10MHz with an accuracy of ±(0.1% + 4).
• Duty Cycle: 0.1%~99.9% with an accuracy of ±(2% + 5).
• Temperature: -40℃ to 1000℃ (or -40℉ to 1832℉) with an accuracy of ±(1% + 3) for Celsius and ±(1% + 6) for Fahrenheit.
• Display count: 6000 counts.
• Bandwidth: 40Hz~1kHz.
• LoZ AC Voltage and Peak Hold functionality included.

General Characteristics:

• Powered by four 1.5V batteries (R03).
• Product weight: 350g.
• Dimensions: 190mm x 90mm x 50mm.
• Standard accessories: Battery, gold-plated test leads, USB cable, and temperature probe (UT61D+).
• Warranty: 1 Year.

This multimeter is ideal for professionals who require precision and safety when measuring electrical parameters.
