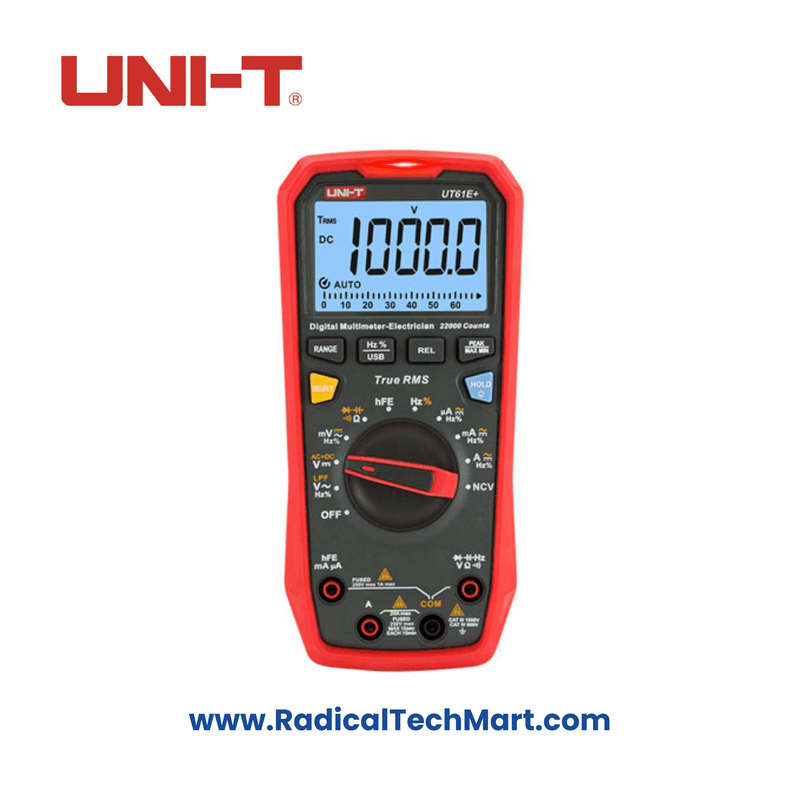

UNI-T UT61E+ True RMS Digital Multimeter

The UT61E+ series are reliable true RMS digital multimeters with a display count of 22,000, capable of measuring up to 1000V AC/DC. This series is equipped with both audible and visible alarms to provide warnings when measuring high voltage or current.

Key Features:

• True RMS measurement for accurate results
• Data hold and backlight functions for convenience
• Max/Min/Relative mode for enhanced measurement flexibility
• USB communication for data transfer
• Input protection to ensure user safety
• Diode and continuity tests for basic electrical testing
• Non-contact voltage (NCV) detection with audible and visual alarms
• Low-pass filter (LPF) for AC voltage measurements
• ACV + DCV measurement capabilities
• Transistor hFE testing
• Peak Hold feature to capture peak values
• Analog bar for visual measurement reference (46 segments)

Specifications:

• AC Voltage: 1000V ±(0.8%＋10)
• DC Voltage: 1000V ±(0.05%＋5)
• AC Current: 20A ±(0.8%＋10)
• DC Current: 20A ±(0.5%＋10)
• Resistance: 220MΩ ±(0.5%＋10)
• Capacitance: 220mF ±(3%＋5)
• Frequency: 220MHz ±(0.01%＋5)
• Duty Cycle: 0.1%~99.9% ±(2%＋5)
• Bandwidth: 40~10kHz
• Power Supply: 1.5V battery (R03) x 4
• Product Size: 190mm x 90mm x 50mm
• Net Weight: 350g

Standard accessories include a battery, gold-plated test leads, USB cable, multi-purpose socket, and an English manual. Optional accessories such as Bluetooth and APP integration are available.

Safety ratings are CAT III 1000V and CAT IV 600V.

Warranty: 1 year as per UNI-T policy.
