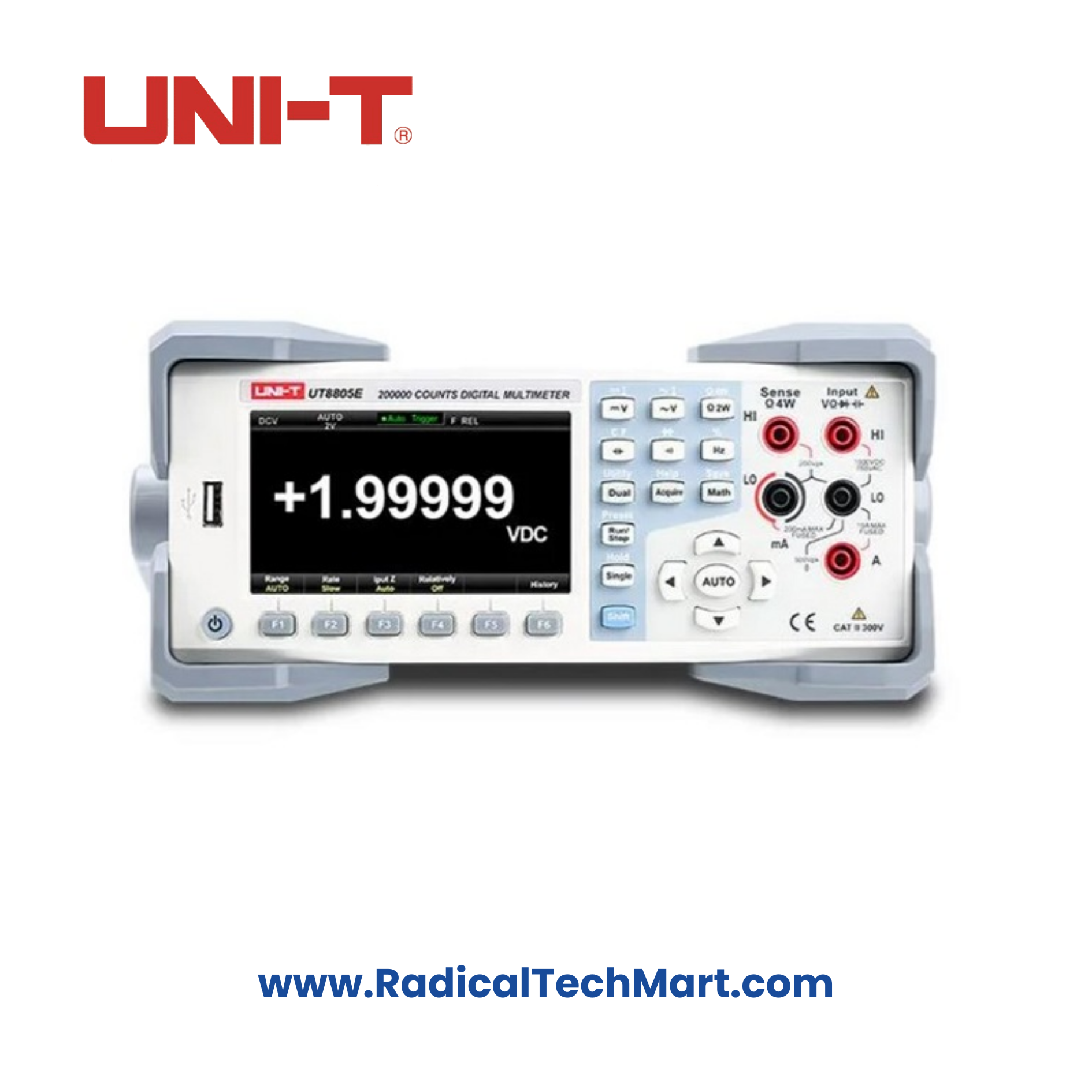

UNI-T UT8805E Benchtop Multimeter

Product Summary:
The UNI-T UT8805E is a high-performance 5½-digit benchtop digital multimeter designed for advanced lab measurements. Offering ±0.01% accuracy, 5k rdgs/s sampling rate, and rich mathematical functions like trend chart, histogram, dBm/dB, and Pass/Fail analysis, it is ideal for quality control, calibration, and electronic design.

Key Features:

• 5½-digit (200,000 counts) resolution

• Up to 5,000 readings/sec sampling rate

• AC voltage up to 750V and current up to 10A

• DC voltage up to 1000V and current up to 10A

• Built-in thermocouple cold junction compensation

• Arbitrary sensor measurement support

• True RMS with AC+DC readings

• Multiple math functions: Min/Max/Avg, Std Dev, Hold, Histogram, Trend, dB/dBm

• 1GB internal NAND flash, 10k data records

• Interfaces: USB, RS-232, GPIB, LAN (IEEE 488.2, SCPI, VXI-11 compliant)

• 4.3” TFT color LCD screen



Application:

• R&D labs and educational institutions

• Electronics product development

• Calibration laboratories

• Maintenance and troubleshooting

• Quality assurance testing



Product Benefits:

• Delivers high-speed, high-resolution, and highly accurate readings

• Flexible sensor support and advanced data logging

• Multi-interface compatibility for automated testing

• Robust 3-year warranty with accessories included



FAQs

Q1. What makes the UT8805E ideal for lab environments?
A1. It offers high-resolution readings, built-in data storage, and interfaces that support lab automation and in-depth analysis, ideal for precision applications.

Q2. Can it measure temperature using thermocouples?
A2. Yes, it supports both thermocouple and thermal resistance sensors with cold junction compensation.

Q3. Is software or remote access supported?
A3. Yes, it supports remote interfacing via USB, LAN, GPIB, and RS-232 using SCPI and VXI-11 protocols.
