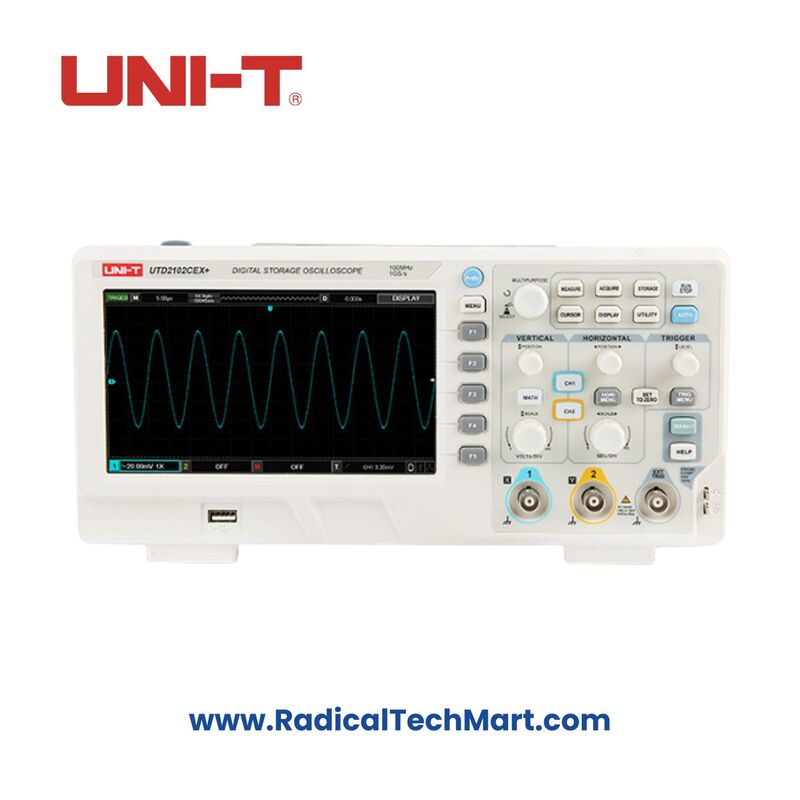

UNI-T UTD2102CEX+ Digital Storage Oscilloscope- 100Mhz, 2 Channel

The CEX+ series oscilloscope is designed to enhance work efficiency with its advanced features, including a rich set of trigger modes, 34 automatic parameter measurements, and a variety of mathematical operations. These upgrades optimize panel operations and enable effortless handling of complex signal measurements.

Key Features:

• Dual Channel, 100 MHz Bandwidth
• Real-Time Sample Rate: 1 GSa/s
• Memory Depth: 64 kpts
• Waveform Acquisition Rate: ≥5000 wfms/s
• Display Range: 8 div x 16 div
• New Autoset Strategy: Easily adapts to complex test scenarios
• HD Color LCD Screen
• Multi-Language Support: Available in 9 languages to cater to users worldwide
• Multi-Frequency Square Wave Output: Includes standard frequencies of 10 Hz, 100 Hz, 1 kHz, and 10 kHz
• Various Parameter Measurement and Waveform Recording Functions

Technical Specifications:

• Channels: 2
• Bandwidth: 100 MHz
• Sample Rate: 1 GS/s
• Rise Time: ≤3.5 ns
• Memory Depth: 64 kpts
• Waveform Acquisition Rate: ≥5000 wfms/s
• Vertical Sensitivity (V/div): 1 mV/div to 20 V/div
• Timebase Range (s/div): 2 ns/div to 50 s/div
• Trigger Modes: Edge, Pulse, Alternate, Video
• Interfaces: USB OTG

Warranty:

• 3 Years
