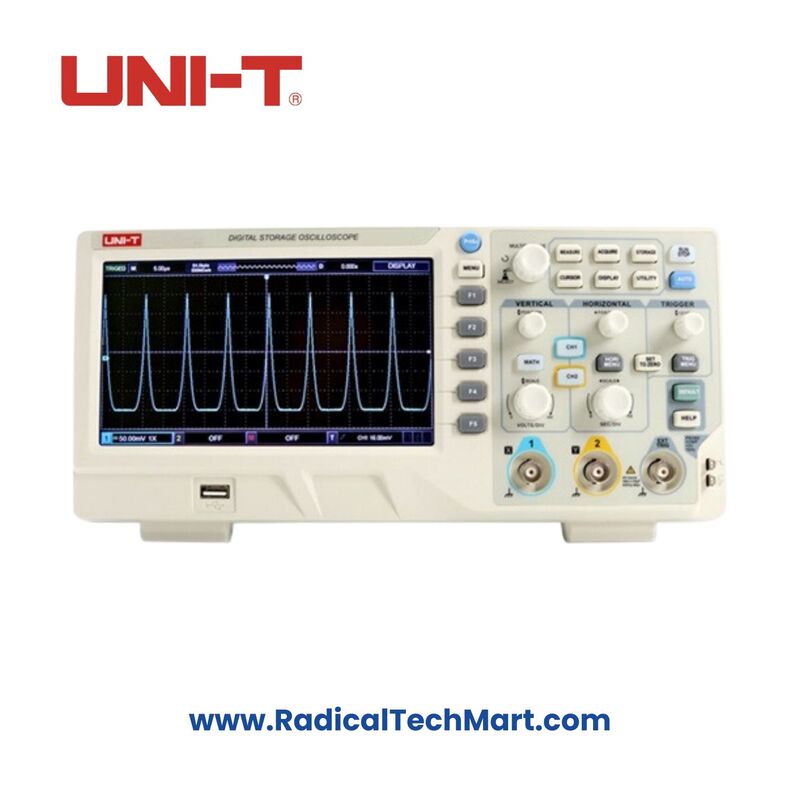

UNI-T UTD2102CL+ Digital Storage Oscilloscope

The UTD2000CL+ Series is a market-proven, economical digital oscilloscope, designed to meet the essential needs of basic testing with excellent technical specifications. Featuring a clear and intuitive front panel design, this oscilloscope ensures ease of operation and aligns with traditional instrument usage habits.

Key Specifications:

• Bandwidth: 100 MHz
• Measurement Channels: 2 analog channels
• Real-Time Sampling Rate: 500 MS/s
• Storage Depth: 64 kpts
• Waveform Capture Rate: 5,000 wfms/s
• Auto Measurement: 34 waveform types
• Abundant Trigger Options: Edge, Pulse Width, Slope, Video, and Alternating triggers
• Display: 7-inch WVGA (800 x 480) TFT LCD, super-wide screen with a clear display
• Peripheral Interfaces: Standard USB Host, USB Device, EXT Trig, Pass/Fail
• New Autoset Function: Customized auto strategy for enhanced oscilloscope teaching
• Dimensions: 306 mm (W) x 138 mm (H) x 124 mm (D)
• Weight:
  • Excluding package: 2.5 kg
  • Including package: 3 kg
• Power:
  • Voltage: 100V-240V, 50/60 Hz
  • Power Consumption: 100 VA max
  • Fuse: F 1.6A, 250V

Warranty:

• 1 Year
